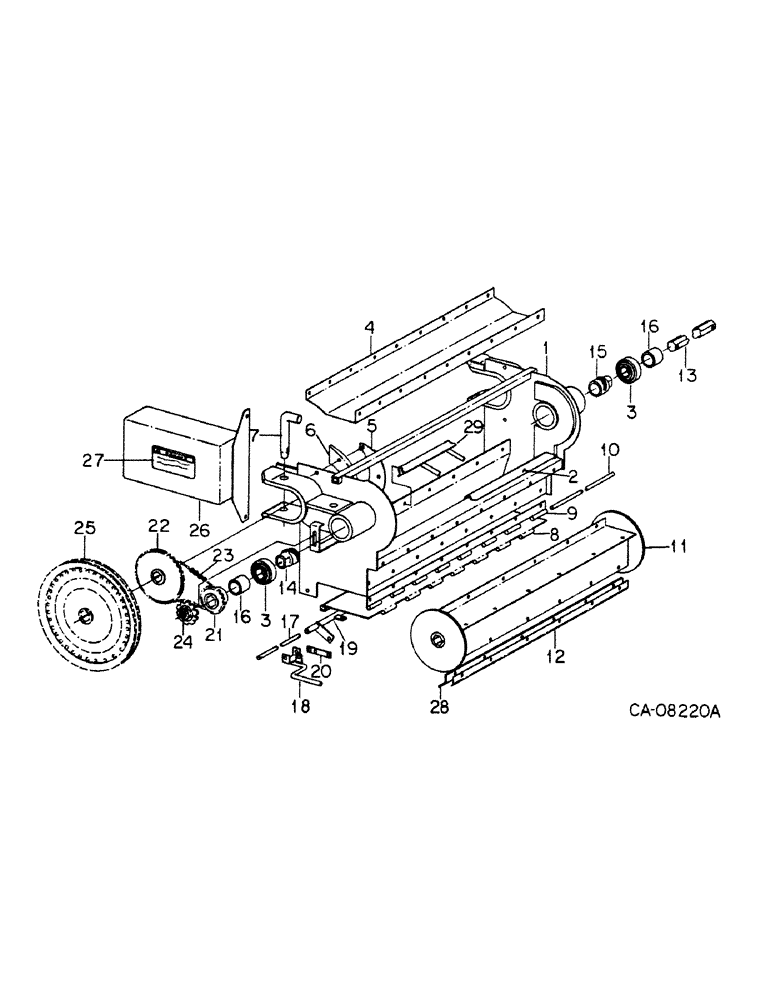

Запчасти Case IH 1420 (33-06) - FEEDER, ROCK TRAP (13) - FEEDER

1

1327629C3

HOUSING ASSY.

HOUSING ASSY, rock trap, replaces 1320164C2 by also ordering cover 1327925C1, handle 1324752C1 and support 1324742C1, Includes: bolt, nut and washer

1шт.

See SB 032 87 - Reversed Rocktrap door latch

1шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

446363

WASHER,5/16"

.375 x .875 x .064

1шт.

2

1320279C1

ANGLE

rock trap wear, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

BEARING ASSY, rock trap beater

1шт.

4

1327925C1

COVER

beater housing, replaces 1320178C1, Includes: nuts and screw

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

1320254C1

PLATE

ASSY, seal back up, Includes: nut

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

6

195202C1

SEAL

feeder

2шт.

7

192533C2

ROD

PIN, feeder pivot, Includes: pin

2шт.

486830R1

COTTER PIN

PIN, Q.A., REPLACES 520175R1

1шт.

8

1320152C1

DOOR

ASSY, rock trap

1шт.

9

1320154C1

HINGE

rock trap door, Includes: screw and nut

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

1320149C1

ROD

trap door hinge

1шт.

11

1319834C1

BEATER

ASSY, rock trap feed, replaces 1320156C1 and 1324124C1

1шт.

12

1324438C1

SUPPORT

EXTENSION, rock trap blade

3шт.

See SB 018 87 - Rock trap Beater Shaft bearing failures.

1шт.

12

1320921C2

BLADE

rock trap, replaces 1316043C91

1шт.

13

1320168C3

BAR

SHAFT, rock trap beater, Includes: pin and washers

1шт.

137323

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

1шт.

20705R1

WASHER

1.781 x 2.500 x .054

1шт.

609376R1

WASHER

1.781 x 2.500 x .105

1шт.

14

1320268C1

SPACER

feeder sprocket LH

1шт.

15

1320269C1

SPACER

feeder sprocket RH

1шт.

16

1320167C2

SPACER

1.88 x 2.125 x 1.52

2шт.

17

1320151C1

ROD

trap door latch, Includes: pin

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

18

1320204C1

HANDLE

rock trap door LH, Includes: bolt and nut

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2 cad p/t lock type 5

1шт.

19

1320148C1

TUBE,560, 180 mm Length

rock trap door, Includes: bolt and nut

1шт.

174608C2

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

20

1320128C1

LINK

rock trap connecting, Includes: bolt and nut

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

1шт.

21

1320095C3

DRIVE SPROCKET

SPROCKET ASSY, driven, 16T

1шт.

The 1400 series combines had either a 3 or 4 blade beater, depending on production date and parts replacement.

1шт.

22

1320095C3

DRIVE SPROCKET

SPROCKET ASSY, driven, 16T

1шт.

The 1400 series combines had either a 3 or 4 blade beater, depending on production date and parts replacement.

1шт.

22

1320110C3

SPROCKET

ASSY, driven, 32T

1шт.

The 1400 series combines had either a 3 or 4 blade beater, depending on production date and parts replacement.

1шт.

23

CHAIN ASSY, used w/2 1320095C1 sprockets, use 41 links from 10 ft. roll marked 1793D and 1 connecting link 1786D

1шт.

The 1400 series combines had either a 3 or 4 blade beater, depending on production date and parts replacement.

1шт.

1786D

LINK

#60H single pitch connecting

1шт.

23

CHAIN ASSY, extension, used w/1 1320095C1 sprocket and 1 1320110C1 sprocket, use 7 links from 10 ft. roll marked 1793D and 1 connecting link 1786D

1шт.

The 1400 series combines had either a 3 or 4 blade beater, depending on production date and parts replacement.

1шт.

1786D

LINK

#60H single pitch connecting

1шт.

24

629972R91

DRIVE SPROCKET,15T

SPROCKET, beater drive chain, 15T, replaces block 582018R1, Includes: bolt, nut and washers

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2 crg type 1

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

21783R1

SQ HOLE WASHER,41/64" x 1 1/2" x .105", Sq Hole

.656 x 1.500 x .090 sq/h

1шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25

PULLEY ASSY, reel pump drive, refer to group 10 under hydraulic reel drive with rock trap

1шт.

26

SHIELD ASSY, rock trap drive, includes ref. no. 27, refer to group 10 under hydraulic reel drive with rock trap

1шт.

27

PRODUCT GRAPHIC, danger, refer to group 10 under hydraulic reel drive with rock trap

1шт.

28

1314151C1

ANGLE

beater reinforcing, Includes: bolt, nut and washer

4шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2 crg type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

29

1320846C1

SUPPORT ASSY.

ANGLE, rock trap

1шт.

1957365C1

LATCH

PACKAGE, rock trap door retro-fit, consists of

1шт.

1324881C1

ANGLE

SEAL, door angle, Includes: screw and nut

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

6шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

6шт.

1324765C1

SUPPORT TUBE,999 mm Length

TUBE ASSY, rock trap door RH, Includes: bolt and nut

1шт.

174608C2

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 type 5

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

1957278C1

LATCH

PACKAGE, latch support, consists of support assy (NSS), Includes: bolt and nut

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 znd type 5

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5 instructions (NSS)

2шт.
