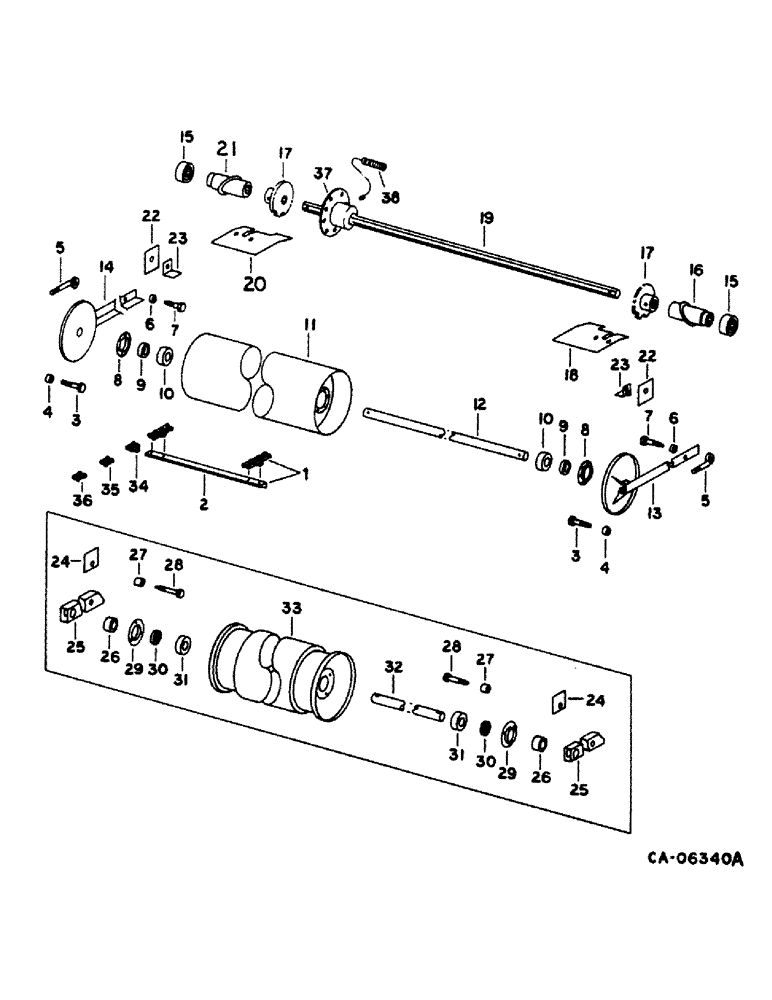

Запчасти Case IH 1420 (33-04) - FEEDER, FEEDER CONVEYOR (13) - FEEDER

1

1319206C91

CHAIN (CE)

CHAIN ASSY, feed conveyor, replaces 1313417C91 and 1308271C91, for grain, for 47 in. feeder

1шт.

1

1319201C91

CHAIN (CE)

CHAIN ASSY, feed conveyor, replaces 1313187C91 and 182095C91, for corn, for 47 in. feeder

1шт.

1

1307279C92

CHAIN (CE)

CHAIN ASSY, feed conveyor, replaces 1313410C91, 47.0" for corn/grain, rice machine, Includes: rivet

1шт.

104279

RIVET,FH, 3/8" x 3/4"

For rice, for 47 in. feeder FH, 3/8" x 3/4"

1шт.

2

1313419C1

SLAT

PACKAGE, feed conveyor, includes rivets, for corn and grain

15шт.

2

1300287C1

CONNECTING STRIP

SLAT PACKAGE, feed conveyor, includes rivets, for rice

8шт.

Rivets are 104279 for corn, grain or rice

1шт.

3

189709C1

BOLT,Hex, 1/2" - 13 x 3"

chain tightening clamp, Includes: nut and washers

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22770R1

WASHER

.531 x 1.500 x .164

1шт.

4

197211C1

SPACER

feeder drum stop

2шт.

5

176508C1

BOLT,5/8" - 11 x 228.60mm

feed conveyor tightener, Includes: nut

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

6

558506R1

SPACER

support arm bolt, w/o stone retarder drum

2шт.

7

178005C1

BOLT,Hex, 5/8" - 11 x 3", Gr 5

drum support arm, w/o stone retarder drum, Includes: nut and washer

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

8

165360C1

FLANGED BEARING,95.2 mm OD x 8.74 mm

FLANGE, drum bearing, w/o stone retarder drum, Includes: nut

2шт.

565631R1 Newer Flanges

1шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

9

455102R21

COLLAR

W/SET SCREW, feed conv. drum brg, w/o stone retarder drum

2шт.

557995R11 Newer Collar

1шт.

10

202311C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING, feed conveyor drum, w/o stone retarder drum

2шт.

619738R91 Newer Bearing

1шт.

11

175975C1

DRUM HUB

DRUM ASSY, feed conveyor, w/o stone retarder drum

1шт.

12

175982C2

SHAFT

feed conveyor drum, w/o stone retarder drum, for corn & rice, Includes: washer

1шт.

20704R1

WASHER

1/031 x 1.500 x .105

1шт.

12

187207C2

SHAFT,31.75mm OD x 909.3mm L

SHAFT, feed conveyor, w/o stone retarder drum, for grain (Replaces 187395C1), Includes: pin and washer

1шт.

137323

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

1шт.

609376R1

WASHER

1.781 x 2.500 x .105

1шт.

13

1305156C1

ARM ASSY.

ARM ASSY, drum support LH, w/o stone retarder drum, Includes: nut and bolt

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

24843R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

1шт.

14

1305157C1

ARM

ASSY, drum support RH, w/o stone retarder drum, Includes: nut and bolt

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

24843R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

1шт.

15

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

BEARING ASSY, feed conveyor shaft

2шт.

16

178780C1

SPACER

ASSY, conveyor sprocket LH

1шт.

17

197556C1

SPROCKET ASSY.

SPROCKET, feed conveyor chain, 9T, Includes: screw

2шт.

197643C1

SET SCREW

1/2-13 x 1/2 hex-soc-cup point

1шт.

18

185818C1

STRIPPER ASSY.

STRIPPER ASSY, LH, Includes: nut and screw

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

19

187395C1

SHAFT

feed conveyor, with out rock trap

1шт.

19

197277C2

SHAFT

feed conveyor, with rock trap and/or feeder reverser, Includes: pin and washers

1шт.

137323

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

1шт.

609376R1

WASHER

1.781 x 2.500 x .105

1шт.

20705R1

WASHER

1.781 x 2.500 x .054

1шт.

185874C1

SPACER

1шт.

20

185819C1

STRIPPER ASSY.

SRIPPER ASSY, RH, Includes: screw and nut

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

21

178781C1

SPACER

ASSY, conveyor sprocket RH

1шт.

22

187347C1

PLATE

BAR, upper stop, w/o stone retarder drum

1шт.

23

187364C2

ANGLE

ASSY, drum arm upper stop, w/o stone retarder drum, Includes: bolt, nut and washers

2шт.

598819R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT, 5/8 x 2-1/4 crg type 5

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22810R1

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

.656 x 1.250 x .054 sq/h

1шт.

24

187225C1

BAR

upper stop adjusting, w/stone retarder drum

2шт.

25

1305103C1

ARM ASSY.

ARM ASSY, drum stop, replaces 187367C1, w/stone retarder drum

2шт.

26

11449P

SPACER,1 1/4" Pipe x 1/2"

conveyor drum bearing, w/stone retarder drum

2шт.

27

187217C1

SPACER,7/8" Tube x 1 13/16"

drum arm pivot, w/stone retarder drum

2шт.

28

187218C1

BOLT

drum support arm, w/stone retarder drum, Includes: nut and washers

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

608701R1

WASHER

.656 x 1.250 x .054

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

29

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

drum bearing, w/stone retarder drum, Includes: nut

2шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

30

557995R11

COLLAR

W/SET SCREW, feed conveyor drum bearing, w/stone retarder drum

2шт.

31

619738R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

feed conveyor drum, w/stone retarder drum

2шт.

32

187207C2

SHAFT,31.75mm OD x 909.3mm L

feed drum, w/stone retarder drum, Includes: nut and bolt

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

1шт.

33

187195C3

DRUM

ASSY, feed conveyor, w/stone retarder drum

1шт.

34

182090C1

LINK,Chain, 41.4mm Pitch

LINK, conveyor attaching

1шт.

35

182094C1

LINK,Chain, Link, 41.4mm

conveyor connecting, Includes: link

1шт.

23442R1

PIN,2.36mm OD

#550 roller chain "S"

1шт.

36

182127C1

LINK,41.4mm Pitch

conveyor offset

1шт.

37

1305665C1

DISC

DISC ASSY, transducer pickup, Includes: screw

1шт.

197643C1

SET SCREW

1/2-13 x 1/2 hex-soc-cup

1шт.

38

1301241C1

SENSOR

CONVERTOR, reluctance pickup, Includes: nut

1шт.

107827

NUT,Stamped, 3/4"-16

3/4 C-Z stamped

1шт.

1300464C91

PACKAGE

feeder pivot stripper, parts accessory, consists of, support assy, pivot LH (NSS), support assy, pivot RH (NSS), instructions (NSS), hardware

1шт.
