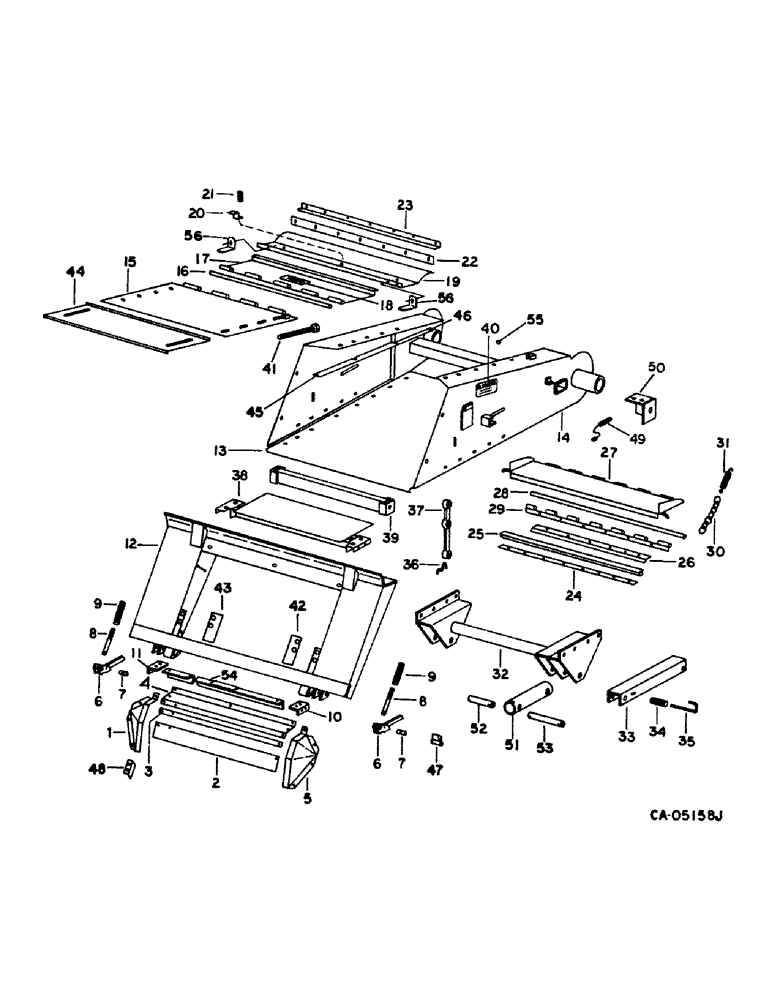

Запчасти Case IH 1420 (33-01) - FEEDER (13) - FEEDER

1

1308267C2

DEFLECTOR

ASSY, feeder front RH, for grain

1шт.

1

175909C1

DEFLECTOR

ASSY, feeder front RH, for corn & rice

1шт.

184854C1

DEFLECTOR

ASSY, feeder front RH, for use w/20 ft header w/24 in. auger, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

2

175955C1

COVER

front lower, Includes: bolt and nut

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD prevailing torque lock

1шт.

3

175952C1

BAR

STRAP, front cover backing, Includes: bolt and nut

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD p/t lock type 5

1шт.

4

175917C1

COVER

feeder adapter, not for use w/20 ft header w/24 in. auger

1шт.

4

1319220C1

SHIELD

COVER, feeder adapter, for use w/20 ft header w/24 in. auger, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

5

1308266C2

DEFLECTOR

ASSY, feeder front LH, for grain

1шт.

5

175908C1

DEFLECTOR

ASSY, feeder front LH, for corn & rice

1шт.

5

184853C1

DEFLECTOR

ASSY, feeder front LH, for use w/20 ft header w/24 in. auger, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

6

179024C1

HINGE

ASSY, feeder locking latch

2шт.

7

177141C1

PIN,15.88mm OD x 41mm L

locking latch pivot, Includes: pin and washer

2шт.

17132R1

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

21471R1

WASHER

.656 x 1.000 x .105

1шт.

8

177138C1

ROD

locking latch, Includes: nut, pin and washer

2шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 p/t lock type 5

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

9

367833R1

SPRING

locking latch rod, Includes: pin

2шт.

407171R1

LOCK PIN

PIN, latch locking

1шт.

10

175913C1

ANGLE

feeder adapter LH, w/o stone trap, Includes: nut, washers and bolt

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

11

175914C1

ANGLE

feeder adapter RH, w/o stone trap, Includes: nut, washers and bolt

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

12

1308275C2

ADAPTER

ASSY, feeder, for grain

1шт.

12

184595C2

ADAPTER

ASSY, feeder, for corn & rice

1шт.

12

1303261C3

ADAPTER

ASSY, feeder, for French 825 header

1шт.

13

185789C2

SHEET

feeder bottom, Includes: bolts, nuts and screw

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4 crg type 5

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

1319840C1

FLANGE NUT,Flg, 3/8"-16, G8

3/8 PHC flange

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

1319701C1

FLANGE NUT,1/2" - 13, Gr 8

1/2 PHC flange

1шт.

14

1303108C91

HOUSING

HOUSING ASSY, feeder, Includes: bolts, nuts, washers, screws and Ref. no. 40

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4 type 5

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

9413969

NUT,5/8"-11, GB

5/8 prevailing torque hex

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8 x 1-1/2 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

15

185837C1

SUPPORT ASSY.

HINGE ASSY, feeder top, Includes: bolt and nut

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

1319701C1

FLANGE NUT,1/2" - 13, Gr 8

1/2 PHC flange

1шт.

16

175906C1

ROD

top door hinge

1шт.

17

180555C91

DOOR ASSY.

DOOR ASSY, feeder top, Includes: Ref. no. 18

1шт.

18

179749C2

PRODUCT GRAPHIC

danger instr.

1шт.

19

197426C4

COVER

feeder top, Includes: bolt and nut

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

1319701C1

FLANGE NUT,1/2" - 13, Gr 8

1/2 PHC flange

1шт.

20

184645C1

CLIP

top door latch, Includes: bolt, nut and washer

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8 x 2-1/4 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

21

7422T

SPRING

top door latch

1шт.

22

634204R1

SEAL

feeder top

1шт.

23

197418C1

SUPPORT

feeder top seal, Includes: screw and nut

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

7шт.

24

197429C1

SEALING STRIP

lower door seal, Includes: screw

1шт.

155945

SCREW,Cross Flat Hd, #10 - 24 x 3/4"

1шт.

196922C1

LOCK NUT

no. 10 p/t lock

1шт.

25

197428C2

DOOR SEAL

feeder lower door

1шт.

26

197427C1

GUIDE

STRAP, lower door seal spacer

1шт.

Rivets used were 187166C1

1шт.

27

193362C2

DOOR

ASSY, feeder bottom

1шт.

28

159012C1

ROD

feeder bottom door hinge

1шт.

29

193364C2

HINGE

feed plate, Includes: nut and screw

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

30

167570C1

CHAIN,203.2mm L

lower door latch

2шт.

31

635503R1

SPRING,148.8mm Free Length

lower door latch

2шт.

32

197382C2

SUPPORT ASSY.

SUPPORT ASSY, feeder lift, Includes: bolt, nuts and screw

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

1319701C1

FLANGE NUT,1/2" - 13, Gr 8

1/2 PHC flange

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

33

197554C3

CHANNEL

lift cylinder lock, Includes: pins

1шт.

586591R1

COTTER PIN

PIN, 1/8 qa

1шт.

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN, HEADED, 3/8" x 3 1/4"

1шт.

34

M296

SPRING

lift locking rod

1шт.

35

197849C1

ROD

cylinder lift lock, Includes: pin and washer

1шт.

21858R1

COTTER PIN,1/8" x 1/2"

1/8" x 1/2"

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

36

179207C1

HOOK

reel lift hose tie down

1шт.

37

179206C1

STRAP

reel lift hose tie down, Includes: nut, screw and washer

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

1шт.

455367

SCREW, no. 10 x 1-1/2 znp h/hd mach Hex Hd, #10-24 x 1 1/2"

1шт.

22237R1

WASHER

.203 x .750 x .054

1шт.

38

187187C2

SUPPORT ASSY.

SUPPORT ASSY, feeder bottom, w/stone trap, Includes: bolt, nut and washers

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

39

187192C1

SUPPORT ASSY.

SUPPORT ASSY, feeder bottom rear, w/stone trap, Includes: bolt and nut

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

40

189922C3

DECAL

PRODUCT GRAPHIC, danger

2шт.

41

185836C1

BOLT,Hex, 5/8" - 11 x 9"

header leveling adjusting, Includes: nut and washer

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

25547R1

WASHER,21/32" x 1 5/16" x .188", HDN

.656 x 1.312 x .188 PHC hdn

1шт.

42

181646C1

SUPPORT

FILLER, feeder LH, Includes: screw and nut

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

43

181646C1

SUPPORT

FILLER, feeder RH, Includes: screw and nut

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

44

182317C1

COVER

feeder top front

1шт.

45

182032C2

BAR

feeder upper

2шт.

46

182035C1

SUPPORT

feeder lower

2шт.

47

1338021C1

PIN,7.94mm OD

latch locking, replaces 407171R1

2шт.

48

1308306C1

DEFLECTOR

SUPPORT, adapter lower, for grain, Includes: nut and screw

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

49

GAGE, reluctance pickup, refer to this group under feeder conveyor

1шт.

50

1307486C1

SUPPORT ASSY.

SUPPORT ASSY, transducer mounting, Includes: bolt

1шт.

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

1/4 x 3/4 hex-hd flange

1шт.

51

EXTENSION, lift cylinder, refer to group 10 under header lift cylinder

1шт.

52

PIN, lift cylinder, refer to group 10 under header lift cylinder

1шт.

53

PIN, lift cylinder, refer to group 10 under header lift cylinder

1шт.

54

1319744C1

SUPPORT ASSY.

SUPPORT ASSY, bottom stiffener, w/o rock trap

1шт.

55

190295

PLUG,13/16"

13/16 hole dia pln button, to plug hole in rear cross tie tube when not equipped with automatic feeder cut off

1шт.

56

1322144C1

ANGLE

top door stop, Includes: bolt and nut

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.
