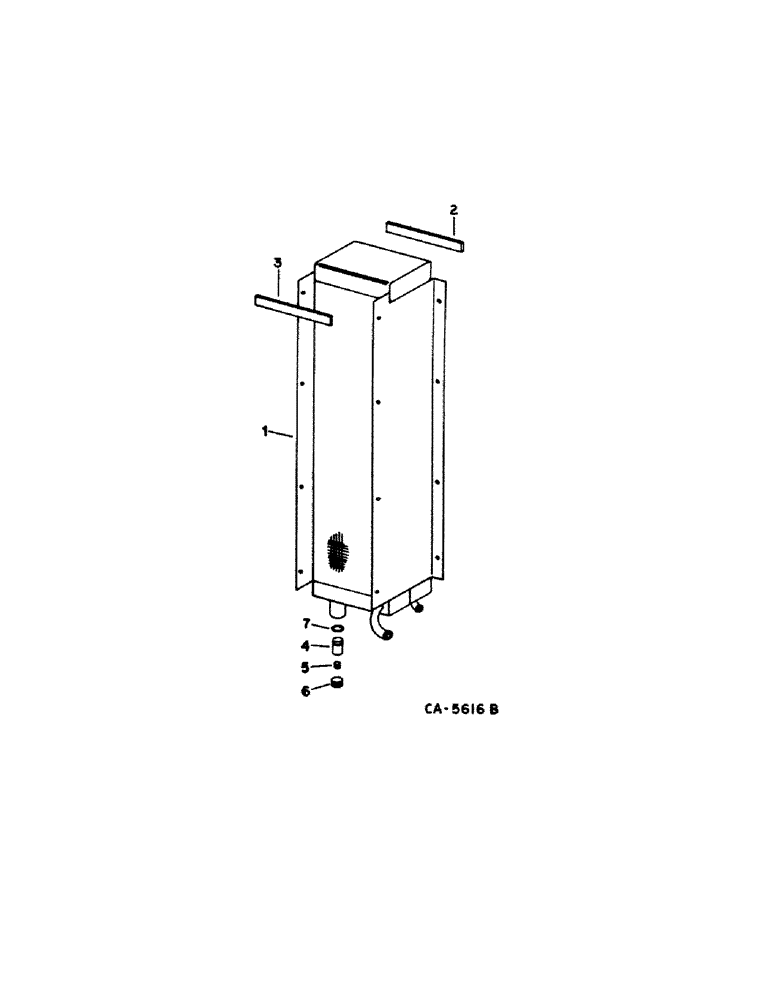

Запчасти Case IH 1420 (10-47[A]) - HYDRAULICS, OIL COOLER (07) - HYDRAULICS

1

131041C92

COOLER ASSY.

COOLER ASSY, oil, Includes: Ref, nos. 4, 5 and 6, Includes: bolt, and washers

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 typ 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

2

STRIP, sealing, use 6 in. from 4 ft. strip marked 73222C1

2шт.

3

188062C1

STRIP

oil cooler

2шт.

4

146547C1

VALVE

check

1шт.

5

61222C1

SPRING

check valve

1шт.

6

146548C1

PLUG

pipe

1шт.

7

610547C1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

7/8 x 1 class 5

1шт.
