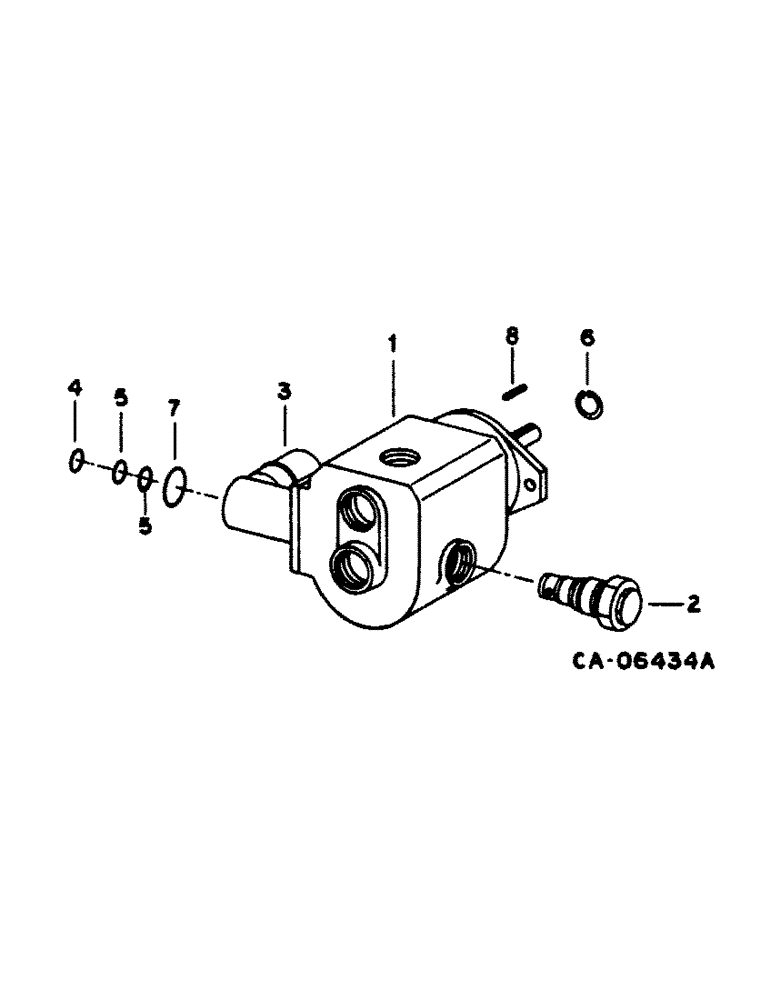

Запчасти Case IH 1420 (10-43) - HYDRAULICS, REEL DRIVE PUMP, ROSS, S/N THRU 20000 (07) - HYDRAULICS

1

183732C91

PUMP, HYDRAULIC

PUMP ASSY, reel drive, furnish reel pump service kit 1315476C92

1шт.

2

1301996C1

VALVE

ASSY, pump

1шт.

3

1301336C1

MOTOR, ELECTRIC

MOTOR ASSY, pump, includes ref. nos. 4 & 5

1шт.

4

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

1шт.

5

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16 x 7/16 class 6

2шт.

6

273026R1

SNAP RING,1.375", Int, #137

RING, 1.526 int ret

1шт.

7

379181R1

O-RING,0.614" ID x 0.07" Width

5/8 x 3/4 class 5

1шт.

8

474098R1

KEY,3/16" Sq x 1 1/4", Par

sq. parallel 3/16 x 1-1/4

1шт.

1301986C1

KIT

SEAL KIT, pump

1шт.

1315476C92

PACKAGE

KIT, reel pump service, consists of

1шт.

1317948C1

SUPPORT

reel pump

1шт.

1272640C91

HYDRAULIC PUMP,46.7 CC

PUMP ASSY, reel drive

1шт.

1282383C1

FITTING,1-5/8" - 12 ORB x

1-5/8-12 x 1 in.

1шт.

Ref. 8 Description for the 1282383c1 should be Beaded instead of flared.

1шт.

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-1/4 OD tube

1шт.

573206R1

HYD CONNECTOR,7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4 to 5/8 C-Z hyd fld

1шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

1317078C2

HOSE

ASSY, pump to flow divider

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

2шт.

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

5/8 hyd fld adj 90D

2шт.

1282369C91

VALVE

reel drive

1шт.

1315463C1

HOSE

return

1шт.

1315462C1

HOSE

pressure

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

193252C1

PULLEY

ASSY, pump driven, 7.5" O.D., 7/8" I.D.

1шт.

193252C1, pulley is 7" o.d.

1шт.

1330177C2, pulley is 5" o.d. bj 2-6-98

1шт.

540858R1

BOLT,Hex Serr, 1/2" - 13 x 1 1/2"

1/2 x 1-1/2 hex-hd flange

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

180735

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

5/16 x 3-1/4 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8 x 3/4 znp sq/hd c/pt set

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.
