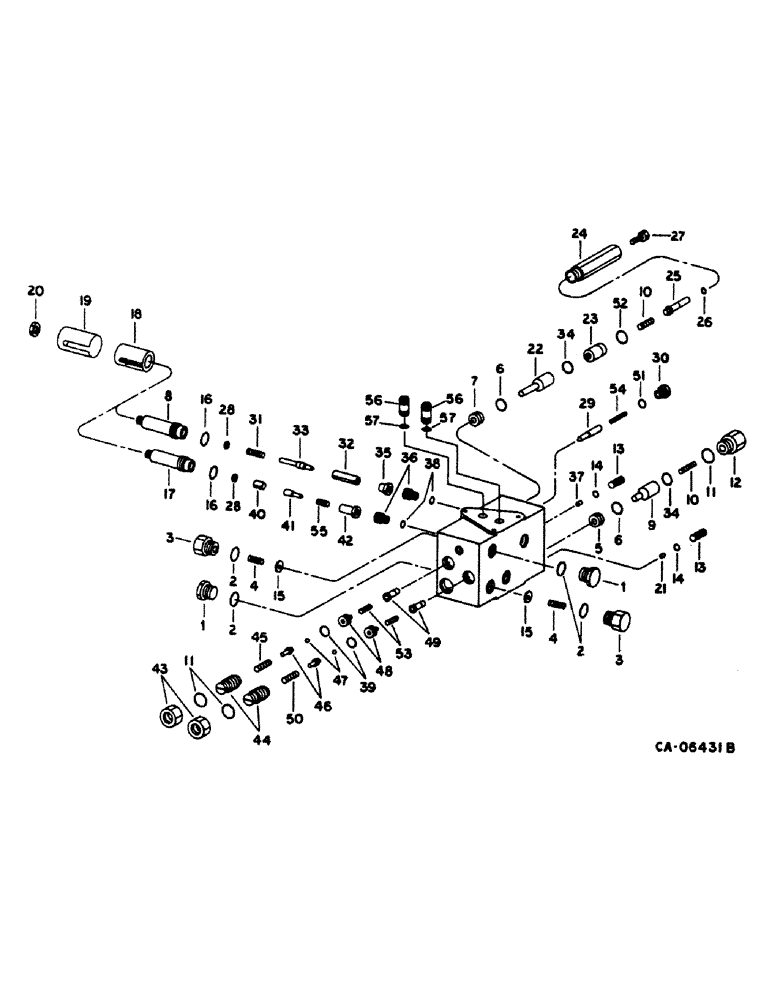

Запчасти Case IH 1420 (10-35) - HYDRAULICS, HEADER VALVE, FEEDER CLUTCH, HEADER LIFT, SEPERATOR CLUTCH AND STEERING (07) - HYDRAULICS

1267033C92

VALVE

ASSY, header, replaces 1301680C91, Includes: bolt, washer and Re. nos. 1 thru 55

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

1

1301653C1

PLUG,3/4" - 16 x 9.50mm

PLUG, end

2шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 in. OD tube class 6

4шт.

3

1301655C1

PLUG

end, used with valve 1301680C91

2шт.

3

1272253C1

PLUG

end, used with valve 1267033C92

2шт.

4

1301656C1

SPRING

used with valve 1301680C91

2шт.

4

1272254C1

SPRING

used with valve 1267033C92

2шт.

5

1301657C1

PISTON

flow

1шт.

6

392382R1

O-RING,0.551" ID x 0.07" Width

9/16 x 11/16 class 6

2шт.

7

1301658C1

PISTON

flow

1шт.

8

1301627C1

STUD

ASSY, N.C.

1шт.

9

1301659C1

PIN

1шт.

10

1301660C1

SPRING

2шт.

11

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

4шт.

12

1301661C1

PLUG

hex-hd end

1шт.

13

1301631C1

PLUG,5/16" - 24 x 14.80mm, Slotted, HT

STUD, seal

2шт.

14

529909R1

O-RING,1.78mm Thk x 2.54mm ID

2шт.

15

1301662C1

WASHER

damping

2шт.

16

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

13/16 x 15/16 class 6

2шт.

17

1301641C1

STUD

ASSY, N.O.

1шт.

18

1301730C1

VALVE

SWITCH

2шт.

19

1301632C1

CAP

coil

2шт.

20

107825

NUT,Stamped, 1/2"-20

1/2-NF cad stamped

1шт.

21

1301649C1

PLUG

PLUG

1шт.

22

1301664C1

VALVE

PIN, lower

1шт.

23

1301665C1

PISTON

1шт.

24

1301666C1

PLUG

adjusting

1шт.

25

1301667C1

PIN

adjusting

1шт.

26

21587R1

O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro

1/8 x 1/4 class 6

1шт.

27

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5, Includes nut

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

28

1301642C1

WASHER

2шт.

29

1301668C2

SPOOL

PIN, check valve

1шт.

30

1301669C1

PLUG

7/16-20

1шт.

31

1301640C1

SPRING

1шт.

32

1301648C1

ARMATURE

BUSHING, N.C.

1шт.

33

1301647C1

POPPET

PIN, bi-direct

1шт.

34

574069R1

O-RING,0.750" ID x .062"

3/4 x 7/8 class 5

2шт.

35

1301624C1

BUSHING

N.C. pole

1шт.

36

1301625C1

ORIFICE

PISTON

2шт.

37

1301671C1

PLUG

orifice

1шт.

38

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4 x 3/8 class 6

2шт.

39

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 class 6

2шт.

40

1301672C1

PIN

N.O. armature

1шт.

41

1301644C1

PIN

N.O., Order 1301644C2. Also Order BUSHING 1301646C2 and SLEEVE 1301641C2 for initial replacement

1шт.

42

1301646C1

BUSHING

N.O. pole

1шт.

43

1301674C1

NUT

1 in. hex.

2шт.

44

1301675C1

PLUG,7/8" - 14 - 11/16" - 16 x 33.30mm

STUD

1шт.

45

1301676C1

SPRING

used with valve 1301680C91

1шт.

45

1272403C1

SPRING

used with valve 1267033C92

1шт.

46

1301677C1

PIN

spring guide

2шт.

47

17008R1

BALL,1/4" Dia

Grade 25 metal 1/4" Dia

2шт.

48

1301654C1

NUT

2шт.

49

1301678C1

VALVE

PISTON, relief valve

2шт.

50

1301636C1

SPRING

1шт.

51

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

1шт.

52

370920R1

O-RING,1/2" ID

1/2 x 5/8 class 5

1шт.

53

1301679C1

SPRING

2шт.

54

1301729C1

SPRING

1шт.

55

1301821C1

SPRING

1шт.

56

1301630C1

TUBE

thru

2шт.

57

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 class 6

2шт.

1282279C1

SEAL KIT

KIT

1шт.

KIT, o-ring repair, for use on valves 1267033C91 and 1301680C91, consists of (4) o-ring (NSS), (2) o-ring (NSS), (4) o-ring (NSS), (2) o-ring (NSS), (2) o-ring (NSS), (1) o-ring (NSS), (2) o-ring (NSS), (2) o-ring (NSS), (2) o-ring (NSS), (1) o-ring (NSS), (1) o-ring (NSS)

1шт.

530575R91

SHIM KIT

PACKAGE, relief valve shim, consists of (4) shim .005 in. (NSS), (4) shim .007 in. (NSS), (2) shim .020 in. (NSS), (1) shim .042 in. (NSS)

1шт.
