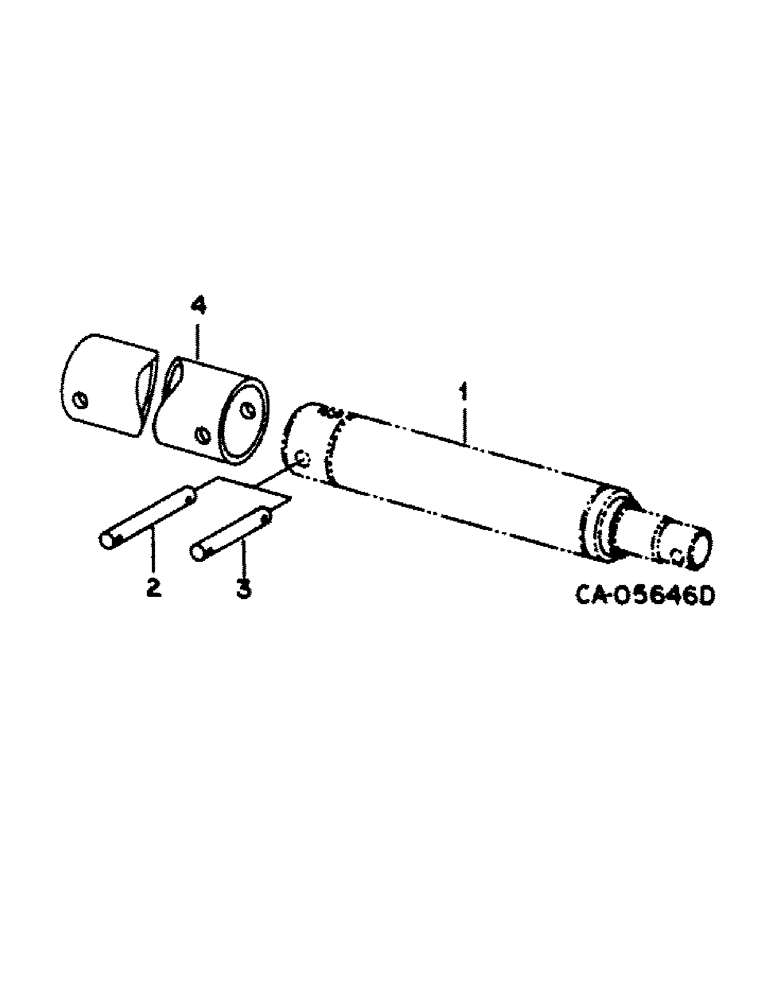

Запчасти Case IH 1420 (10-30) - HYDRAULICS, HEADER LIFT CYLINDER (07) - HYDRAULICS

1

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSY, for service parts refer to cyl-1, section A

2шт.

1

127779C94R

REMAN-HYD CYLINDER

1420 INTERNATIONAL HARVESTER COMBINE (NORTH AMERICA), Assy (1/80-12/82)

2шт.

1

127779C94C

CORE-HYD CYLINDER

Return Number

2шт.

224718C92

SEAL KIT

KIT, cylinder service

1шт.

2

195822C1

PIN,25.4mm OD x 228.6mm L

header lift cylinder, used w/third cylinder

2шт.

3

573762R1

PIN,25.4mm OD x 130.97mm L

header lift cylinder

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

Includes pin 1/4" x 1 3/4"

1шт.

4

1320145C1

BRACE

EXTENSION, lift cylinder, for use with rock trap

2шт.

ref #4 (P/N 132045C1) - 10.2" long.--.8" cntr to cntr hole

1шт.
