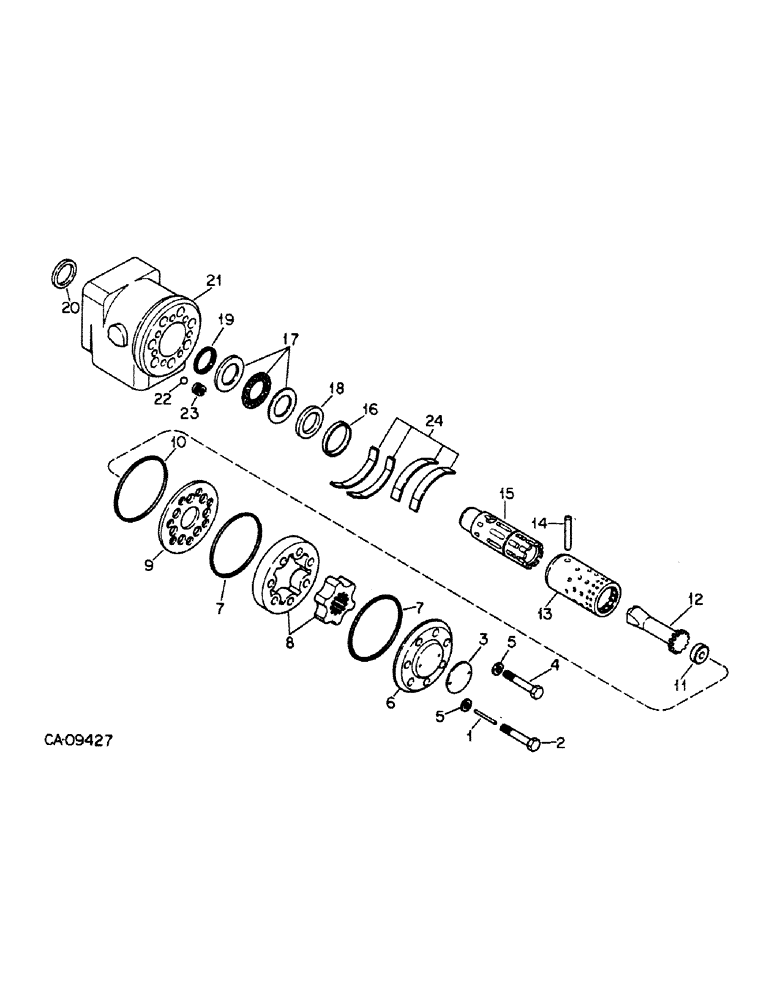

Запчасти Case IH 1420 (10-29) - HYDRAULICS, STEERING HAND PUMP, DANFOSS, S/N 20001 AND ABOVE (07) - HYDRAULICS

1272798C93

PUMP, HYDRAULIC

PUMP ASSY, hand (Replaces 1272798C92 ), Includes: bolt

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

1

3112271R1

PIN, ROLL

1шт.

2

1272791C1

SCREW

1шт.

3

PLATE, rating with screws

1шт.

Not serviced separately, order pump 1272798C93

1шт.

4

3216710R1

SCREW

6шт.

5

WASHER

7шт.

Order Seal Repair Kit, 1500443C91.

1шт.

6

1272805C1

COVER

end

1шт.

7

O-RING

2шт.

Order Seal Repair Kit, 1500443C91.

1шт.

8

1272804C1

GEAR

SET, gear

1шт.

9

1272803C1

PLATE

1шт.

10

O-RING

1шт.

11

1272802C1

SPACER

1шт.

12

1272797C1

SHAFT

1шт.

13

SLEEVE

1шт.

Not serviced separately, order pump 1272798C93

1шт.

14

1272796C1

CROSS PIN

1шт.

15

SLEEVE

1шт.

Not serviced separately, order pump 1272798C93

1шт.

16

RING

1шт.

Not serviced separately, order pump 1272798C93

1шт.

17

1272808C1

NEEDLE BEARING

needle bearing

1шт.

18

RING

1шт.

Order Seal Repair Kit, 1500443C91.

1шт.

19

SEAL replaces o-ring

1шт.

Order Seal Repair Kit, 1500443C91.

1шт.

20

1272795C1

O-RING,39.6mm ID x 41mm OD x 4.5mm

seal

1шт.

21

HOUSING

1шт.

Not serviced separately, order pump 1272798C92

1шт.

22

1272794C1

BALL

1шт.

23

172793C1

ANGLE

BUSHING

1шт.

24

1272809C1

PACKAGE

KIT, spring

1шт.

1500443C91

SEAL KIT

KIT, o-ring and seal repair, replaces 3141548R91

1шт.

SB 089.1- 87 Dan Foss Hand Pump changes.

1шт.
