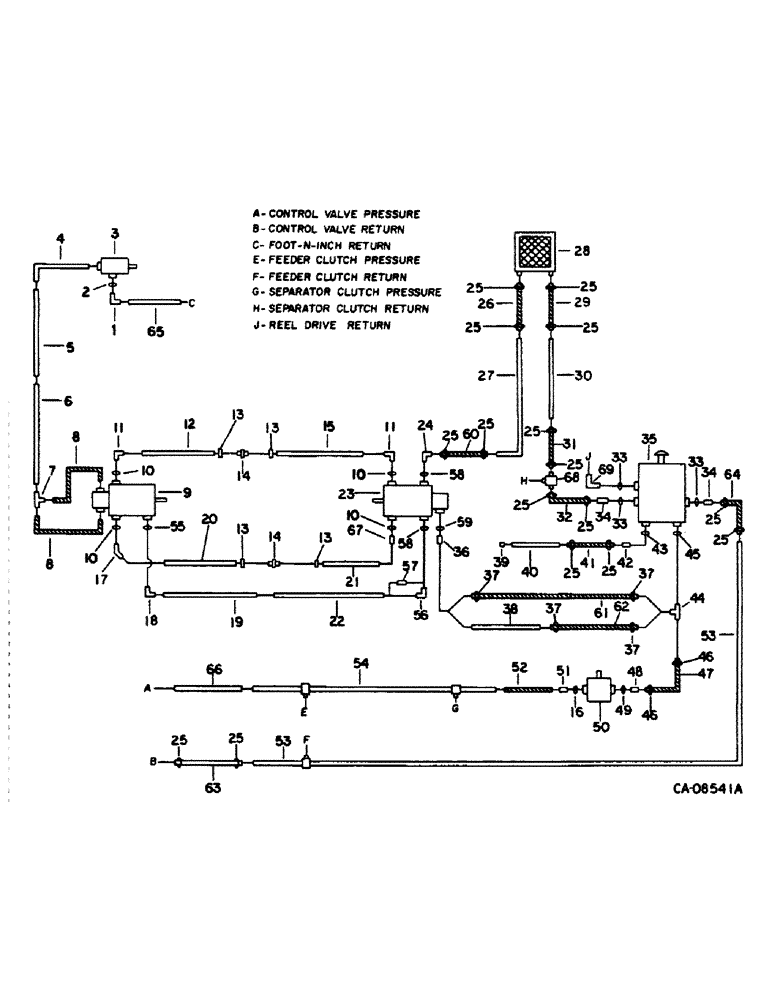

Запчасти Case IH 1420 (10-29) - HYDRAULICS, HYDROSTATIC MOTOR, PUMP AND HEADER LIFT DIAGRAM (07) - HYDRAULICS

1

164596C1

ELBOW

9/16-18 37 deg hyd flared tube 90 deg

1шт.

3

VALVE, foot-n-inch, refer to this group under foot-n-inch valve

1шт.

4

187753C1

HYD TUBE

TUBE ASSY, foot-n-inch upper

1шт.

5

187752C1

HYD TUBE,0.25" OD, 1003, 521 mm Length

TUBE ASSY, foot-n-inch center

1шт.

6

187751C1

HYD TUBE

TUBE ASSY, foot-n-inch lower

1шт.

7

9402979

TEE,7/16"-20, 37 Degree

7/16-20 37 deg flared tube

1шт.

8

175760C1

HOSE ASSY.

HOSE ASSY, foot-n-inch

2шт.

9

MOTOR ASSY, hydrostatic, refer to this group under hydrostatic motor

1шт.

10

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 in. OD tube

4шт.

11

595408R1

90 ELBOW

1-5/16-12 x 1 in. OD tube 90 deg

2шт.

12

187721C2

TUBE,1479, 267 mm Length

ASSY, hydrostatic drive reverse lower pressure, Includes: sleeve

1шт.

165722C1

SLEEVE

tube nut rubber

1шт.

13

183797C1

SEAL

tube

4шт.

14

183789C1

CONNECTOR, ELEC

CONNECTOR

2шт.

15

187720C2

TUBE

ASSY, hydrostatic drive reverse upper pressure, Includes: bolt washer and sleeve

1шт.

20153R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2 type 8

1шт.

123920

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

165722C1

SLEEVE

tube nut rubber

1шт.

16

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 tube nut rubber

1шт.

17

595406R1

ELBOW

1-5/16-12 x 1 in. tube adj. 45 deg.

1шт.

18

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

1-1/16-12 90 deg hyd flared, for Eaton motor

1шт.

18

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube 90 deg, for Sundstrand motor

1шт.

19

183740C1

TUBE ASSY.

TUBE ASSY, hydrostatic bleed lower, Eaton

1шт.

19

187747C1

HYD TUBE

TUBE ASSY, hydrostatic bleed lower, Sundstrand

1шт.

20

187719C3

TUBE,1113, 369 mm Length

ASSY, hydrostatic drive forward lower pressure, Includes: sleeve

1шт.

165722C1

SLEEVE

tube nut rubber

1шт.

21

187718C2

TUBE,1450, 1192.5 mm Length

ASSY, hydrostatic drive forward upper pressure, Includes: sleeve

1шт.

165722C1

SLEEVE

tube with nut rubber, sleeve with ring, ball (NSS), connector, tube (NSS)

1шт.

22

183741C1

TUBE ASSY.

TUBE ASSY, hydrostatic bleed upper, Eaton

1шт.

22

187748C1

HYD TUBE

TUBE ASSY, hydrostatic bleed upper, Sundstrand

1шт.

23

PUMP, hydrostatic, refer to this group under hydrostatic pump

1шт.

24

387006R91

ELBOW

1-1/16-12 90 deg hyd flared, for Eaton pump

1шт.

24

173844C1

ELBOW

for Sundstrand pump

1шт.

25

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, hose

1шт.

26

HOSE, hydrostatic pump to oil cooler, use 18 in. of 5/8 id hyd hose from 25 ft. roll marked S118576

1шт.

27

183742C1

TUBE

ASSY, pump to oil cooler, Eaton pump

1шт.

27

187749C1

TUBE

ASSY, pump to oil cooler, Sundstrand pump

1шт.

28

OIL COOLER, refer to this group under oil cooler

1шт.

29

HOSE, oil cooler to reservoir, use 18 in. of 3/4 id hyd hose from 25 ft. roll marked 180720C2

1шт.

30

187750C1

HYD TUBE,0.75" OD, mm Length

TUBE ASSY, oil cooler to reservoir

1шт.

31

HOSE, reservoir to oil cooler, use 9 in. of 3/4 id hose from 25 ft. roll marked 180720C2

1шт.

32

HOSE, reservoir to oil cooler, use 7 in. of 3/4 id hyd hose from 25 ft. roll marked 180720C2

1шт.

33

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

3шт.

34

470420R11

FITTING

connector

1шт.

35

RESERVOIR, hydraulic, refer to this group under hydraulic reservoir

1шт.

36

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR, 1-5/16-12 37 deg hyd flared, for Eaton

1шт.

36

387488R1

CONNECTOR, ELEC

CONNECTOR, 7/8-14 and 3/4 beaded hyd flared tube reducing, for Sundstrand

1шт.

37

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

SWITCH MOUNTING, hose, Sundstrand

2шт.

37

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP, hose, Eaton

2шт.

38

183593C1

HYD TUBE

TUBE ASSY, charge suction, Eaton

1шт.

39

9403373

CAP,37 Degree, 7/8"-14

reservoir drain hose

1шт.

40

187822C1

HYD TUBE,5/8" OD, 14, 1.2" Length

TUBE ASSY, reservoir drain

1шт.

41

HOSE, reservoir drain, use 11.5 in. of 5/8 id hose from 25 ft. roll marked S118576

1шт.

42

196816C1

FITTING

1/2 port x 5/8 bead tube

1шт.

43

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 in. tube

1шт.

44

1301506C1

TEE

header lift suction hose, Eaton pump

1шт.

44

1301300C1

TEE

header lift suction hose, Sundstrand pump

1шт.

45

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 in. OD tube

1шт.

46

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP, hose

2шт.

47

1310776C1

HOSE

header lift suction

1шт.

48

180182C1

FITTING

CONNECTOR, 1-5/16-12 x 1 in. beaded

1шт.

49

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 in. OD tube

1шт.

50

PUMP, auxiliary hydraulic, header lift, refer to this group under auxiliary hydraulic pump

1шт.

51

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg flared

1шт.

52

381173R91

HOSE,12.7mm ID x 209.55mm L, SAE 100R1

header lift pressure

1шт.

53

187755C1

TUBE ASSY.

TUBE ASSY, header lift return

1шт.

54

187756C1

HYD TUBE

TUBE ASSY, header lift pressure

1шт.

55

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 in. OD tube, Eaton motor

1шт.

55

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 in. OD tube, Sundstrand motor

1шт.

56

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 deg flared hydraulic, Sundtrand pump

1шт.

57

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 1-1/16-12 hydraulic flared, Eaton pump

1шт.

58

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 in. OD tube, Eaton pump

2шт.

58

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 in. OD tube, Sundstrand pump

2шт.

59

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 in. OD tube, Eaton pump

1шт.

59

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 in. OD tube, Sundstrand pump

1шт.

60

HOSE, hydrostatic pump to oil cooler, use 18 in. of 3/4 id hydraulic hose from 25 ft. roll marked 180720C2

1шт.

61

HOSE, charge suction, use 24.5 ft. of 3/4 in. id hose from 25 ft. roll marked S118569, Sundstrand pump

1шт.

62

183601C1

HOSE,25.4 mm ID x 355.60 mm, SAE 100R4 CLASS 4, SAE 100R3 CLASS 5

charge suction, Eaton pump

1шт.

63

HOSE, header lift return, use 7 in. of 3/4 in. id hose from 25 ft. roll marked 180720C2

1шт.

64

HOSE, header lift return, use 12 in. of 3/4 id hose from 25 ft. roll marked 180720C2

1шт.

65

183892C1

TUBE ASSY.

TUBE ASSY, foot-n-inch return

1шт.

66

381170R91

HOSE

ASSY, control valve pressure, replaces 1267151C1, 15.5 in., 394 mm

1шт.

67

163915C1

FITTING

CONNECTOR, 1-5/16-12 37 deg hyd flared

1шт.

68

196709C1

TEE

separator clutch return hose

1шт.

69

171949C1

ELBOW

90 deg

1шт.

2

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.
