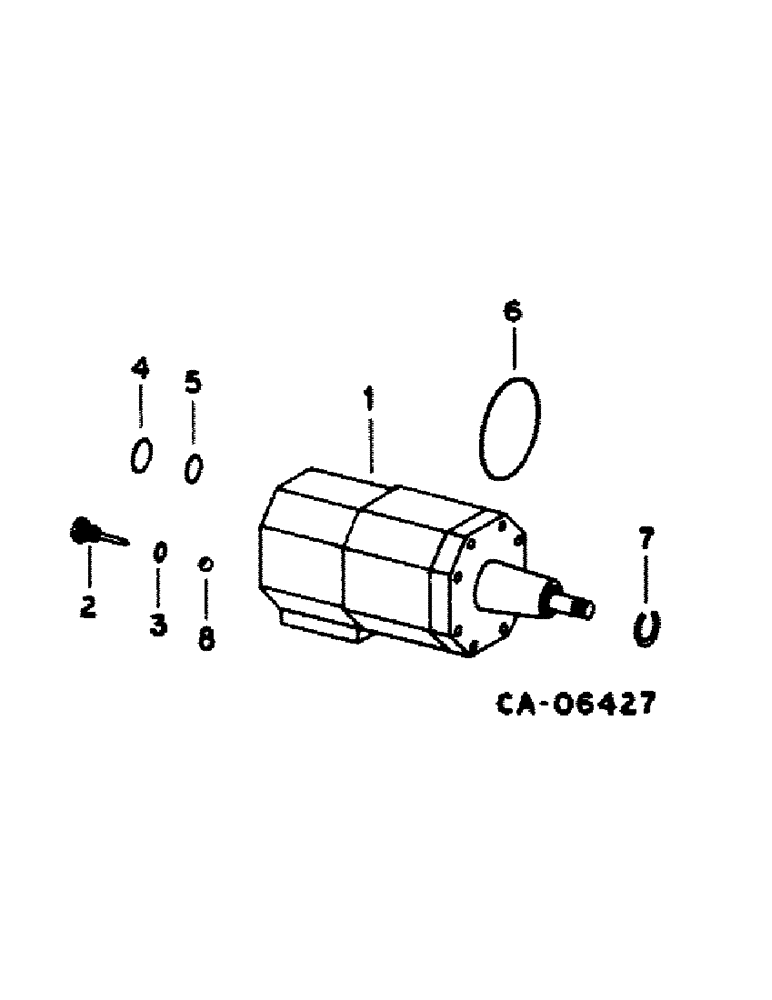

Запчасти Case IH 1420 (10-28) - HYDRAULICS, STEERING HAND PUMP, ROSS, S/N 20000 AND BELOW (07) - HYDRAULICS

1

1301285C92

PUMP, HYDRAULIC

PUMP ASSY, steering hand, Includes: bolt and ref nos. 2 thru

1шт.

Ref. 1, 19646 Nut goes on the end of the shaft of the Pump assy.

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

2

1301867C91

PIN ASSY.

PIN ASSY, hydraulic guide, Includes: ref. no. 3

1шт.

3

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, 3/16 OD tube class 6

1шт.

4

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube class 6

1шт.

5

392382R1

O-RING,0.551" ID x 0.07" Width

9/16 x 11/16 class 6

1шт.

6

1301870C1

O-RING,2.86" ID x 2.989" OD x 0.066"

2.86 x 2.989 x .066 class 6

1шт.

7

383878R1

SNAP RING,1.25, Int, #125

RING, 1.388 internal retaining

1шт.

8

17009R1

BALL

9/32 grade 25 metal

1шт.

224712C1

SEAL KIT

PACKAGE, hydraulic guide seal

1шт.

1301869C1

WASHER

KIT ASSY, hydra guide washer

1шт.
