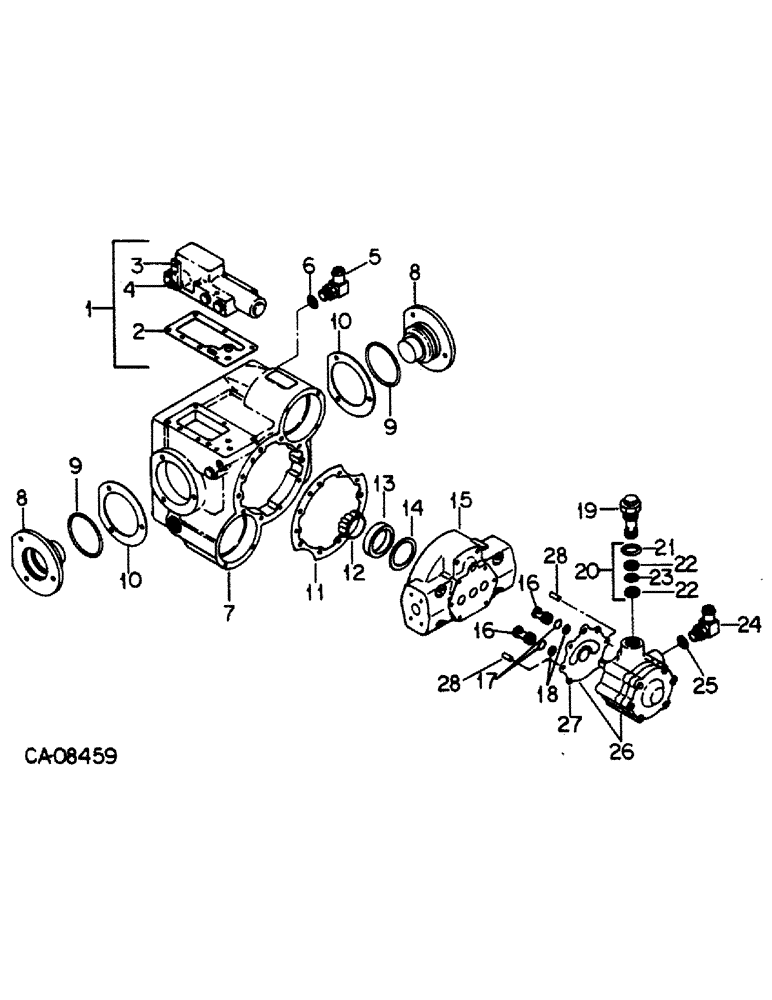

Запчасти Case IH 1420 (10-20) - HYDRAULICS, HYDROSTATIC PUMP, EATON, VALVE BLOCK (07) - HYDRAULICS

1

VALVE ASSY, control, for details refer to this group under control valve, Eaton hydrostatic pump, Includes: bolts

1шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

2

133756C1

GASKET

control valve

1шт.

3

404782R1

HANDLE

control valve shaft, Includes: washer and nut

1шт.

121753

WASHER

1/4 ext tooth lock

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

4

1255148C1

SHAFT ASSY.

SHAFT, control valve

1шт.

5

Not used this application

1шт.

6

Not used this application

1шт.

7

HOUSING, variable, not serviced separately, order pump 1252339C92

1шт.

8

TRUNNION, not serviced separately, order pump 1252339C92, Includes: bolt

1шт.

179857

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

7/16 x 7/8 pln type 5

1шт.

9

707220R1

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

3 x 3-1/4 x 1/8 trunnion

2шт.

10

142386C91

SHIM KIT

PACKAGE, trunnion shim

1шт.

11

140782C1

GASKET

end cover

1шт.

12

401221R91

BEARING ASSY,1" ID x 2.3437" OD x 0.92"

BEARING ASSY, input shaft cone

1шт.

13

401220R1

BEARING, CUP

BEARING, input shaft cup

1шт.

14

140783C91

PACKAGE

shim

1шт.

15

COVER, pump end, not serviced separately, order pump 1252339C92, Includes: bolts

1шт.

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

179869

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

1шт.

16

140769C1

CHECK VALVE

VALVE ASSY, check

2шт.

17

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32 check valve

2шт.

18

140770C1

RING

check valve back up

2шт.

19

140771C1

VALVE

ASSY, low pressure relief

1шт.

20

393885R91

GASKET KIT

PACKAGE, relief valve seal, consists of ref. nos. 21, 22 and 23

1шт.

21

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 x 1-7/32 x 7/64

1шт.

22

393887R1

BACK-UP RING

RING, relief valve back up

2шт.

23

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 x 3/32

1шт.

24

Not used this application

1шт.

25

Not used this application

1шт.

26

133761C91

PUMP

1шт.

27

133760C1

GASKET

1шт.
