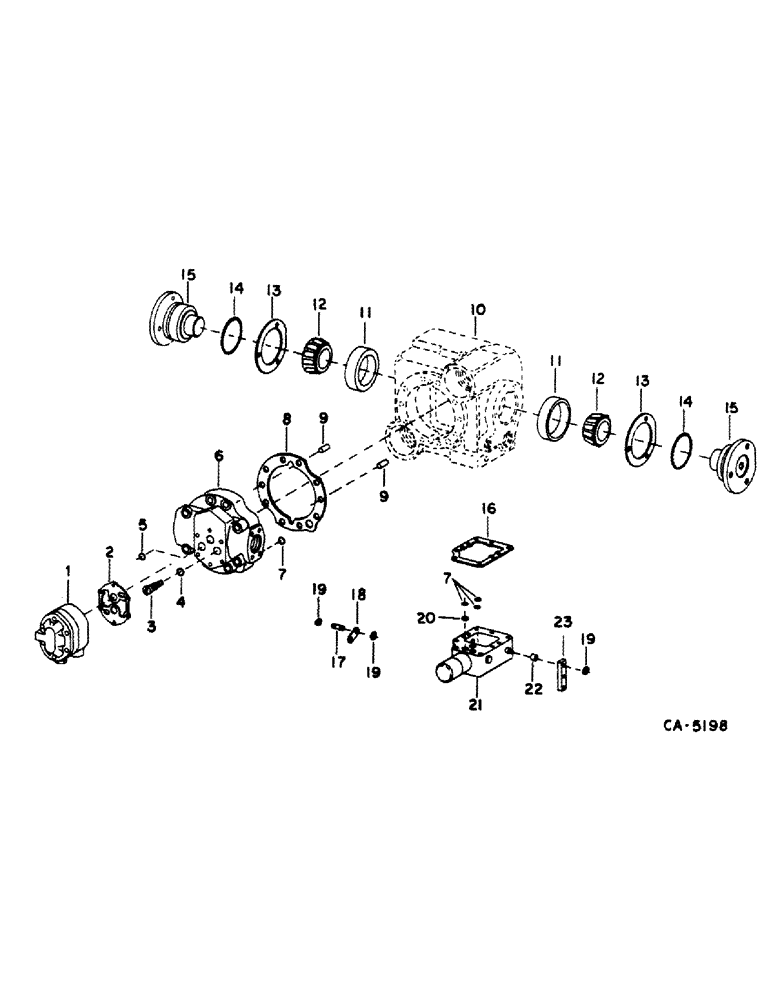

Запчасти Case IH 1420 (10-15) - HYDRAULICS, HYDROSTATIC PUMP, VALVE BLOCK, SUNDSTRAND (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
404777R92
PUMP, HYDRAULIC
PUMP ASSY, hyd. charge RH, includes ref. no. 5 also a bolt and washer
1шт.
179809
BOLT,Hex, 1/4" - 20 x 3", Gr 5
1шт.
385180R1
WASHER
9/32 x 1/2 x .065
1шт.
2
533858R1
GASKET
charge pump
1шт.
3
394238R91
VALVE
ASSY, charge pump check
2шт.
4
371544R1
O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro
9/16 x 11/16 x 1/16
2шт.
5
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
5/8 tube
1шт.
6
530731R1
CAP
transmission pump rear end, Includes: bolts and washer
1шт.
179847
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
280161
BOLT,Hex, 3/8" - 16 x 3", Gr 5
1шт.
394881R1
WASHER
13/32 x 11/16 x .106
1шт.
7
382997R1
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1/2 x 5/8 x 1/16
4шт.
8
394218R1
GASKET
transmission pump rear end cover
1шт.
9
21061R1
DOWEL,3/8" x 1/2"
PIN, 3/8 x 1/2 dowel
4шт.
10
HOUSING, transmission pump, refer to this group under hydrostatic pump
1шт.
11
560954R1
BEARING ASSY,1.37525" ID x 2.8755" OD x 0.9688"
swashplate cup
2шт.
12
165963R91
BEARING
ASSY, swashplate cone
2шт.
13
394205R91
SET
swashplate brg., trunnion gasket
1шт.
14
21003R1
O-RING,2.484" ID x 2.762" OD x 0.139"
2-1/2 x 2-3/4 x 1/8
2шт.
15
394204R1
TRUNNION
swashplate brg, Includes: bolt and washer
2шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
1шт.
394881R1
WASHER
13/32 x 11/16 x .106
1шт.
16
394237R2
GASKET
control valve housing
1шт.
17
394215R1
PIN
control valve link front
1шт.
18
394214R1
LINK
control valve
1шт.
19
21346R1
SNAP RING,#25, Ext, E-Type
Ring, Retaining, , control valve link #25, Ext, E-Type
2шт.
20
394219R1
PLUG
control valve orifice
1шт.
21
CONTROL VALVE, refer to this group under control valve, hyd. trans pump
1шт.
22
404783R1
SPACER
control valve handle, Includes: nut and washer
1шт.
NLS
NO LONGER SERVICED
1/4 ext tooth lock
1шт.
23
404782R1
HANDLE
control valve shaft
1шт.
Выбрано товаров: 32
