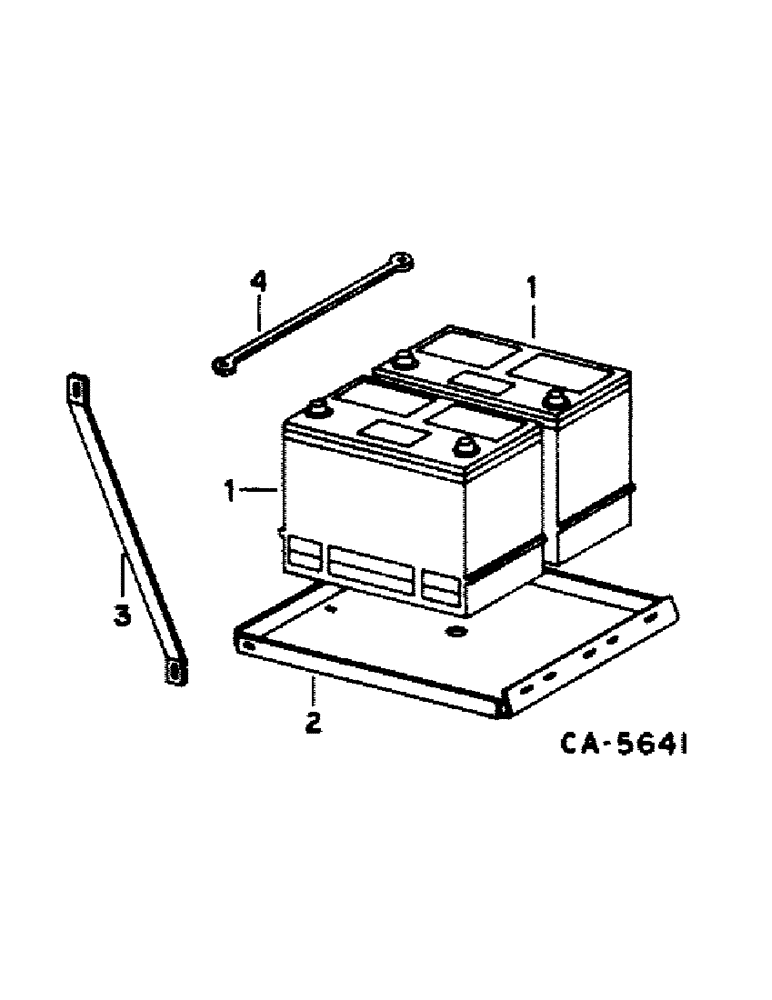

Запчасти Case IH 1420 (08-25) - ELECTRICAL, BATTERY AND MOUNTING (06) - ELECTRICAL

1

A186013

DRY BATTERY

12 volt, replaces IHMF24PF

1шт.

2

186101C1

TRAY

battery

1шт.

3

183018C1

SUPPORT

battery tray, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

4

188116C1

CLAMP

battery hold down, Includes: bolt, washer and nut

1шт.

21080R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 9 1/2", Gr 2

BOLT, 5/16 x 9-1/2 crg type 1

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

142745

NUT, WING

NUT, 5/16 wing

1шт.
