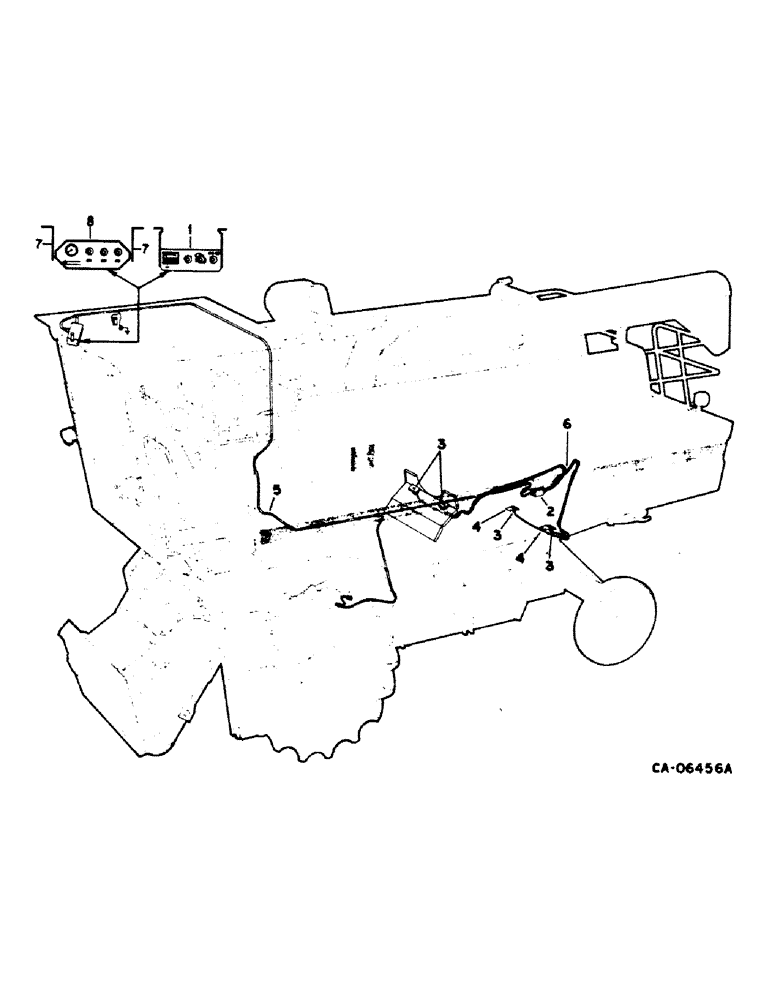

Запчасти Case IH 1420 (08-23) - ELECTRICAL, GRAIN LOSS MONITOR (06) - ELECTRICAL

1

1310676C2

CONTROL

grain loss monitor, Sed

1шт.

2

245736C1

BLOCK

monitor control junction, replaces 1310677C1 and 245069C2, Sed

1шт.

2

245306C1

HARNESS

ASSY, y-connector, Dickey, John

1шт.

Ref #2a - (2453066c1) Should be Ref #9.

1шт.

3

1301700C1

TRANSMITTER

SENSOR, monitor control, Sed

4шт.

3

245283C1

SENSOR

AND BRACKET, sieve, Dickey, John

2шт.

3

245285C1

SENSOR

AND BRACKET, rotor, Dickey, John

2шт.

4

1310680C1

SUPPORT

sensor mounting, Sed

2шт.

5

245067C1

HARNESS

ASSY, main, replaces 1310678C1, Sed

1шт.

5

245304C1

HARNESS

ASSY, main, Dickey, John

1шт.

Ref. 5a (245304c1) It does not send a lead to the tranmission distance sensor. It goes directly to the sensors without going through a monitor control junction block (like SED uses).

1шт.

6

245737C1

HARNESS

ASSY, rear sensor, distance cable, replaces 1310679C1 and 245068C1, Sed

1шт.

6

245305C1

HARNESS

ASSY, distance cable, Dickey, John

1шт.

Ref. 6a (245305c1) Should be ref. 10. This the distance cable for the Dickey-John system. It hooks to the Y-patch (Ref. 9) at the transmission sensor, and parallels Ref. 5 to the monitor in the cab roof.

1шт.

7

1319499C1

SUPPORT

BRACKET, monitor control mounting, Dickey, John

2шт.

8

245757C1

INSTRUMENT CLUSTER

CONTROL, grain loss monitor, Dickey, John, replaces 245250C1

1шт.

145510

FUSE,1 Amp, Type 3AG

1 amp

1шт.

245328C1

EXTENSION

battery cable, not illustrated, used with Dickey-John monitor 245250C1 only, connects monitor to 12 volt power supply

1шт.

FOOTNOTE

1шт.

trans sensor. gp 7, pg 6, ref #27

1шт.
