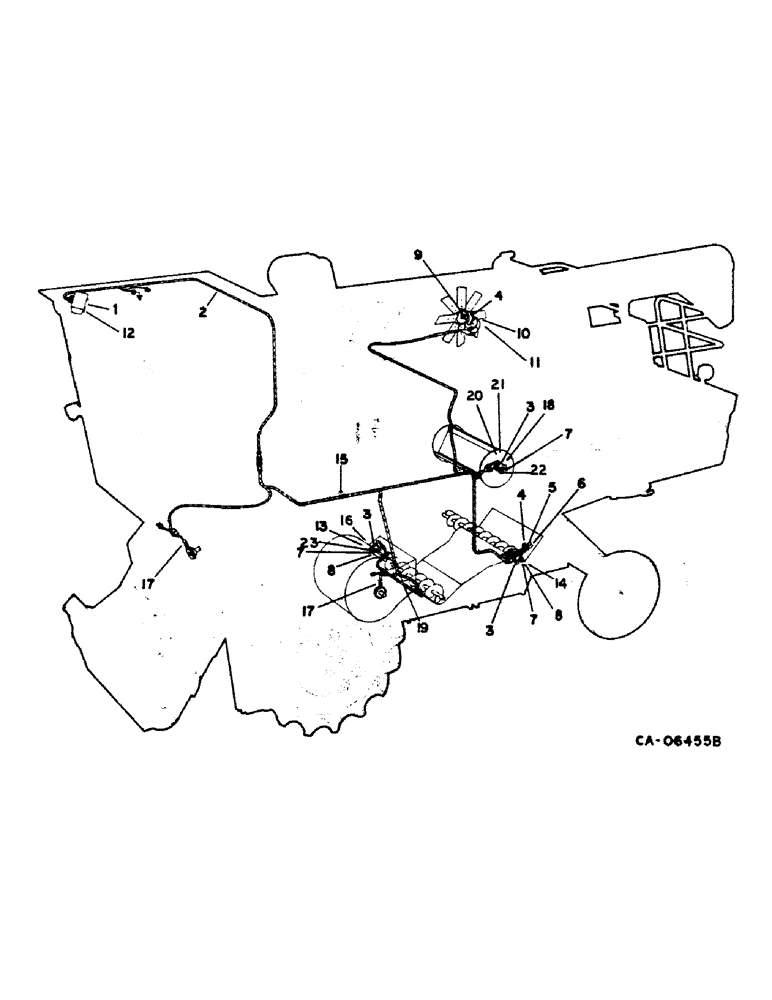

Запчасти Case IH 1420 (08-21) - ELECTRICAL, SHAFT SPEED MONITOR CONTROL (06) - ELECTRICAL

1

1265667C1

INDICATOR

PANEL, shift speed monitor, renewed 7 channel, replaces 1301266C2

1шт.

2

1301064C2

HARNESS

ASSY, cab section, Includes: screws

1шт.

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

26667R1

SCREW

no. 10 x 3/4 znp p/hdcr mach

1шт.

3

196984C1

SWITCH

ASSY, monitor control, 2 used w/straw chopper, 3 used w/o straw chopper

1шт.

4

187997C1

SWITCH

ASSY, rotary air and shoe control

2шт.

5

187996C1

MAGNET

ASSY, shoe

1шт.

6

187998C1

SUPPORT

shoe switch, Includes: washer, nut and bolt

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

7

178800C1

CLAMP

ASSY, sensor, 2 used w/straw chopper, 3 used w/o straw chopper, Includes: screw

1шт.

8

178801C1

COLLAR

clean grain & tailings sensor

2шт.

9

196987C1

MAGNET

ASSY, rotary screen

1шт.

125932

SELF-TAP SCREW,Sl Pan Hd, #8 x 1/2"

SCREW, SELF TAPPING, Slotted Pan Hd, #8 x 1/2"

1шт.

10

1301561C1

SUPPORT

ANGLE, rotary screen sensor

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

179454C1

RUBBER WASHER

rubber

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

11

1301560C1

SUPPORT

rotary screen sensor, Includes: screw, bolt, nuts and washer

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

27309R1

WASHER

NUT, 5/16 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

178876C1

SUPPRESSOR

audible alarm

1шт.

13

187615C2

BRACKET

SUPPORT, tailings sensor

2шт.

14

187616C1

SUPPORT

COVER, sensor, Includes: screw

2шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

15

1301065C1

HARNESS

ASSY, machine section

1шт.

16

187642C2

COVER

ASSY, clean grain auger sensor, Includes: screw

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

17

GAGE, reluctance pickup, refer to group 21 under rotor, refer to group 24 under cleaning fan and shield

2шт.

18

1301577C1

SWITCH

ASSY, monitor, for use w/straw chopper

1шт.

19

183752C1

HARNESS

ASSY, clean grain, Includes: screw and nut

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

20

187629C1

SUPPORT

beater shaft sensor

1шт.

20

181209C1

SUPPORT

straw chopper sensor, Includes: nut

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

21

187630C1

SUPPORT

beater shaft

1шт.

21

181208C1

SUPPORT

COVER, straw chopper shaft, Includes screw and nut

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

22

178799C1

CLAMP,44.45mm - 63.5mm

MAGNET ASSY, straw chopper

1шт.

23

178794C1

BRACKET

clean grain sensor

1шт.
