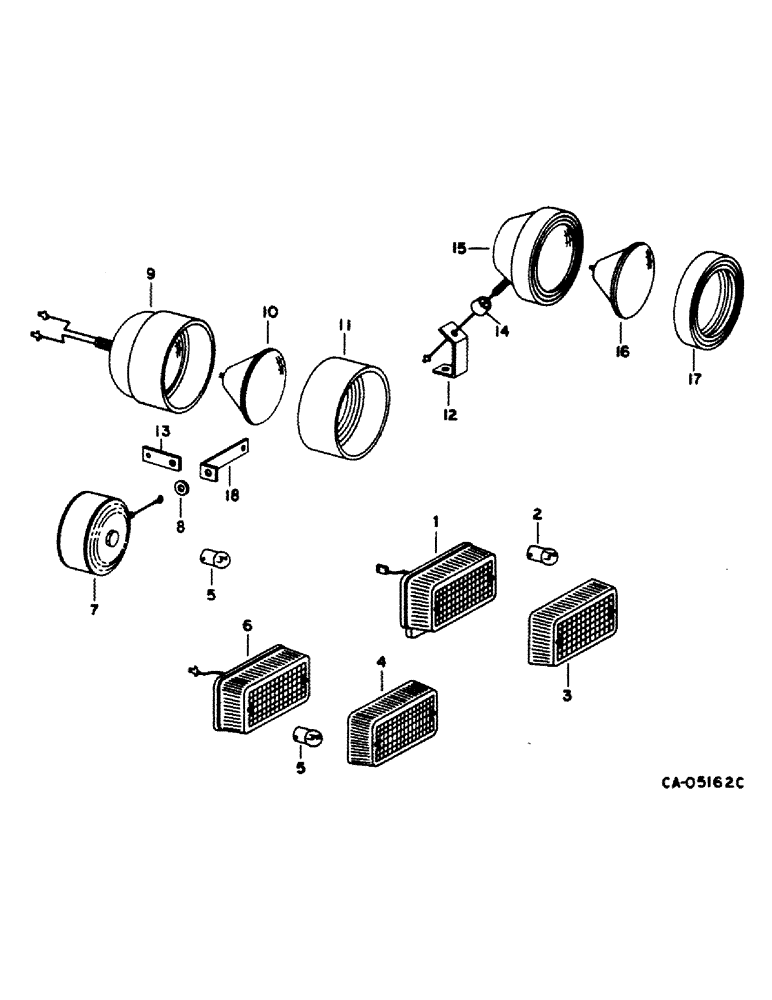

Запчасти Case IH 1420 (08-19) - ELECTRICAL, LIGHTS AND MOUNTING (06) - ELECTRICAL

1

216044C92

LAMP

TAIL LAMP ASSY, Includes: ref. nos. 2 and 3 also a nut and screw

2шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

1шт.

26618R1

SCREW

#10 x 2-1/2 phc p/hdcr mach

1шт.

2

9417867

BULB,C6, #1157, 12.8V

no. 1157

2шт.

3

216045C1

LENS

tail lamp

2шт.

4

130883C1

LENS

warning lamp

2шт.

5

A41264

BULB,#1156, 12V

1шт.

6

130882C91

LAMP

LAMP ASSY, rear warning, Includes: nut, screw and ref. nos. 4 and 5

2шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

1шт.

26618R1

SCREW

no. 10 x 2-1/2 phc p/hdcr mach

1шт.

7

196978C91

LIGHT

LAMP ASSY, flasher front, Includes: nut and ref. no. 5

2шт.

120371

NUT,1/2"-20, G5

1шт.

8

394262R1

WASHER

rubber

2шт.

9

388945R91

HEADLIGHT

LAMP ASSY, night light, Includes ref. nos. 10 and 11, replaces 175569C91 and 1310871C91

2шт.

10

373662R91

LAMP

UNIT

2шт.

10

131508C1

LAMP BASE

LAMP UNIT NO. H7610

2шт.

11

175570C1

SEAL RETAINER

night light lamp, used with lamp assy 175569C91

2шт.

11

676078R1

RETAINER

lamp, used with lamp 388945R91

2шт.

11

1310872C1

SEAL

night light lamp, used with lamp assy 1310871C91

2шт.

12

561915R1

BRACKET

lamp mounting, Includes: screws and nut

6шт.

28015R1

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 h/whd tap

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

568395R1

SPACER,5/8" Tube x 5/8"

5/8 x .562 tube, unloader light bracket

1шт.

13

183720C2

BAR

front RH turn signal, Includes: nut and screw

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

14

1267358C2

SEAT

INSULATOR, lamp, replaces 49069D

7шт.

15

391005R91

HEADLIGHT

LAMP ASSY, Includes: Ref. nos. 16 and 17 also a nut and washer

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

530029R91

CONNECTOR, ELEC

CONNECTOR ASSY, headlight, for hobbs light assy

1шт.

16

373662R1

LAMP

UNIT, or

6шт.

131508C1

LAMP BASE

LAMP UNIT

6шт.

17

676078R1

RETAINER

light, for hobbs light assy

6шт.

17

1252609C1

RETAINER

light, for midwest light assy

6шт.

18

Not used this application

1шт.
