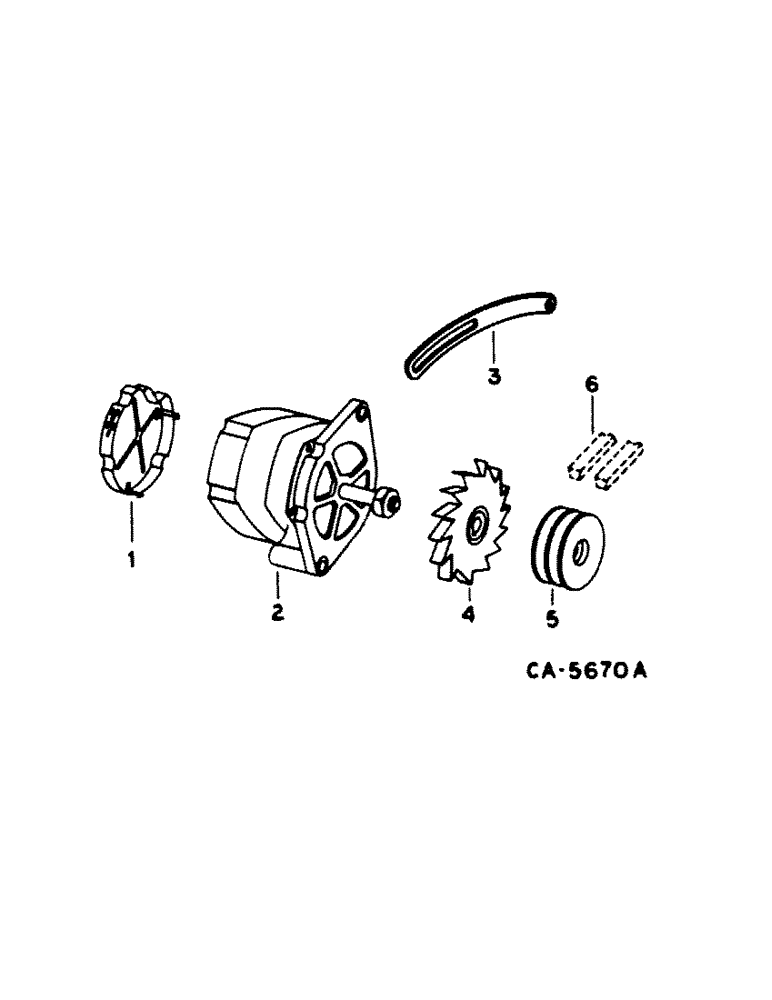

Запчасти Case IH 1420 (08-14) - ELECTRICAL, ALTERNATOR GENERATOR AND MOUNTINGS, ALL EXCEPT 90 AMP MOTOROLA ALTERNATOR (06) - ELECTRICAL

1

1851153

SHIELD

cover, used w/alternator 1103183, 1105171, 1105573 & 1105574

1шт.

27309R1

WASHER

.344 x .688 x .051

1шт.

30002R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

m8 x 20 pln class 8.8

1шт.

2

ALTERNATOR-GENERATOR, refer to this group under alternator, generator

1шт.

3

BRACE, adjusting, refer to engine parts catalog, Includes: bolt and washer

1шт.

1014921C1

BOLT

BOLT, m8 x 30 pln class 8.8

1шт.

21496R1

WASHER

.344 x .750 x .105

1шт.

4

221425R1

FAN

alternator-generator

1шт.

5

686502C1

PULLEY

alternator-generator, 4.25 in. OD, 108mm OD, used w/alternator 1103183, 1105171 and 1105573

1шт.

5

121847C1

PULLEY

alternator, 4.25 in. OD, 108mm OD, used w/alternator 146466C91

1шт.

6

BELT, matched set, refer to group 12 under engine belt diagram

1шт.
