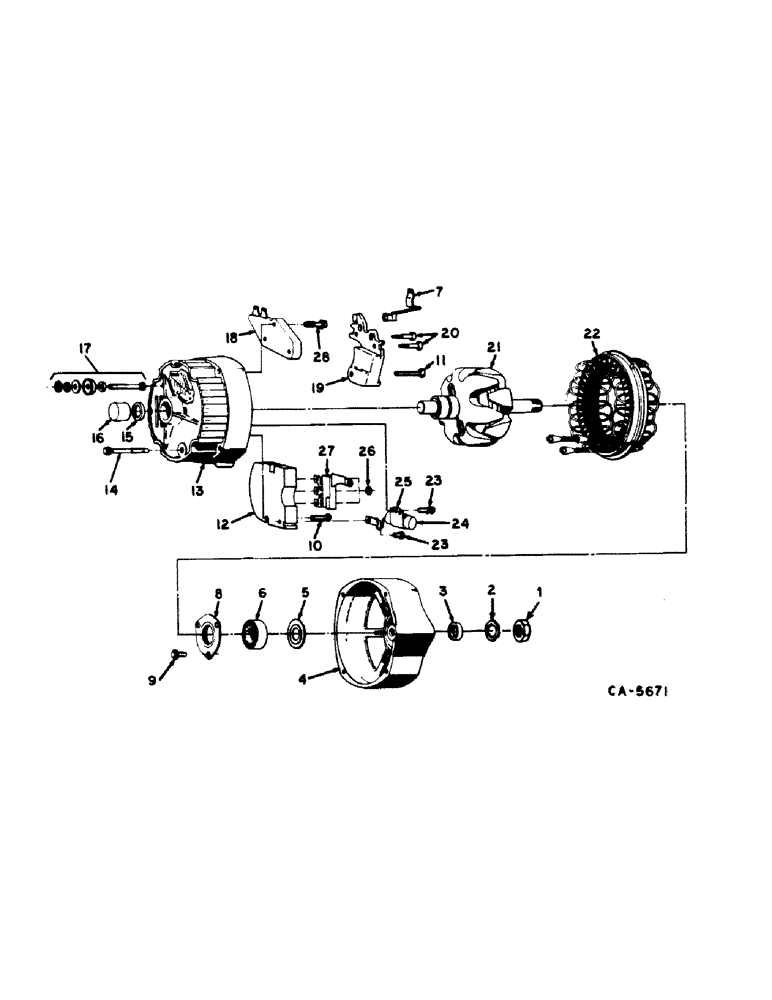

Запчасти Case IH 1420 (08-09) - ELECTRICAL, ALTERNATOR GENERATOR, WITH INTEGRAL SOLID STATE VOLTAGE REGULATOR (06) - ELECTRICAL

.

ALTERNATOR-GENERATOR ASSEMBLY, to replace alternator 1102922, 1103160, 1103184, 1105178 and 1105574 furnish package 91906C91 and alternator 245713C91 Includes: bolt washes and nuts

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

103799A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 61 AMP Alternator

1шт.

103802A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

103802A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

104023A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 80 AMP Alternator

1шт.

104023A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 80 AMP Alternator

1шт.

125849A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 135 ampere

1шт.

125849A1C

CORE-ALTERNATOR

Return Part Number

1шт.

87297244

REMAN-ALTERNATOR

12V 61A

1шт.

87297245

CORE-ALTERNATOR

Return Part Number

1шт.

30476R1

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

BOLT, m10 x 100 pln class 8.8

1шт.

30176R1

WASHER,M10 x 21.5 x 2.5, HT

WASHER, 10mm type b hdn

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

NUT, m10 phc p/t class 10

1шт.

30208R1

NUT,M6, Cl 10

NUT, m6 class 10

1шт.

933833R1

LOCK WASHER,M6

LOCK WASHER, M6

1шт.

1

1915172

NUT

NUT, drive shaft end

1шт.

2

1941978

WASHER

WASHER, drive shaft lock

1шт.

3

1988599

COLLAR

COLLAR, drive end shaft, all except 1105574

1шт.

3

1978940

COLLAR

COLLAR, drive end shaft, for 1105574 only

1шт.

4

A46933

FRAME

FRAME, drive end, all except for 1105574

1шт.

4

1987104

FUNNEL

FRAME, drive end, for 1105574 only

1шт.

5

NOT USED THIS APPLICATION

1шт.

6

594839C91

SPARE PART BEARING, drive end ball, all except 1105574

1шт.

6

1648200C91

BEARING

BEARING, drive end ball, for 1105574 only

1шт.

7

1894568

ELEC CONNECTOR

TERMINAL RELAY, all except 1105574

1шт.

7

1986132

TERMINAL CONNECTOR

TERMINAL RELAY, for 1105574 only

1шт.

8

1971993

PLATE

PLATE, drive end ball bearing retainer, all except for 1105574

1шт.

8

1911263

LARGE PLATE

PLATE, LARGE PLATE, drive end ball bearing retaining, for 1105574 only

1шт.

9

1975736

SCREW

SCREW, bearing retainer plate attaching

3шт.

10

1876668

SCREW

SCREW, rectifier support, all except 1105574

1шт.

10

1984458

SCREW

SCREW, rectifier support, for 1105574 only

1шт.

11

1974020

SCREW

SCREW, brush holder pivot

1шт.

12

585630C1

RECTIFIER

SUPPORT, rectifier, all except 1105574

1шт.

12

1984454

BRIDGE

SUPPORT, rectifier, for 1105574 only

1шт.

13

1975718

FRAME

FRAME, slip ring end

1шт.

14

1956975

BOLT

SCREW, frame attaching

4шт.

15

NOT USED THIS APPLICAITON

1шт.

16

1974862

BUSHING

BEARING, slip ring end

1шт.

17

1975471

PACKAGE

PACKAGE, battery terminal

1шт.

18

585624C1

REGULATOR

REGULATOR, voltage, all except 1105574

1шт.

18

1988949

REGULATOR

REGULATOR, voltage, for 1105574 only

1шт.

19

A47042

HOLDER

HOLDER ASSY, brush and brush

1шт.

20

1876681

SCREW

SCREW ASSY, brush holder insulated

2шт.

21

1986817

ROTOR

ROTOR ASSY, all except 1105574

1шт.

21

1985493

ROTOR

ROTOR ASSY, for 1105574 only

1шт.

22

585629C1

STATOR

STATOR ASSY, all except 1105574

1шт.

22

1986931

STATOR

STATOR ASSY, for 1105574 only

1шт.

23

1851612

SCREW

SCREW W/LOCK WASHER, capacitor bracket and lead attaching

2шт.

24

1978146

CAPACITOR

CAPACITOR ASSY, includes mounting bracket

1шт.

25

1869573

BRACKET

BRACKET, capacitor mounting, all except 1105574, bracket included with capacitor for 1105574

1шт.

26

120622

NUT,#8-32

NUT, #8-32

3шт.

27

A48339

DIODE

RECTIFIER, diode trio

1шт.

28

1894586

SCREW

SCREW ASSY, brush holder ground

1шт.

91906C91

KIT

PACKAGE, alternator completing, consists of

1шт.

91884C1

HARNESS

HARNESS

1шт.

91904C1

HARNESS

HARNESS

1шт.

402314C1

CONNECTION

CONNECTOR

1шт.

702093C1

CABLE TIE

CABLE STRAP STRAP, tie

1шт.

631800C1

TERMINAL CONNECTOR,Female, 1 - 2 mm2

TERMINAL

1шт.

187954

GROMMET,1" ID x 1 3/4" x .062"

GROMMET

1шт.

245952C1

HARNESS

ADAPTER

1шт.

245165C1

SHIELD

SHIELD

1шт.

245163C1

STRAP

STRAP

1шт.

30476R1

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

BOLT, m10 x 100 mm class 8.8

1шт.

30176R1

WASHER,M10 x 21.5 x 2.5, HT

WASHER, 10.8 x 21 x 2.5 mm

1шт.

1014921C1

BOLT

BOLT, m8 x 30 mm class 8.8

1шт.

30183R1

WASHER,M8 x 21.5 x 2.5, HT

WASHER, 8.8 x 21 x 2.5 mm

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

NUT, 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Instructions (NSS) 1/4"

1шт.
