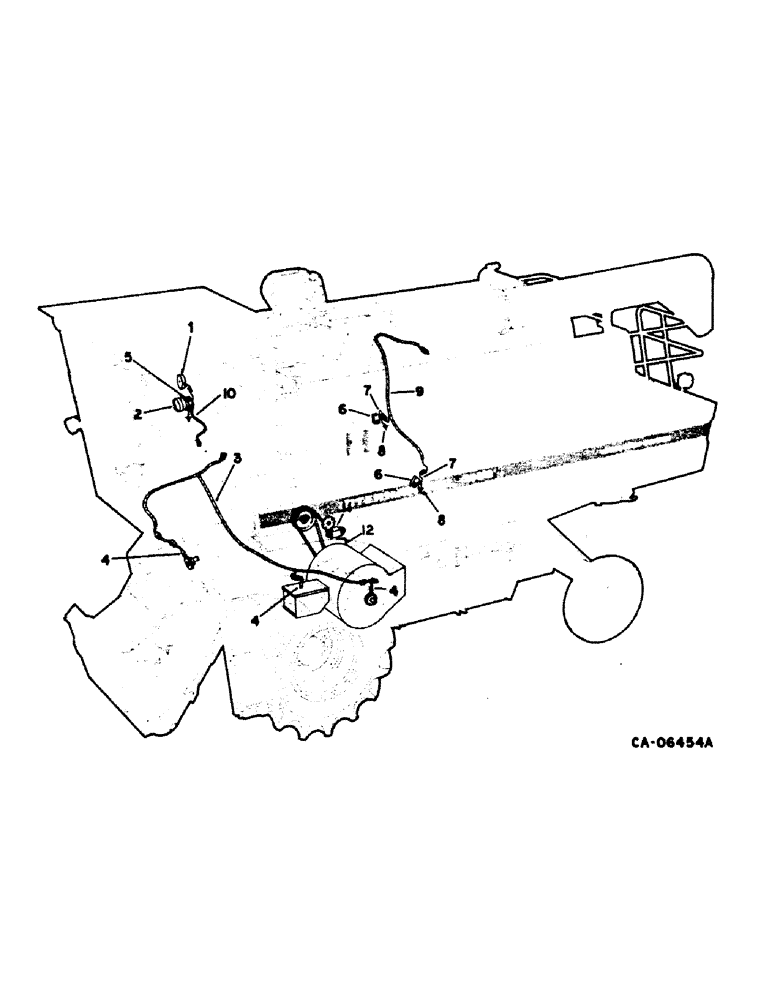

Запчасти Case IH 1420 (08-08) - ELECTRICAL, WIRING DIAGRAM, RIGHT TURN SIGNAL, HEAD LIGHTS, DIGITAL READOUT AND SLIP CLUTCH (06) - ELECTRICAL

1

LAMP ASSY, flasher RH, refer to this group under lights and mountings

1шт.

2

LAMP ASSY, RH head light, refer to this group under lights and mountings

1шт.

3

1301533C1

HARNESS

ASSY, tachometer

1шт.

4

GAGE, reluctance pickup, refer to group 7 under transmission, refer to group 21 under rotor, refer to group 24 under cleaning fan & shields

3шт.

5

178890C1

CABLE

ASSY, headlight ground

1шт.

6

SWITCH ASSY, elevator and shaker shaft alarm, refer to group 23 under shaker shaft and auger drive, refer to group 25 under grain and tailings elevator drive

2шт.

7

187736C1

CABLE

ASSY, slip clutch, Includes: nuts and screw

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss- hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

175008C1

CABLE ASSY.

CABLE ASSY, warning switch ground

2шт.

9

183586C1

HARNESS

ASSY, slip clutch

1шт.

10

1301536C2

HARNESS

ASSY, RH lights

1шт.

11

MOTOR, fan speed control, refer to group 24 under fan drive

1шт.

12

1301537C1

HARNESS

ASSY, fan motor lower

1шт.
