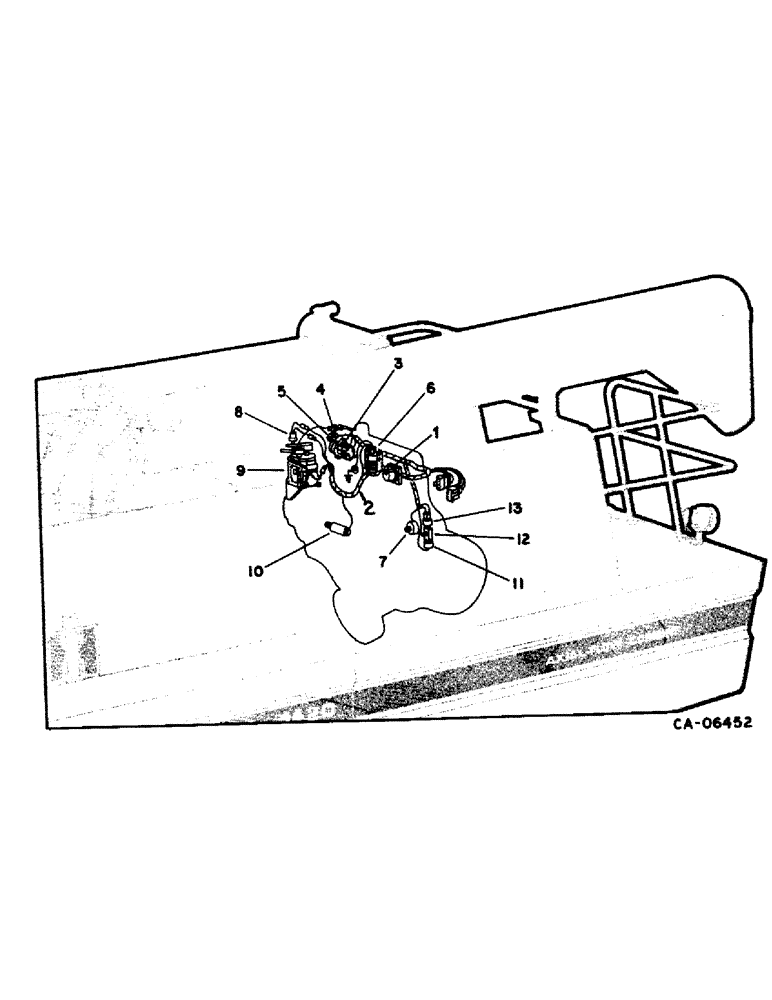

Запчасти Case IH 1420 (08-05) - ELECTRICAL, WIRING DIAGRAM, ENGINE (06) - ELECTRICAL

1

RELAY, cranking motor solenoid, refer to this group under wiring diagram main harness, starter and battery

1шт.

2

245951C1

HARNESS

ASSY, engine, replaces 121745C1, Includes: blade, bolt and washer

1шт.

ref #2 (P/N 245951C1) - is for new alt see SB S4998 - Alternative plug has 2 prongs - 2 wires

1шт.

If DLR has old Alt (Delco) with 3 wires & 3 prong plug needs to order 121745C1.

1шт.

384396R1

SPADE TERMINAL,Male

BLADE, terminal Male

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

25707R1

WASHER,.281" x 5/8" x .075", HDN

.281 x .625 x .051

1шт.

3

ALTERNATOR-GENERATOR, refer to this group under alternator- generator

1шт.

4

121756C2

SENSOR

SENDER, water temperature gage

1шт.

5

107216C1

SWITCH

water hi-temp light

1шт.

6

SOLENOID ASSY, ether injection, refer to group 12 under ether starting

1шт.

7

130707C3

SENDER UNIT

SENDER, oil pressure gage

1шт.

8

SWITCH, high pressure, refer to group 13 under air conditioner compressor and condenser

1шт.

9

CLUTCH ASSY, compressor, refer to group 13 under air conditioner compressor and condenser

1шт.

10

MAGNETO ASSY, solenoid, injection pump, refer to eng-5, section H, under fuel injection pump

1шт.

11

392249R92

SWITCH

low oil pressure

1шт.

12

9409939

TEE,1/8"-27 NPTF Fem Run x 1/8"-27 NPTF Male Br

1/8-27 pln int/int/ext auto pipe

1шт.

444024

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

BUSHING, 1/8 to 1/16 pln auto pipe

2шт.

13

131424C1

SWITCH

pressure

1шт.
