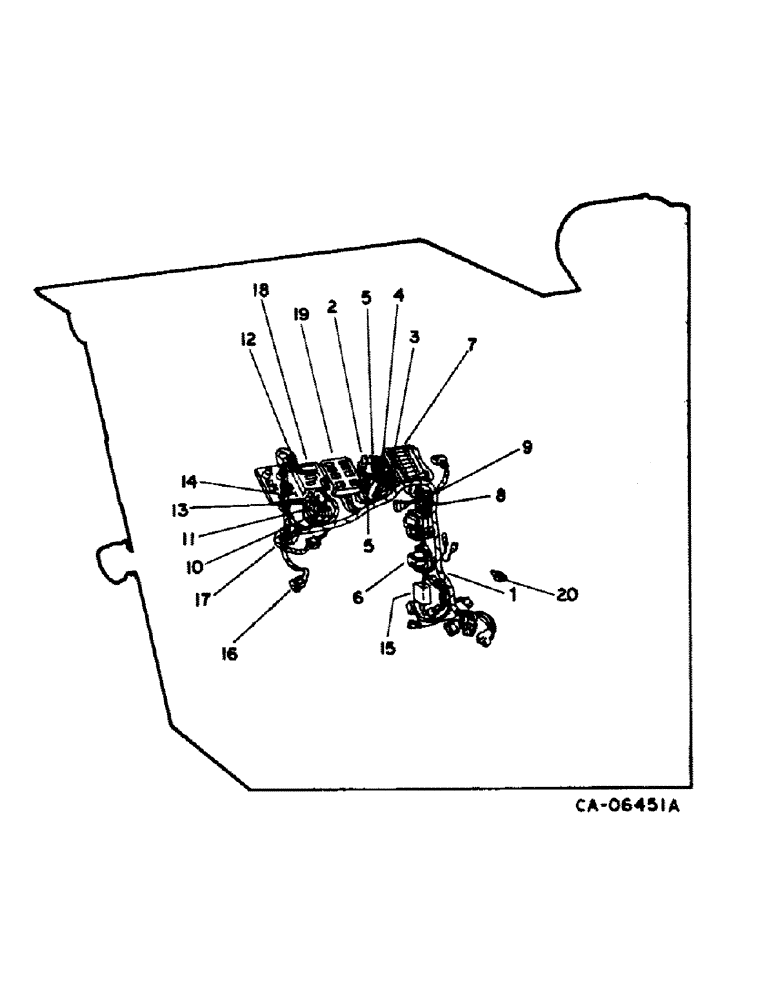

Запчасти Case IH 1420 (08-03) - ELECTRICAL, WIRING DIAGRAM, INSTRUMENT PANEL (06) - ELECTRICAL

1

1301530C3

HARNESS

ASSY, console, Includes screw and nut

1шт.

Ref.1 (P/N 1301530C3) - connector on end 225136C1 & 225154C1

1шт.

NLS

NO LONGER SERVICED

no. 10 x 3/4 znp h/hd mach

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

1шт.

2

107682C1

SWITCH

ASSY, key staring

1шт.

131313C1

KEY, IGNITION

switch

1шт.

365502R1

NUT

ignition switch, Includes: washer

1шт.

375431R1

LOCK WASHER

13/16 int lock

1шт.

3

195605C1

SWITCH

ASSY, night & flasher lights, Includes: screw

1шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

1шт.

4

1301004C1

SWITCH

ASSY, headlights, Includes: screw

1шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

1шт.

5

198960C1

SWITCH

ASSY, ether start, cylinder speed and fan speed, Includes: screw

3шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

1шт.

6

107655C1

SOLENOID SWITCH

SWITCH ASSY, magnetic start, Includes: screw, nuts and washers

1шт.

937875R1

SCREW,Serr, 1/4" - 20

no. 1/4 x 3/4 t/hds

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

120376

NUT,5/16"-18, G5

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

7

196875C1

BLOCK

fuse panel, Includes: nuts, washer and screw

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

1шт.

9426334

FUSE,10 Amp, Type 3AG

cartridge type, 10 amp

4шт.

9428126

FUSE,20 Amp, Type SFE

cartridge type, 20 amp

2шт.

223-31

FUSE,10 Amp, Type 3AG

cartridge type, 30 amp

1шт.

9426868

FUSE,5 Amp, Type 3AG

cartridge type, 5 amp

1шт.

8

121590C1

RELAY

alternator, Includes: screw and nut

1шт.

Ref. 8 Is a 6 volt relay. Diode reduces 12 volt system to 6 volt to accept 6 volt relay. If relay is burning out replace diode.

1шт.

937875R1

SCREW,Serr, 1/4" - 20

no. 1/4 x 3/4 t/hds

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

9

262969C91

FUSE

BREAKER, circuit, 30 amp

2шт.

245870C1

BRACKET

circuit breaker, replaces 1301156C1 and 1202952C1

1шт.

1301157C1

BAR

circuit breaker, Includes: nut, washer and screw

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

10

1301521C1

SWITCH

ASSY, separator clutch

1шт.

11

1301522C1

SWITCH

ASSY, feeder clutch, machines w/o feeder reverser

1шт.

11

245634C1

SWITCH

ASSY, feeder clutch, machines w/feeder reverser

1шт.

12

1301092C1

SWITCH

ASSY, header lift control

1шт.

13

1301175C1

SWITCH

reel lift control, Includes: screw

1шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

1шт.

14

1301176C1

SWITCH

ASSY, reel speed

1шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

1шт.

15

187609C1

RECTIFIER

ASSY, diode, Includes: screw and nut

1шт.

937875R1

SCREW,Serr, 1/4" - 20

no. 1/4 x 3/4 t/hds

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

16

121628C1

BUZZER

audible alarm

1шт.

17

1301079C1

HARNESS

ASSY, header lift handle

1шт.

18

TACHOMETER, multi-position, refer to group 11 under instruments and gages

1шт.

19

GAGE CLUSTER, refer to group 11 under instruments and gages

1шт.

20

245952C1

HARNESS

alternator relay connector

1шт.
