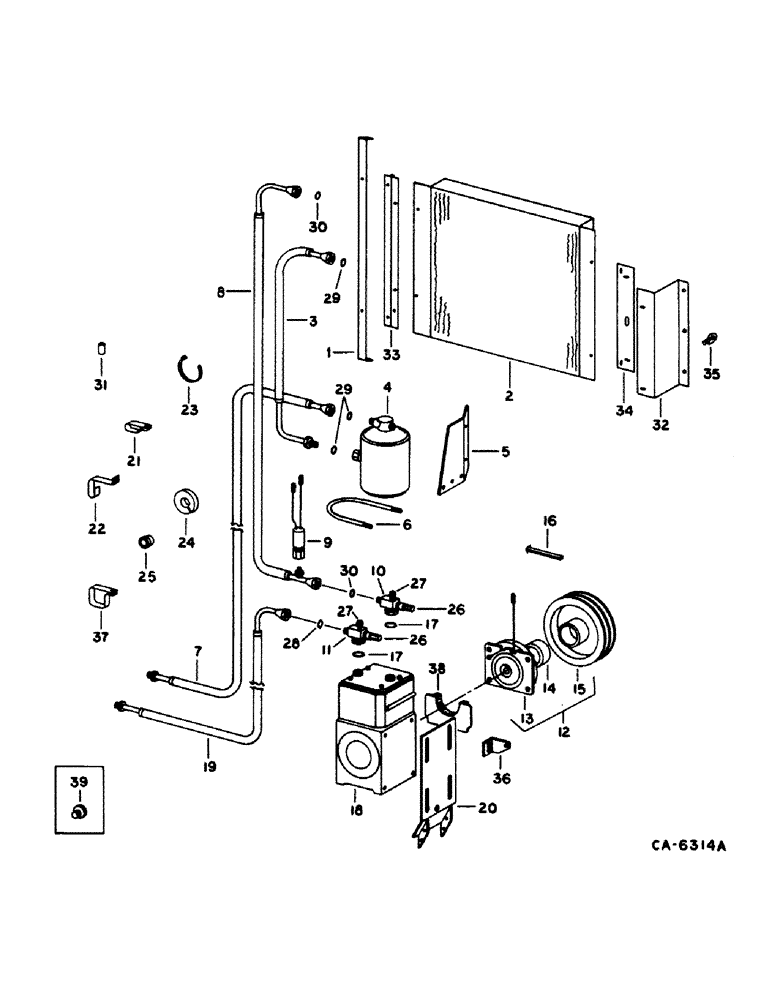

Запчасти Case IH 1420 (13-20) - SUPERSTRUCTURE, AIR CONDITIONER, COMPRESSOR AND CONDENSER (05) - SUPERSTRUCTURE

1

183389C1

SUPPORT

SUPPORT, condenser, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT, 5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

SCREW, 5/16 x 1/2 slt-truss-hd

1шт.

2

183901C2

CONDENSER

COIL ASSY, air conditioner condenser, Includes: nut and screw

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT, 1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

SCREW, 1/4-20 x 1/2 slt-truss-hd

1шт.

3

183909C2

HOSE ASSY.

HOSE ASSY, dryer to condenser, 30 in. 762mm

1шт.

4

118304C1

RESERVOIR

FILTER, receiver

1шт.

5

195912C2

SUPPORT

SUPPORT ASSY, filter dryer

1шт.

6

195915C1

BOLT,1/4" - 20 x 5.2", Class 5

BOLT, receiver filter, Includes: nut and washer

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

NUT, 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

7

183906C1

HOSE,7.92mm ID x 5410.2mm L

HOSE ASSY, dryer to cab, 220 in., 5588mm

1шт.

8

183911C1

HOSE

HOSE ASSY, condenser to compressor, 60 in., 1524mm

1шт.

9

111266C1

SWITCH, A/C HIGH PRE

SWITCH, high pressure

1шт.

10

183903C91

VALVE

VALVE ASSY, service

1шт.

11

183902C91

VALVE

VALVE ASSY, service

1шт.

12

143405C91

PULLEY

CLUTCH ASSY, compressor, incudes ref nos. 13 thru 15

1шт.

13

143407C1

COIL ASSY.

COIL ASSY, field, replaces 117822C1, Includes: bolt

1шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

BOLT, 1/4 x 1/2 flange lock

1шт.

14

221438H1

BEARING ASSY,29.99mm ID x 62mm OD x 26.99mm W

BEARING, double row ball

1шт.

15

143406C1

PULLEY ASSY.

PULLEY ASSY W/BEARING, includes ref. no. 14, 7 in. OD, 177.8mm OD, Includes: bolt

1шт.

28598R1

BOLT,Hex, 5/16" - 24 x 1 1/4", Gr 5

BOLT, prev torq 5/16-24 x 1-1/4 type 5, znd

1шт.

1283257C1

WASHER

WASHER

1шт.

16

280210C2

BELT,53.50" L

Compressor

1шт.

17

431762C1

GASKET

GASKET, service valve

2шт.

18

COMPRESSOR, air conditioner, for components refer to this group under compressor, Includes: bolts and washers

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, 3/8 x 1 type 5

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

BOLT, 3/8 x 1-1/2 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

WASHER, .406 x 1.000 x .105

1шт.

19

183907C1

HOSE ASSY.

HOSE ASSY, compressor to cab, 200 in., 5080mm

1шт.

20

131388C2

BRACKET

BRACKET ASSY, compressor mount, Includes: bolts, nut and washers

1шт.

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

BOLT, 5/16 x 2-1/2 type 5

1шт.

180112

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

BOLT, 5/16 x 2-3/4 type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT, 5/16 flange lock

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, 3/8 x 1 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21496R1

WASHER

WASHER, .344 x .750 x .105

1шт.

21

154695C2

CLAMP

CLAMP, hose, Includes: nut and screws

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT, 5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

SCREW, 5/16 x 1 znp slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 znp slt-truss-hd

1шт.

22

394271R1

CLIP

CLIP, hose support, Includes: screw and nut

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT, 5/16 flange lock

1шт.

23

291207C1

CLAMP

TIE, hose support

1шт.

23

702093C1

CABLE TIE

CABLE STRAP TIE, hose support

1шт.

24

167955C2

SEAL

SEAL, hose

1шт.

25

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

GROMMET, air conditioner hose, 3/4 ID

1шт.

25

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

GROMMET, air conditioner hose, 1.0 ID

1шт.

26

118185C1

CAP ASSY.

CAP ASSY, valve stem

2шт.

27

118188C1

CAP

CAP, seal

2шт.

28

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

O-RING, hose

1шт.

29

359158R1

O-RING,0.301" ID x 0.07" Width

O-RING, -011, 70 Duro, .031" ID x .070" Thk, Hose

3шт.

30

375271R1

O-RING,0.426" ID x 0.07" Width

O-RING, hose

2шт.

31

150596C1

SPACER,1/2" Tube x 1 3/16"

SPACER, for hose clamp, Includes: nut and screw

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT, 5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

SCREW, 5/16 x 1 znp slt-truss-hd

1шт.

32

183441C1

SUPPORT

SPARE PART SUPPORT ASSY, condenser

1шт.

33

183440C1

HINGE

HINGE, condenser pivot, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT, 5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

SCREW, 5/16 x 1/2 slt-truss-hd

1шт.

34

183114C1

BAR

SPARE PART BAR, condenser latch

1шт.

35

188029C1

LATCH

LATCH CONDENSER

1шт.

36

131392C1

SUPPORT

SUPPORT, condenser bracket top, Includes: bolt and nut

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

120376

NUT,5/16"-18, G5

NUT, 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

37

1301387C2

CLIP

CLIP, heater & a/c hoses

7шт.

38

245983C1

AIR CONDITIONER

WICK ASSY, a/c compressor

1шт.

39

20990R1

PLUG

PLUG, 3/8-18 pln h/hd pipe, used for plugging holes in engine when combine is not equipped with heater

2шт.
