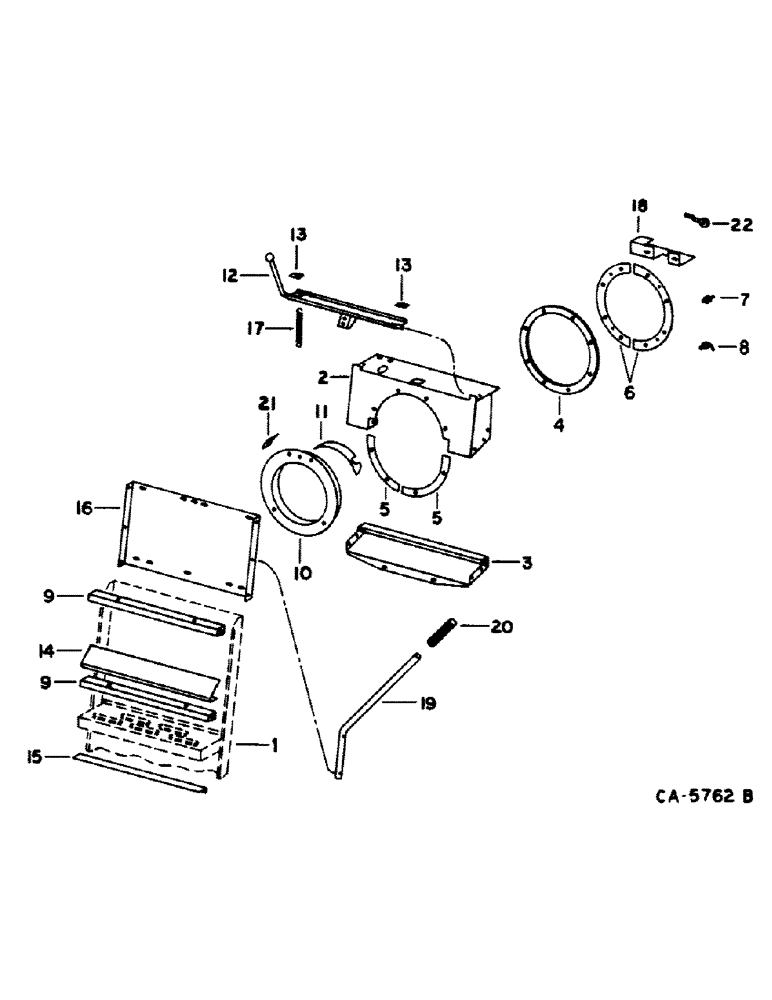

Запчасти Case IH 1420 (13-09) - SUPERSTRUCTURE, PIVOTING LADDER (05) - SUPERSTRUCTURE

1

LADDER AND STEPS, refer to this group under fixed ladder and ladder extensions

1шт.

2

187941C1

SUPPORT

ASSY, pivot extension

1шт.

3

187949C2

SUPPORT

ASSY, pivot extension ctr. lwr., Includes: bolt and nut

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

BOTL, 5/16 x 1/2 hex-hd flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

4

187951C1

RETAINER

pivot outer

1шт.

5

187952C1

RETAINER

pivot ring

2шт.

6

187953C1

RETAINER

pivot ring lube, Includes: screw and nut

2шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

7

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 taper lube

2шт.

8

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

2шт.

9

183544C2

SUPPORT

ASSY, ladder pivot, Includes: screw

2шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

10

187955C3

FLANGE

ladder pivot

1шт.

11

187984C3

SUPPORT

ladder latch, Includes: bolt and nut

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

12

187957C1

LEVER

ASSY, ladder pivot latch

1шт.

13

187962C1

SUPPORT

latch hinge, Includes: bolt and nut

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

14

183692C1

SUPPORT

ladder upper, Includes: bolt and nut

1шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

1/4 x 1/2 flange lock

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

15

1301040C1

ANGLE

ladder upper cover, Includes: bolt and nut

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

16

183667C1

SUPPORT

long ladder filler

1шт.

17

398763R2

SPRING

latch return

1шт.

18

1301262C2

STOP

ANGLE, latch stop, Includes: bolt and nut

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

19

1301039C1

TUBE,0.375" ID, 0.75" OD, 17, 10.5" Length

pivot ladder, Includes: bolts, nuts, screw and washer

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

178372R1

WASHER

.406 x 1.250 x .054

1шт.

24843R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

20

200579C1

GRIP

pivot ladder lever

1шт.

21

1301172C3

SUPPORT

ladder latch adj

1шт.

20617R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

5/16 x 1 type 8, Includes: bolt

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 high torque

1шт.

22

1301260C1

EYEBOLT,3/8" - 16 x 72.91mm

EYE BOLT, latch adjusting, Includes: bolt, nut and washer

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
