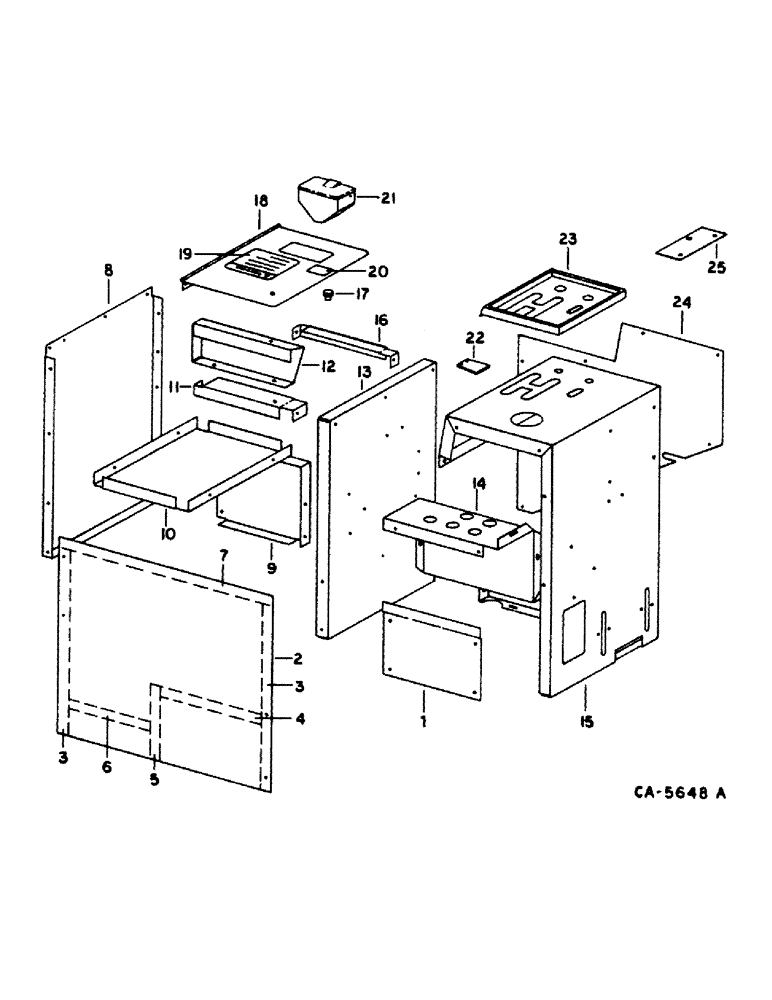

Запчасти Case IH 1420 (13-04) - SUPERSTRUCTURE, LEFT CONSOLE (05) - SUPERSTRUCTURE

1

1301517C1

SUPPORT

left console lower outer, Includes: screw

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 h/whd tap

1шт.

2

193061C3

PLATE

left console outer cover, Includes: screw

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 h/whd tap

1шт.

3

STRIP, console cover, use 18.3 in. from bulk stock marked 195917C2

2шт.

4

STRIP, console cover, use 1.8 in. from bulk stock marked 195917C2

1шт.

5

STRIP, console cover, use 7.0 in. from bulk stock marked 195917C2

1шт.

6

STRIP, console cover, use 9.0 in. from bulk stock marked 195917C2

1шт.

7

STRIP, console cover, use 23.0 in. from bulk stock marked 195917C2

1шт.

8

193009C3

SUPPORT

LH console front, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

9

196595C1

SUPPORT

manual box lower inner

1шт.

10

193010C2

SUPPORT

manual box, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

11

193011C1

SUPPORT

manual box cover left, Includes: screw and nut

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

12

193013C1

SUPPORT

cab LH side, Includes: screw and nut

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

13

193008C4

SUPPORT

manual box rear, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

14

195533C4

SUPPORT

left console lower, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

15

193065C7

SUPPORT

operator control rear left, Includes: nut and screw

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

16

193012C1

SUPPORT

manual box cover right, Includes: nut and screw

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

17

198981C1

KNOB

manual box door, Includes: screw and washer

1шт.

160046

SCREW,Cross Pan Hd, #10 - 32 x 1/2"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

18

186187C92

DOOR

ASSY, LH manual box, Includes: screw, nut and Ref. nos. 19 and 20

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

19

2753929R5

DECAL

PRODUCT GRAPHIC, safety and operating

1шт.

20

61907C1

DECAL

PRODUCT GRAPHIC, operating caution

1шт.

21

111396C1

ASH TRAY

TRAY, ash

1шт.

22

195239C2

BAR

h pattern filler, Includes: nut and screw

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

23

198805C1

COVER

left console, Includes: screw, bolt and nut

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW, #10-16 x 3/4 phc o/hdcr tap, tap

1шт.

187797C1

BOLT,Hex Serr Flg, 1/4" - 20 x 1"

1/4 x 1 hex-hd flange

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

24

193056C1

PLATE

left console inner, Includes: screw

1шт.

24390R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 1/2"

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
