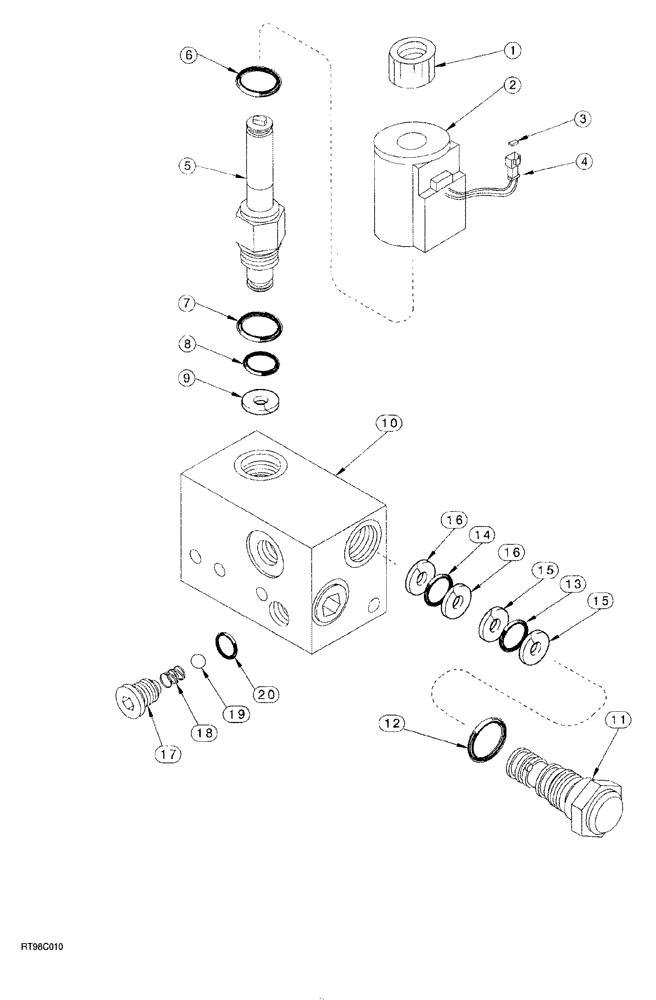

Запчасти Case IH AFS (04-24) - VALVE, PROPORTIONAL FLOW CONTROL (PRIOR TO MODEL YEAR 1999) (35) - HYDRAULIC SYSTEMS

226734A3

VALVE

proportional flow control, Includes Ref: 1-20

1шт.

1

188106A1

NUT

special

1шт.

2

188105A1

SOLENOID

without diode, 12 volt, DC

1шт.

3

225318C1

ELEC CONNECTOR,2 Pin

CONNECTOR

1шт.

4

225315C1

ELEC CONNECTOR,Male, 2 Pin

wedge

1шт.

5

254969A1

VALVE

flow control without coil

1шт.

304391A1

SEAL KIT

seal, Includes Ref: 6-9

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING

1шт.

7

NSS

NOT SOLD SEPARAT

0-RING

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER backup

1шт.

10

278201A1

VALVE BODY

MANIFOLD

1шт.

11

278200A1

VALVE

differential pressure sensing

1шт.

304391A1

SEAL KIT

seal, Includes Ref: 12-16

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER backup

2шт.

16

NSS

NOT SOLD SEPARAT

WASHER backup

2шт.

280025A1

KIT

sense valve check, Includes Ref: 17-20

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING

1шт.

19

NSS

NOT SOLD SEPARAT

BALL steel

1шт.

20

NSS

NOT SOLD SEPARAT

GUIDE spring

1шт.
