Запчасти Case IH AFS (02-48) - PACKAGE - BY-PASS MOISTURE SENSOR WITHOUT SENSOR (2100 & 2300 COMBINES WITH 2000 MONITOR SYSTEM) (88) - ACCESSORIES

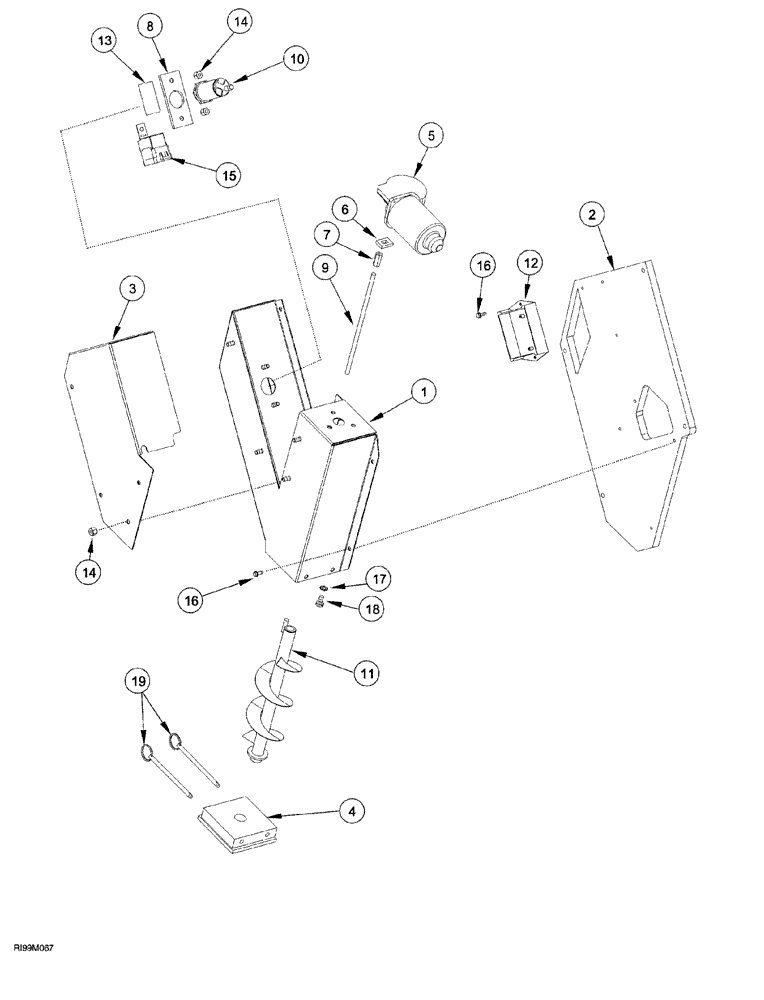

Схема запчастей Case IH AFS - (02-48) - PACKAGE - BY-PASS MOISTURE SENSOR WITHOUT SENSOR (2100 & 2300 COMBINES WITH 2000 MONITOR SYSTEM) (88) - ACCESSORIES
8
16
15
10
5
17
19
2
18
13
3
4
7
6
14
11
1
16
14
12
9

Артикул

Название

Примечание

Количество

373423A1

PACKAGE

bypass moisture sensor, Includes Ref: 1-19

1шт.

373648A1

SENSOR

ASSEMBLY bypass moisture, Includes Ref: 1-19

1шт.

1

333033A1

HOUSING

outer moisture sensor

1шт.

2

363860A1

SUPPORT

BLOCK spacer

1шт.

3

361020A1

COVER

moisture sensor electronics

1шт.

4

363154A1

BLOCK

auger retaining

1шт.

5

364837A1

MOTOR, ELECTRIC

byass auger drive

1шт.

5

364837A1R

REMAN-ELECTRIC MOTOR

byass auger drive

1шт.

5

364837A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

6

364845A1

GUIDE

Auger Driving

1шт.

7

368947A1

COUPLING,1/4" - 20

.250-20 x .875

1шт.

8

368948A1

PLATE

mounting proximity switch

1шт.

9

364843A1

MOUNTING ROD

threaded guide

1шт.

10

364838A1

SWITCH

moisture sensor proximity

1шт.

11

364194A1

AUGER

moisture sensor bypass

1шт.

12

364842A1

PRINTED CIRCUIT BOAR

MODULE bypass control

1шт.

13

368935A1

COVER ASSY

moisture sensor proximity switch

1шт.

14

231-1444

NUT,1/4"-20, GB

6шт.

15

293256A2

RELAY,12V

12 volt, 40 amp., weatherproof

1шт.

16

280-2448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

hex washer head, No. 8 NC x 1/2 inch

7шт.

17

493-41026

LOCK WASHER,Ext Tooth, 1/4"

3шт.

18

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

19

373712A1

PIN

quick release

2шт.

373178A1

PLATE

TEMPLATE bypass moisture sensor, included in the kit, but not shown

1шт.

368798A1

SCREW,Truss HD, 1/4" - 20 x 1", Gr 8

1/4 x 1, included in the kit, but not shown

2шт.

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

Included in the kit, but not shown

4шт.

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Included in the kit, but not shown

4шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Included in the kit, but not shown

10шт.

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Included in the kit, but not shown

6шт.

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

Included in the kit, but not shown

2шт.

7-92680

INSTRUCTION

bypass moisture sensor installation, included in the kit, but not shown

1шт.

144386A1

DANGER DECAL

Keep hand out of auger, English, included in the kit, but not shown

1шт.

184631A1

DANGER DECAL

Keep hand out of auger, French, Included in the kit, But not shown

1шт.

184632A1

DANGER DECAL

Keep hand out of auger, Spanish, included in the kit, but not shown

1шт.

278572A1

DANGER DECAL

Keep Hand Out, Brazil, Portuguese, included in the kit, but not shown

1шт.

425-144

JAM NUT,Jam, 1/4"-20, G5

Included in the kit, but not shown

4шт.

Выбрано товаров: 36
