Запчасти Case IH AFS (02-10) - PACKAGES AND KITS - AFS YIELD MONITOR (2188 AND 2388 COMBINES) (88) - ACCESSORIES

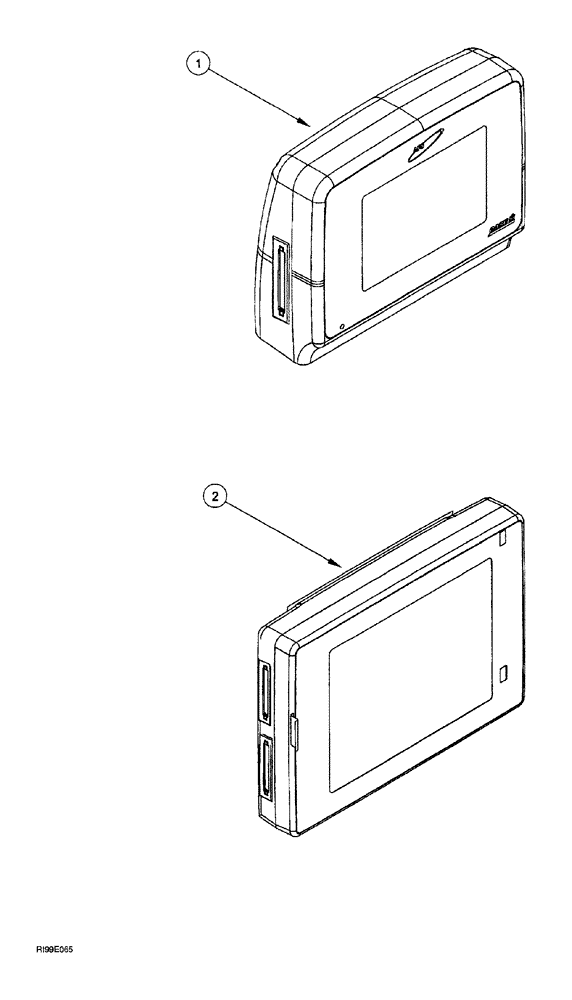

Схема запчастей Case IH AFS - (02-10) - PACKAGES AND KITS - AFS YIELD MONITOR (2188 AND 2388 COMBINES) (88) - ACCESSORIES
2
1

Артикул

Название

Примечание

Количество

1

336459A2

PACKAGE

Universal Display, see Figure 02-32

1шт.

2

336468A2

AFS PARTS & PACKAGES

Universal Display Plus, see Figure 02-40

1шт.

3

336469A2

PACKAGE

Yield Monitor Interface Unit, see Figure 02-34

1шт.

5

336472A1

PACKAGE

yield monitor adapter, 2188 and 2388 prior to 1999, see Figure 02-15A

1шт.

6

225259A2

PACKAGE

yield monitor retrofit, used on machines built prior to 1996, Figures 02-14 (Ref.29-33), 02-20 (Ref. 11), 02-24 (Ref. 15 - 22), ship direct

1шт.

7

336471A2

SENSOR

yield monitor sensors, used on 2188 and 2388 built machines, see Figure 02-16, 02-26 (Ref. 1-13), 02-28 (Ref. 1, 12 ,13, 14), 02-49 and 02-51, New in 2000

1шт.

Выбрано товаров: 6
