Запчасти Case IH AFS (02-08) - PACKAGES AND KITS - YIELD MONITOR (2144, 2166, 2344 AND 2366 COMBINES) (88) - ACCESSORIES

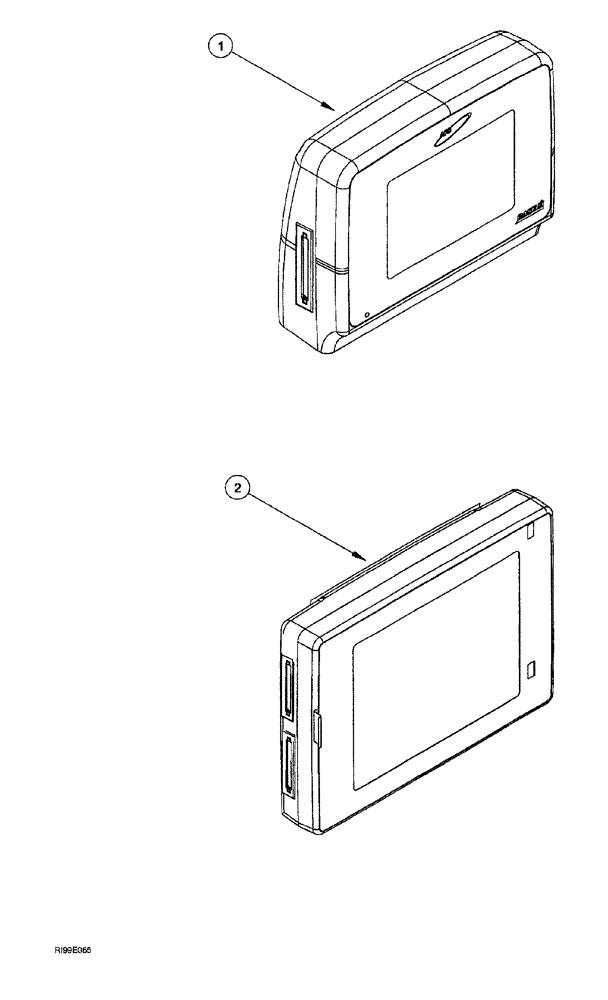

Схема запчастей Case IH AFS - (02-08) - PACKAGES AND KITS - YIELD MONITOR (2144, 2166, 2344 AND 2366 COMBINES) (88) - ACCESSORIES
2
1

Артикул

Название

Примечание

Количество

1

336459A2

PACKAGE

Universal Display, see Figure 02-32

1шт.

2

336468A3

AFS PARTS & PACKAGES

Universal Display Plus, see Figure 02-40

1шт.

3

336469A2

PACKAGE

Yield Monitor Interface Unit, see Figure 02-34

1шт.

5

336472A2

PACKAGE

yield monitor adapter, 2100 and 2300 Series prior to 1999, see Figure 02-15A

1шт.

6

225259A2

PACKAGE

yield monitor retrofit, used on machines built prior to 1996, parts list Figures: 02-14 (Ref. 29 - 33), 02-20 (Ref.11), 02-24 (Ref. 15 - 22), ship direct

1шт.

7

336470A2

SENSOR

yield monitor sensors, used on 2100 and 2300 Series built machines, see parts list Figures: 02-16, 02-26 (Ref.1 - 13), 02-28 (Ref. 1, 12, 13, 14), 02-48 and 02-50, New in 2000

1шт.

Выбрано товаров: 6
