(05-36) - IMPLEMENT CONNECTOR MOUNTING (MX MAGNUM TRACTOR)

Запчасти Case IH AFS (05-36) - IMPLEMENT CONNECTOR MOUNTING (MX MAGNUM TRACTOR) (55) - ELECTRICAL SYSTEMS

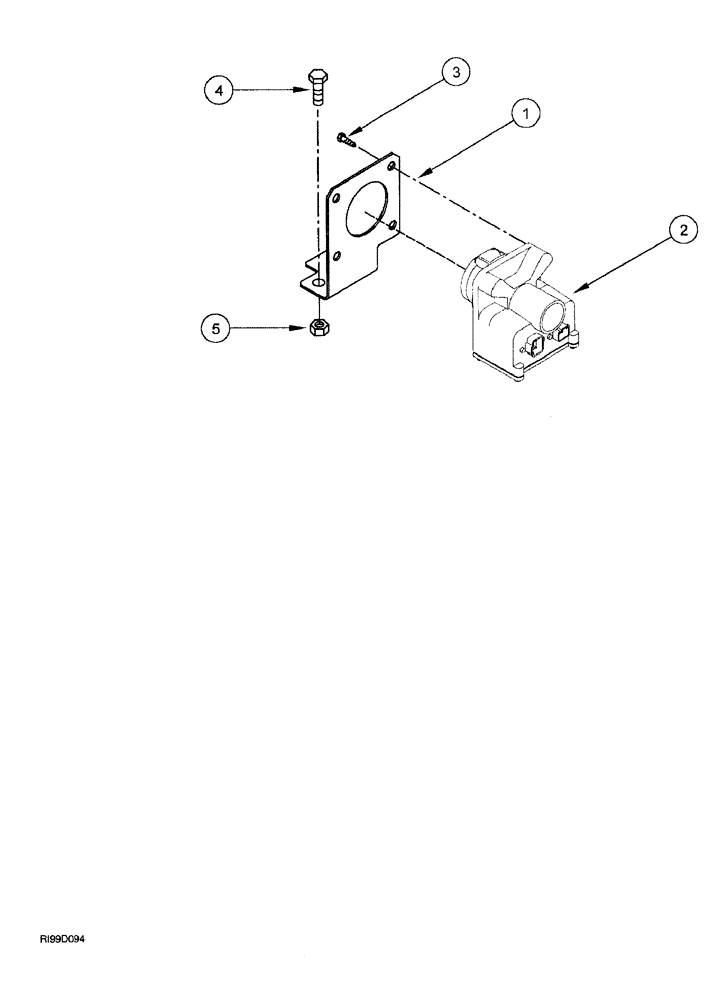

Схема запчастей Case IH AFS - (05-36) - IMPLEMENT CONNECTOR MOUNTING (MX MAGNUM TRACTOR) (55) - ELECTRICAL SYSTEMS
3
2
1
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

296190A1

SUPPORT

implement receptacle

1шт.

2

323597A1

MULTIPOLE CONNECTOR

implement, electrical

1шт.

3

779-34616

SELF-TAP SCREW,Hex Hd, M6.3 x 16

hex head, 6.3 x 16 mm

4шт.

4

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, included in the AFS display installation kit, not shown

1шт.

278316A1

CLIP,ELECTRICAL

retainer, included in the AFS display installation kit, not shown

3шт.
