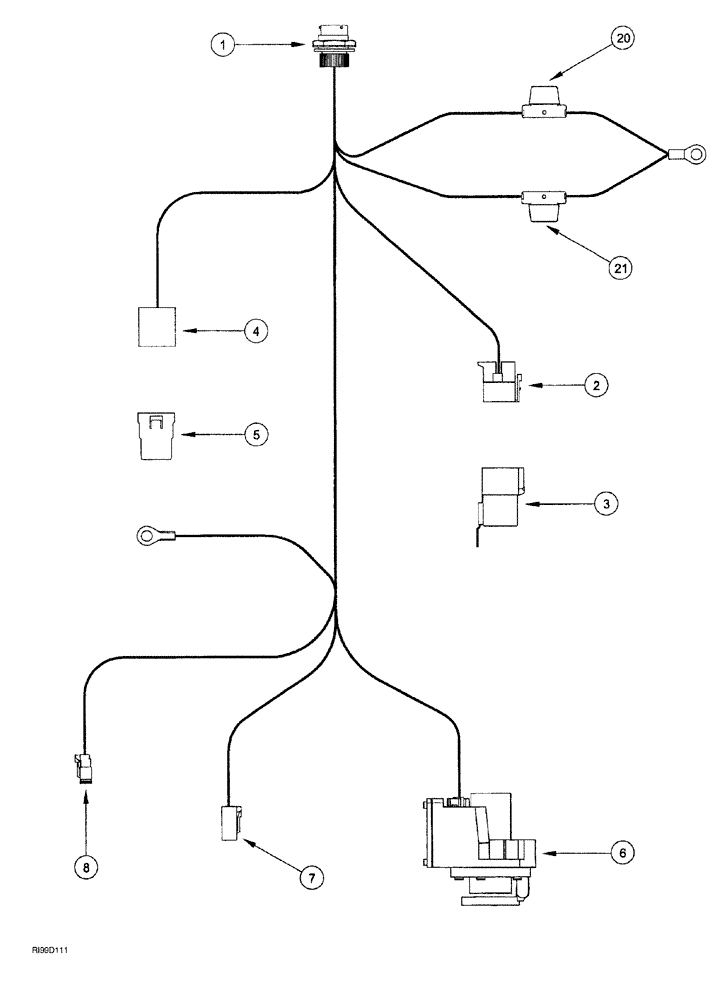

Запчасти Case IH AFS (05-34) - HARNESS (MX MAGNUM SERIES TRACTOR - OUTSIDE CAB) (55) - ELECTRICAL SYSTEMS

347955A1

HARNESS

MX Magnum, outside cab, Includes Ref: 1-8

1шт.

1

305677A1

CONNECTOR, ELEC

CONNECTOR AFS

1шт.

2

225368C1

CONNECTOR, ELEC

CONNECTOR

1шт.

3

296541A1

RELAY

80 amp.

1шт.

4

297910A1

ELEC CONNECTOR,Female, 5 Pin

5-way

1шт.

5

293256A1

RELAY

12 volt, 40 amp.

1шт.

6

323597A1

MULTIPOLE CONNECTOR

implement, electrical

1шт.

7

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4-cav plug DT series

1шт.

8

225316C1

ELEC CONNECTOR,Female, 2 Pin

electrical

1шт.

20

338055A1

FUSE,30A, Maxival, Green

1шт.

21

338054A1

FUSE,20A, Maxival, Yellow

1шт.
