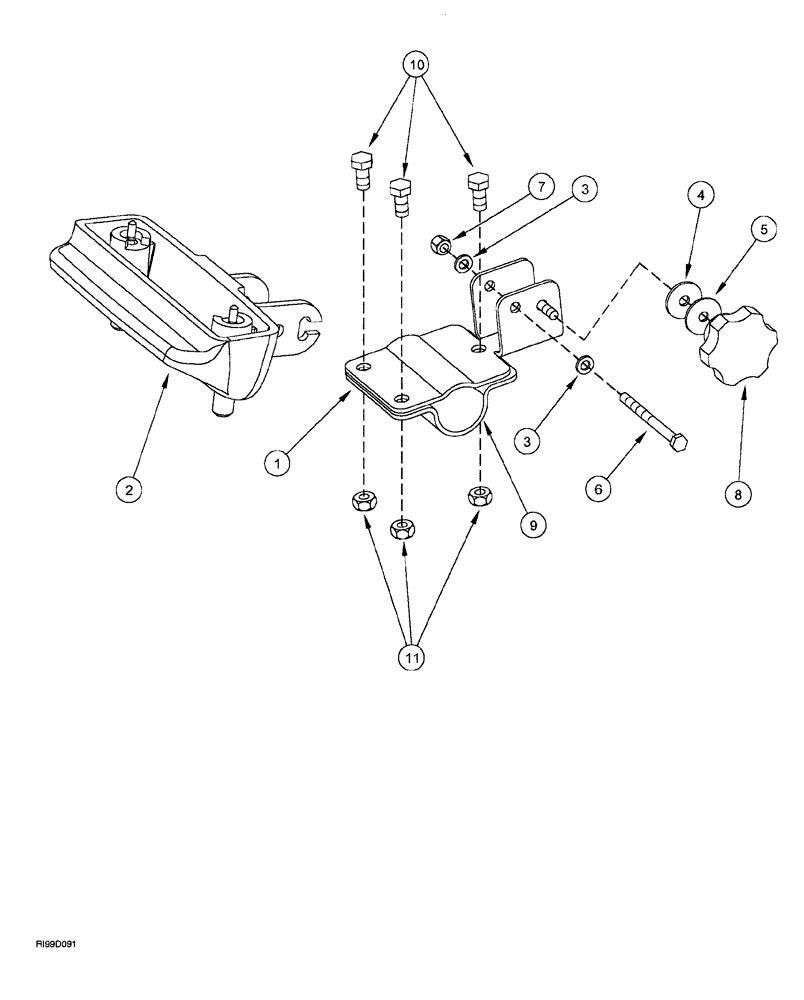

Запчасти Case IH AFS (05-26) - CDU / ECDU MOUNTING (MX, 5100 AND 5200 MAXXUM ROPS/CANOPY, C50 - C100 PLATFORM & STRADDLE TRACTOR) (55) - ELECTRICAL SYSTEMS

1

339733A1

BASE

BRACKET mounting

1шт.

2

349024A1

BRACKET

mounting display

1шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

4

319725A1

RUBBER WASHER

nonmetallic

1шт.

5

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

6

814-6070

BOLT,Hex, M6 x 1 x 70mm, Cl 8.8

hex, full threads, 6-1.0 x 70 mm

1шт.

7

832-10406

NUT,M6 x 1, Cl 8

1шт.

8

319729A1

KNOB

1шт.

9

339719A1

CLAMP

mounting

1шт.

10

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.
