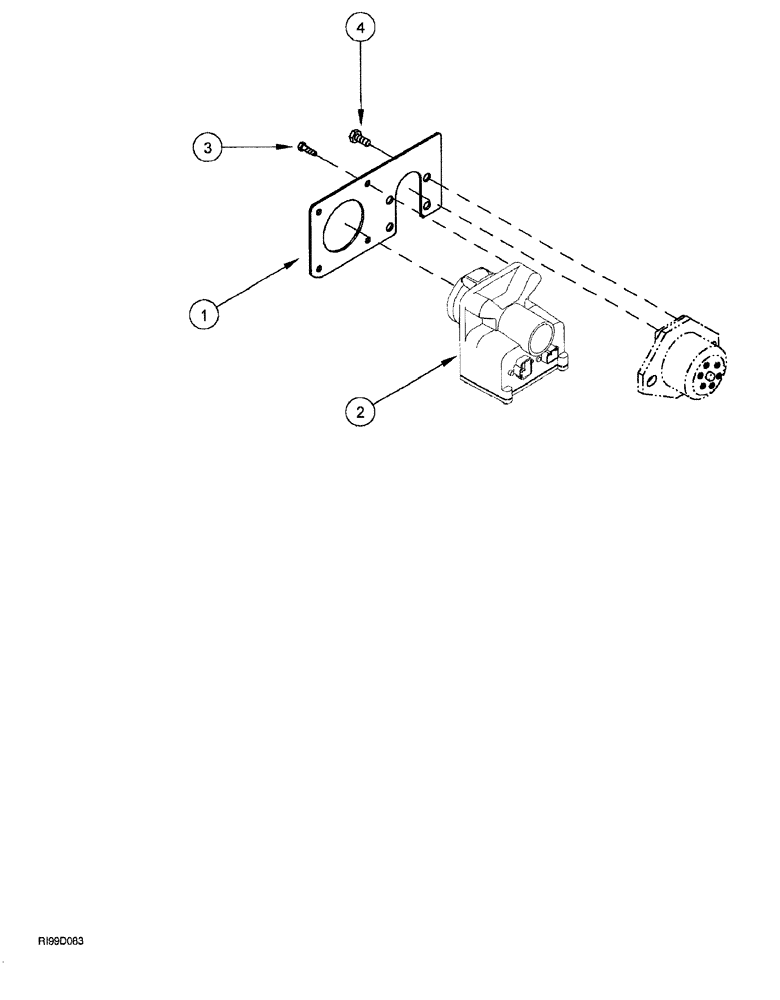

Запчасти Case IH AFS (05-24) - IMPLEMENT CONNECTOR MOUNTING (CX50 - CX100 CAB TRACTOR, MX MAXXUM TRACTORS) (55) - ELECTRICAL SYSTEMS

1

298617A1

PLATE

implement receptacle

1шт.

2

323597A1

MULTIPOLE CONNECTOR

implement, electrical

1шт.

3

779-34616

SELF-TAP SCREW,Hex Hd, M6.3 x 16

hex head, 6.3 x 16 mm

4шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, included in the AFS display installation kit, not shown

1шт.

417-524

BOLT,Sq Hd, 5/16" - 18 x 1-1/2", Gr 2

battery terminal, 5/16-18 x 1.5 inch, grd 2, included in the AFS display installation kit, not shown

2шт.

425-105

NUT,5/16"-18, G5

Battery terminal, Included in the AFS display installation kit, Not shown

2шт.

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

flat, 9 x 17 x 2 mm, hardened, included in the AFS display installation kit, not shown

4шт.
