(05-20) - HARNESS (5100 AND 5200 SERIES CAB, CX50 - CX100, MX MAXXUM CAB TRACTORS)

Запчасти Case IH AFS (05-20) - HARNESS (5100 AND 5200 SERIES CAB, CX50 - CX100, MX MAXXUM CAB TRACTORS) (55) - ELECTRICAL SYSTEMS

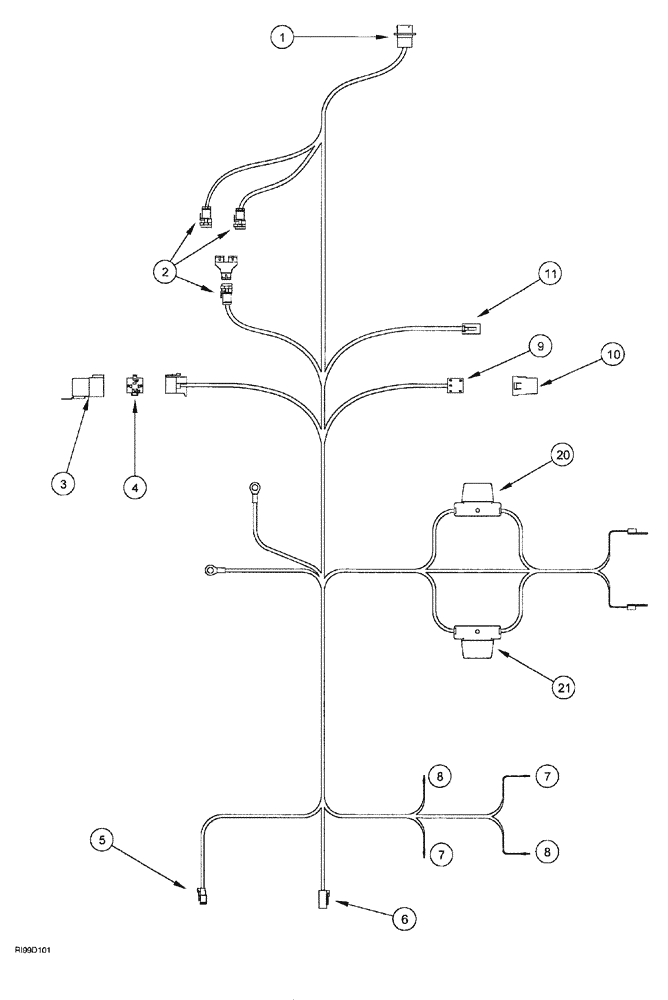

Схема запчастей Case IH AFS - (05-20) - HARNESS (5100 AND 5200 SERIES CAB, CX50 - CX100, MX MAXXUM CAB TRACTORS) (55) - ELECTRICAL SYSTEMS
11
7
10
9
8
21
6
3
7
4
2
5
1
20
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

344548A1

HARNESS

tractor to implement, Includes Ref: 1, 2, 3, 5, 6, 7, 8, 9, 10, 11

1шт.

1

305677A1

CONNECTOR, ELEC

CONNECTOR AFS

1шт.

2

298496A1

ELEC CONNECTOR,4 Pin

plug, 4 Pin

3шт.

3

296541A1

RELAY

80 amp.

1шт.

5

225316C1

ELEC CONNECTOR,Female, 2 Pin

electrical

1шт.

6

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4-cav plug DT series

1шт.

7

280386A1

ELEC CONNECTOR,Nickel, 2.0 - 3.0mm

size 12

2шт.

8

280384A1

ELEC. TERMINAL PIN

size 8

2шт.

9

297910A1

ELEC CONNECTOR,Female, 5 Pin

5-way

1шт.

10

293256A1

RELAY

12 volt, 40 amp.

1шт.

11

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4-cav plug DT series

1шт.

20

338055A1

FUSE,30A, Maxival, Green

1шт.

21

338054A1

FUSE,20A, Maxival, Yellow

1шт.
