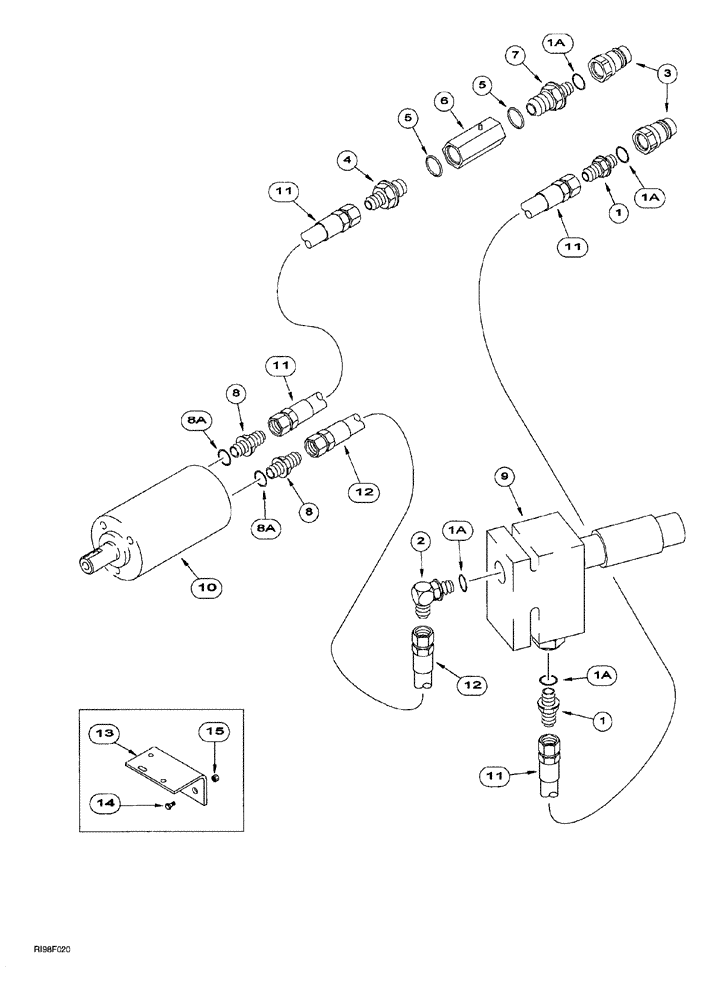

Запчасти Case IH AFS (04-10) - HYDRAULIC CIRCUIT - SINGLE MODULE (35) - HYDRAULIC SYSTEMS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

1a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

2

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj.

1шт.

3

1285718C2

QUICK MALE COUPLING

self-sealing male, 3/4-16 inch thread

2шт.

4

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

6

1279338C1

VALVE

check

1шт.

7

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Straight

1шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

9

REF

INSTRUCTION

VALVE see Figure 04-24

1шт.

10

REF

INSTRUCTION

MOTOR see Figure 04-13

1шт.

11

1261441C1

HYDRAULIC HOSE

HOSE 5842 mm (230 inch) long, for 4, 6 or 8 row non-folding trailing or 8 row wide vertical fold

2шт.

11

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

For 4, 6 or 8 row non-folding mounted

2шт.

11

1264172C2

HYDRAULIC HOSE,6.40 mm ID x 2665.00 mm, SAE 100R1

HOSE 2667 mm (105 inch) long, for 8 row mounted vertical fold

2шт.

12

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

1шт.

13

1547156C3

ANGLE

BRACKET valve mounting

1шт.

14

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

carriage, 5/16 NC x 1-1/4 inch

4шт.

15

425-105

NUT,5/16"-18, G5

4шт.

8a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
