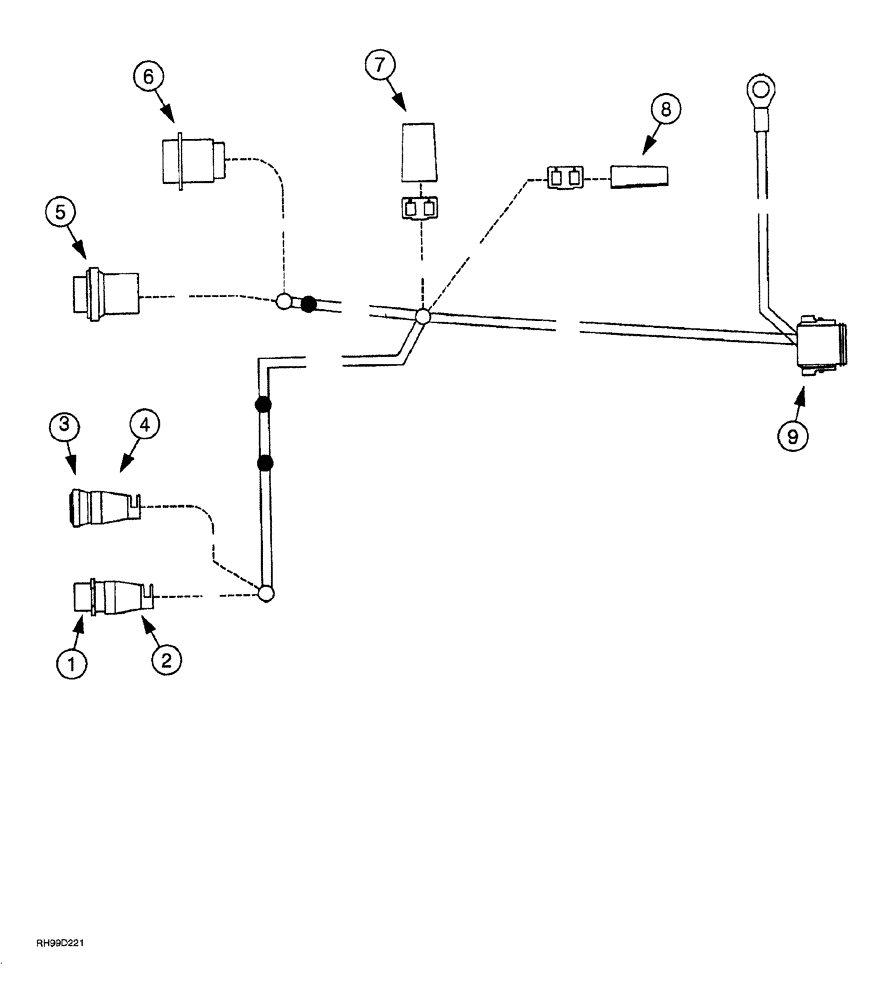

Запчасти Case IH AFS (05-12) - HARNESS, ADAPTER (MX, 5100, 5200 ROPS/CANOPY, 7100, 7200, 8900 SERIES, C50-C100 PLATFORM & STRADDLE) (55) - ELECTRICAL SYSTEMS

247365A1

HARNESS

non AFS tractor adapter, Includes Ref: 1-9

1шт.

1

247724A1

ELEC CONNECTOR,Female, 4 Pin

electrical

1шт.

2

247725A1

ELEC CONNECTOR

electrical

1шт.

3

247723A1

ELEC CONNECTOR,Male, 4 Pin

electrical

1шт.

4

247725A1

ELEC CONNECTOR

electrical

1шт.

5

225165C1

ELEC CONNECTOR

electrical, type GQ

1шт.

6

225164C1

ELEC CONNECTOR

electrical

1шт.

7

247676A1

MULTIPOLE CONNECTOR,Female, 2 Pin

switched fuse, unswitched B+

1шт.

8

247676A1

MULTIPOLE CONNECTOR,Female, 2 Pin

switched fuse, switched B+

1шт.

9

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

8 pin

1шт.
