Запчасти Case IH AFS (05-02) - HARNESS (9100, 9200 AND 9300 SERIES STEIGER TRACTOR) (55) - ELECTRICAL SYSTEMS

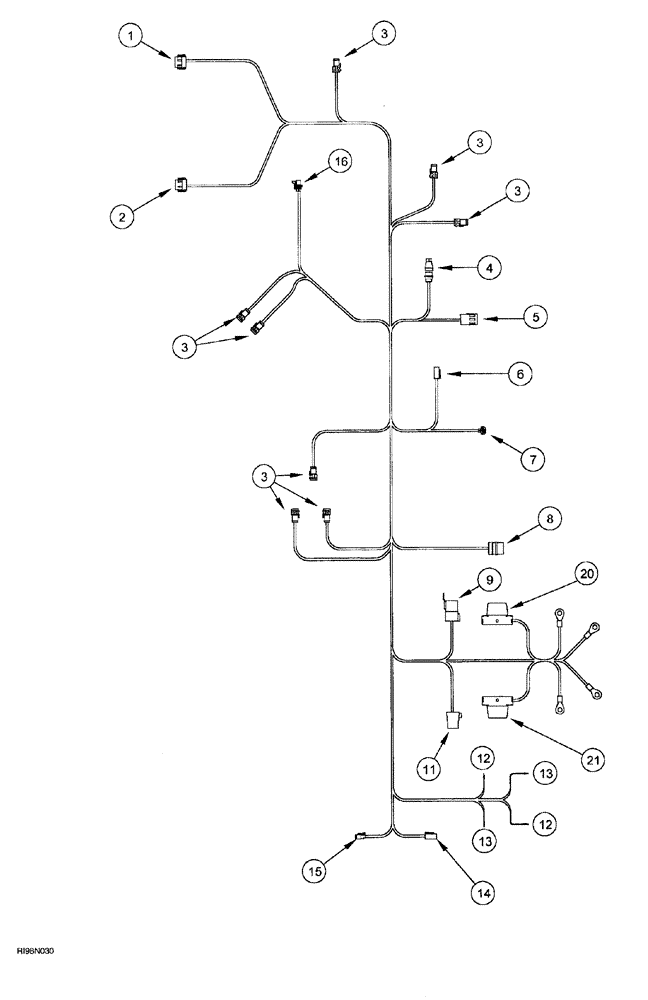

Схема запчастей Case IH AFS - (05-02) - HARNESS (9100, 9200 AND 9300 SERIES STEIGER TRACTOR) (55) - ELECTRICAL SYSTEMS
15
16
14
8
3
12
3
21
3
2
13
7
5
20
3
4
12
1
6
13
11
9
3

Артикул

Название

Примечание

Количество

328961A1

HARNESS

AFS Steiger Tractor, Includes Ref: 1-17

1шт.

1

223671A1

CONTACT HOUSING,Female, 12 Pin

12-way DTM plug, gray

1шт.

2

223679A1

MULTIPOLE CONNECTOR,Female, 12 Pin

12-way DTM plug, black

1шт.

3

298496A1

ELEC CONNECTOR,4 Pin

plug, 4 Pin

8шт.

4

247725A1

ELEC CONNECTOR

electrical

1шт.

5

245485C1

ELEC CONNECTOR,Male, 3 Pin

receptacle

1шт.

6

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4-cav plug DT series

1шт.

7

245482C1

ELEC CONNECTOR,2 Pin

wire

1шт.

8

310057A1

ELEC CONNECTOR,Male, 9 Pin

HD 10 series Receptacle

1шт.

9

296541A1

RELAY

80 amp.

1шт.

11

293256A1

RELAY

12 volt, 40 amp.

1шт.

12

280384A1

ELEC. TERMINAL PIN

size 8

2шт.

13

280386A1

ELEC CONNECTOR,Nickel, 2.0 - 3.0mm

size 12

2шт.

14

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4-cav plug DT series

1шт.

15

225316C1

ELEC CONNECTOR,Female, 2 Pin

electrical

1шт.

16

182081A1

TERMINAL CONNECTOR,Female, 5 Pin

tower 5-way metri-pak

1шт.

17

323597A1

MULTIPOLE CONNECTOR

implement, electrical

1шт.

20

338054A1

FUSE,20A, Maxival, Yellow

1шт.

21

338055A1

FUSE,30A, Maxival, Green

1шт.

Выбрано товаров: 19
