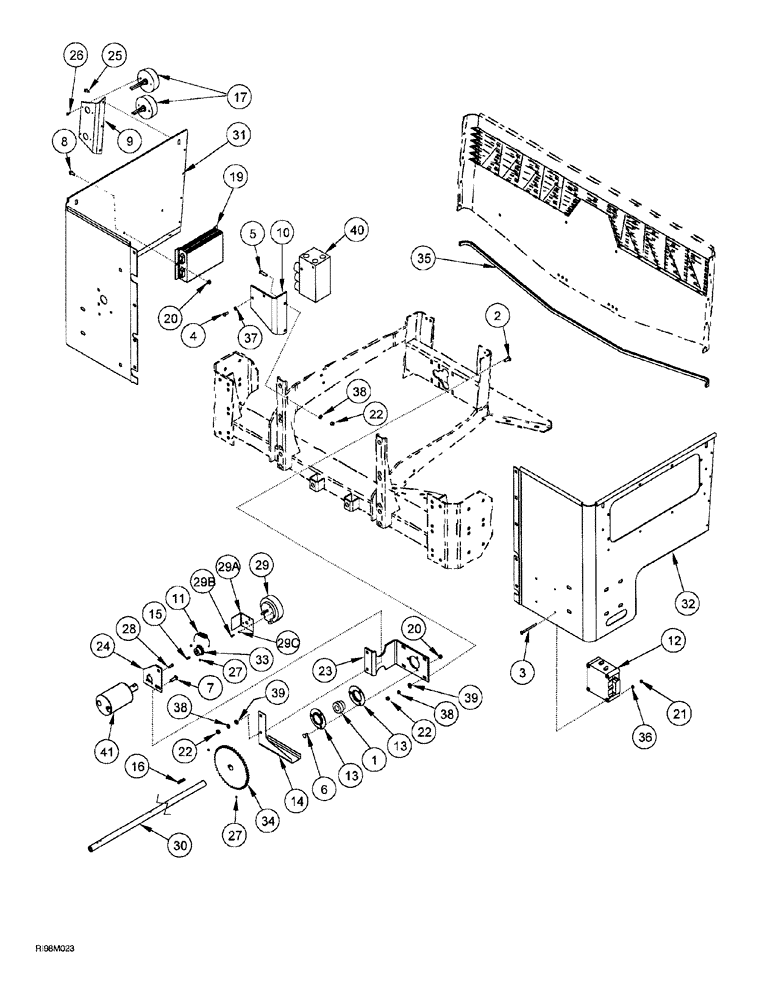

Запчасти Case IH AFS (04-56) - SEED DRUM DRIVE (955 TRAILING AFS PLANTER - 1999, 12 ROW AND 16 ROW NARROW AND 12/23 SRC) (55) - ELECTRICAL SYSTEMS

1

482302R92

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

ball with locking collar

1шт.

455102R21

COLLAR

locking, bearing, includes set screw

1шт.

482303R92

BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"

ball

1шт.

2

412-616

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

3/8 NC x 1 inch, grade 2

4шт.

3

413-456

BOLT,Hex, 1/4" - 20 x 3-1/2", Gr 5

hex, 1/4 NC x 3-1/2 inch

4шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

6

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

3шт.

7

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

2шт.

8

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

9

298994A1

BRACKET

tail lamp support, 12/23 only

2шт.

10

309646A1

BRACKET

valve mounting

1шт.

11

NSS

NOT SOLD SEPARAT

CHAIN hydraulic drive, use 63 links of 1790D bulk chain, one connector link 241-1314 and one offset link 241-1714

1шт.

1790D

CHAIN (AG)

bulk, 10 foot roll

1шт.

241-1314

CHAIN LINK

connecting, single pitch, No. 40, 1/2 inch pitch

1шт.

241-1714

CHAIN LINK

offset, single pitch, No. 40, 1/2 inch pitch

1шт.

12

293807A2

BOARD, PRINTED CIRCU

IT MODULE bin level gateway

1шт.

13

937517R1

FLANGE

bearing

2шт.

14

324501A1

GUARD

chain, for 12/23 SRC only

1шт.

15

475642R1

KEY,3/16" Sq x 11/16", Par

3/16 square x 11/16 inch long

1шт.

16

Y24430

KEY,1/4" Sq x 1 1/2", Par

square parallel, 1/4 x 1-1/2 inch

1шт.

17

91986C91

LIGHT

ASSEMBLY tail lamp, see page 04-13 of 7-1603R1 955 Trailing Planter parts catalog, 12/23 only

4шт.

19

330524A1

BOARD, PRINTED CIRCU

IT MODULE multi-channel controller

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

21

425-104

NUT,1/4"-20, Cl 5

4шт.

22

425-106

NUT,3/8"-16, Cl 5

8шт.

23

189947A1

PLATE

shaft adjustment

1шт.

24

304618A1

BRACKET

motor mount

1шт.

25

138558A1

SELF-TAP SCREW,Hex Flg, 5/16" - 18 x 13/16", HDN

hex head, self-tapping, 5/16 NC x 13/16 inch, 12/23 only

6шт.

26

280-14510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

self-tapping, hex washer head, No. 10-16 x 5/8 inch, 12/23 only

8шт.

27

483-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

hex socket headless, cup point, 1/4 NC x 1/4 inch

4шт.

28

62-32512

HEX SOC SCREW,1/4"-28 x 3/4"

3шт.

29

296164A1

SENSOR

KIT application rate, Includes Ref: 29A, 29B, 29C

1шт.

29a

294473A1

BRACKET

anti-rotation

1шт.

29b

260-5448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

Phillips

3шт.

29c

492-11008

LOCK WASHER,#8

3шт.

30

189952A1

SHAFT

drum drive

1шт.

31

1995900C3

SHEET

PANEL module, right hand

1шт.

32

1995901C2

SHEET

PANEL module, left-hand

1шт.

33

232893A1

SPROCKET

drive (10 tooth)

1шт.

34

232895A1

SPROCKET ASSY.

driven (50 tooth)

1шт.

35

296129A1

MOLDING

TRIM module

1шт.

36

492-11025

LOCK WASHER,1/4"

4шт.

37

492-11031

LOCK WASHER,5/16"

2шт.

38

492-11038

LOCK WASHER,3/8"

8шт.

39

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

6шт.

40

293320A1

VALVE

relief, bypass flow and signal, see page 8-183 in 7-1603R1 955 Trailing Planter planter parts catalog

1шт.

41

281070A1

MOTOR

hydraulic drive

1шт.
