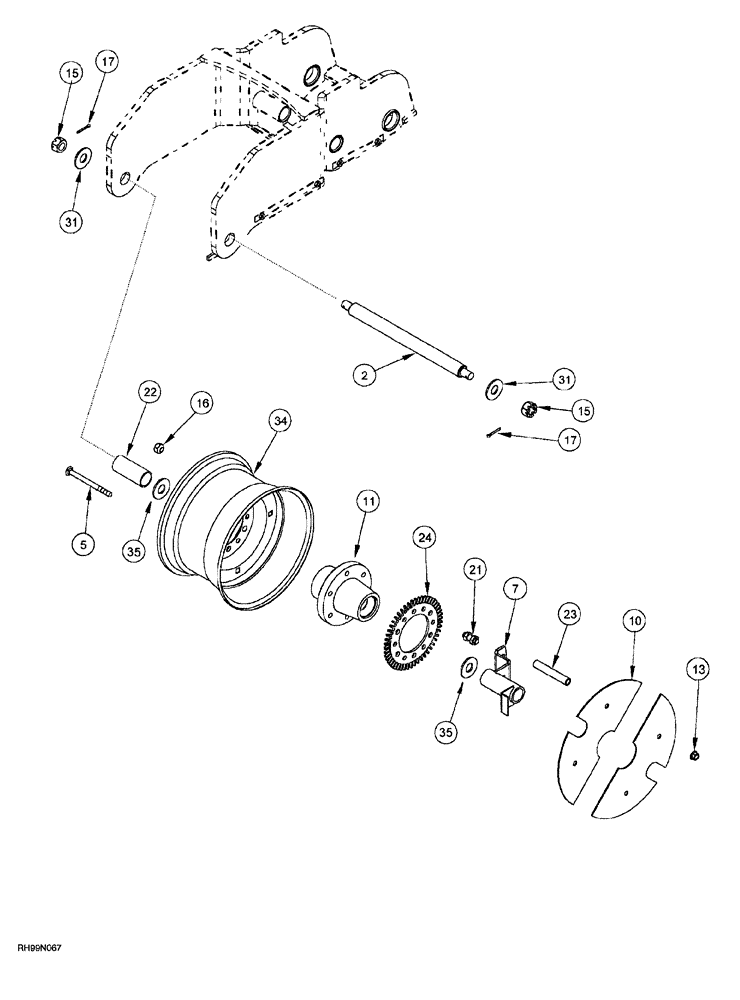

Запчасти Case IH AFS (04-54) - WHEEL SPEED SENSOR (955 TRAILING AFS PLANTER - 1999, 12/23 SRC) (55) - ELECTRICAL SYSTEMS

2

249105A2

AXLE

wheel, 20 inch long

1шт.

5

433-8104

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 6 1/2", Gr 5

carriage, 1/2 NC x 6-1/2 inch

4шт.

7

323389A1

BRACKET

wheel speed

1шт.

10

1264480C1

COVER

15 inch wheel

2шт.

11

323223A1

HUB

with bearings

1шт.

453012R1

BEARING CUP

tapered roller bearing

2шт.

8050528

ROLLER BEARING

tapered roller bearing

2шт.

13

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

15

425-1316

NUT,1"-14, G5

hex, slotted, 1 inch NF

2шт.

16

G49041

WHEEL NUT

wheel, special, 9/16 inch NF

6шт.

17

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

21

324049A1

SENSOR

speed hall

1шт.

22

338169A1

SPACER

1.9 OD x 4.095 inch

1шт.

23

305602A1

SPACER

129 mm

4шт.

24

304815A2

SPROCKET

speed sensor, 50 tooth

1шт.

31

495-21106

WASHER,1"

flat, 1-1/16 x 2-1/2 x 5/32 inch

2шт.

34

1277504C1

RIM

WHEEL WHEEL - 15 (381) x 10 inch (254 mm)

1шт.

35

3381 68A1

WASHER - special

2шт.
