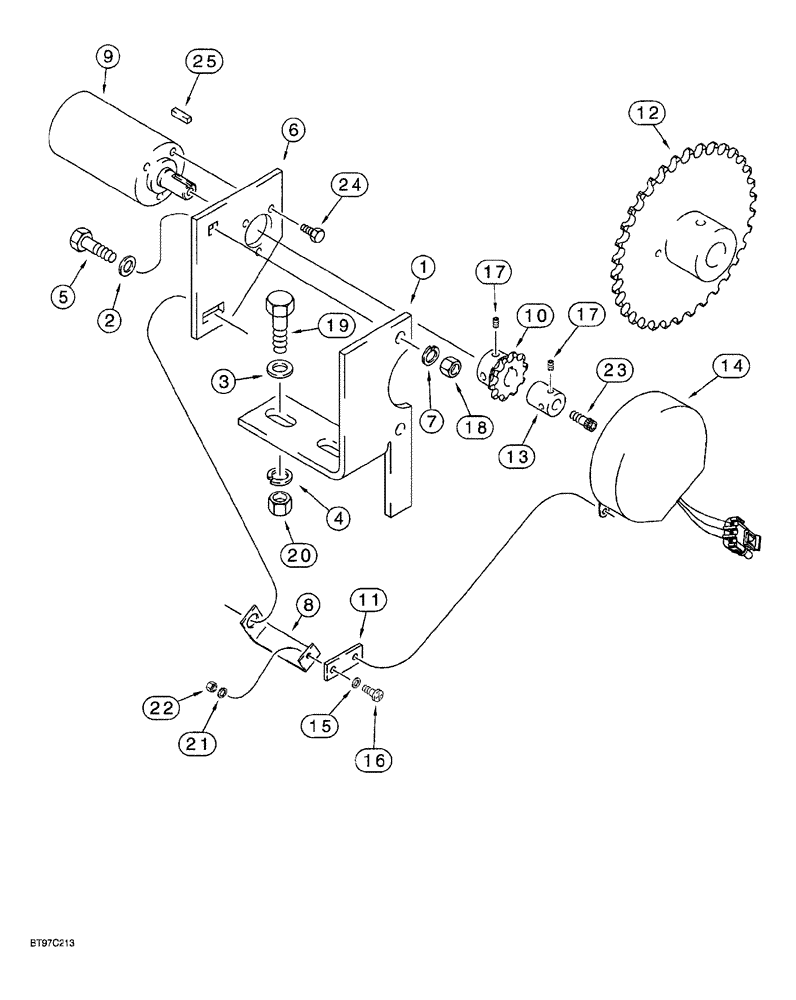

Запчасти Case IH AFS (04-08) - HYDRAULIC DRIVE - PLANTER WITH GEARBOX (FOR PRIOR TO MODEL YEAR 1997) (35) - HYDRAULIC SYSTEMS

1

226973A1

ANGLE

mounting, module motor

1шт.

2

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

3

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

flat, 17/32 x 1 x 1/16 inch

2шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

6

220071A1

PLATE

mounting, module motor

1шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

220964A1

BRACKET

tether

1шт.

9

REF

INSTRUCTION

MOTOR, see Figure 04-12

1шт.

10

232893A1

SPROCKET

drive, 10 tooth

1шт.

11

231221A1

BAR

1шт.

12

249029A1

SPROCKET ASSY.

driven, 34 tooth

1шт.

13

247420A1

COUPLING

rate sensor

1шт.

14

231216A1

SENSOR

application rate

1шт.

15

495-21019

WASHER,#8

2шт.

16

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

17

483-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

hex socket headless, cup point, 1/4 NC x 1/4 inch

4шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

20

425-108

NUT,1/2" - 13, Gr 5

2шт.

21

492-11008

LOCK WASHER,#8

2шт.

22

225-14108

NUT,#8-32

hex, No. 8 NC

2шт.

23

62-32512

HEX SOC SCREW,1/4"-28 x 3/4"

1шт.

24

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

hex, 1/4 NFx 3/4 inch

3шт.

25

475642R1

KEY,3/16" Sq x 11/16", Par

3/16 square x 11/16 inch long

1шт.
