(04-38) - HARNESS (955 TRAILING AFS PLANTER - 1999, 12 ROW NARROW, 16 ROW NARROW AND 12/23 SRC)

Запчасти Case IH AFS (04-38) - HARNESS (955 TRAILING AFS PLANTER - 1999, 12 ROW NARROW, 16 ROW NARROW AND 12/23 SRC) (55) - ELECTRICAL SYSTEMS

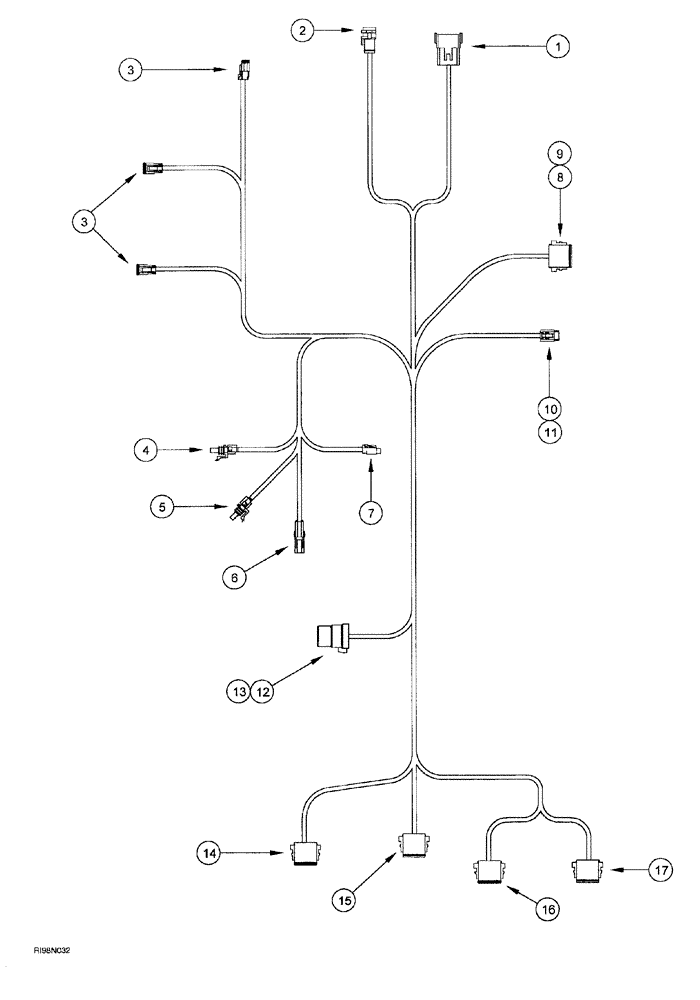

Схема запчастей Case IH AFS - (04-38) - HARNESS (955 TRAILING AFS PLANTER - 1999, 12 ROW NARROW, 16 ROW NARROW AND 12/23 SRC) (55) - ELECTRICAL SYSTEMS
3
16
14
6
12
11
17
3
15
2
10
9
4
7
8
1
5
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

323288A1

HARNESS

Cyclo MCC, connects to 323444A1 on 12RN and 16RN or 323318A1 on 12/23SRC and to the items below, Includes Ref: 1-17

1шт.

1

225400C1

CONNECTOR, ELEC

CONNECTOR electrical, to main harness

1шт.

2

298496A1

ELEC CONNECTOR,4 Pin

plug, 4 Pin

1шт.

3

225316C1

ELEC CONNECTOR,Female, 2 Pin

electrical

3шт.

4

245480C1

ELEC CONNECTOR,1 Pin

electrical, air pressure sensor signal

1шт.

5

245481C1

CONNECTION,ELECTRIC

electrical, air pressure sensor ground

1шт.

6

245480C1

ELEC CONNECTOR,1 Pin

electrical, air pressure sensor +8V B+

1шт.

7

276424A1

ELEC CONNECTOR,Female, 3 Pin

electrical, seed feedback

1шт.

8

225389C1

CONNECTOR, ELEC

CONNECTOR electrical, to ref. 9

1шт.

9

225388C1

ELEC CONNECTOR,Male, 12 Pin

electrical, type NA, to fertilizer harness

1шт.

10

276424A1

ELEC CONNECTOR,Female, 3 Pin

electrical, to ref. 11

1шт.

11

276426A1

ELEC CONNECTOR,Male, 3 Pin

electrical, to chemical harness

1шт.

12

297910A1

ELEC CONNECTOR,Female, 5 Pin

5-way, to ref. 13

1шт.

13

293256A1

RELAY

12 volt, 40 amp., to MCC Interlock

1шт.

14

225389C1

CONNECTOR, ELEC

CONNECTOR electrical, to MCC J1

1шт.

15

225402C1

CONNECTOR, ELEC

CONNECTOR electrical, to MCC J2

1шт.

16

225465C1

CONNECTOR, ELEC

CONNECTOR electrical, to MCC J4

1шт.

17

225403C1

CONNECTOR, ELEC

CONNECTOR electrical, to MCC J3

1шт.

323322A1

HARNESS

extension, see Figure 04-46, harness connects to this item, not shown

1шт.

293807A2

BOARD, PRINTED CIRCU

IT bin level gateway, see Figure 04-56 Ref. 12, harness connects to this item, not shown

4шт.

296164A1

SENSOR

KIT application rate sensor, see Figure 04-56 Ref. 29, harness connects to this item, not shown

1шт.

1336005C3

SENSOR

air pressure, hopper, see Figure 04-26 Ref. 12, harness connects to this item, not shown

1шт.

304668A3

VALVE

ASSEMBLY multi-variable, see 7-1603R2, 955 Trailing Planter parts catalog Figure 08-184, harness connects to this item, not shown

2шт.
