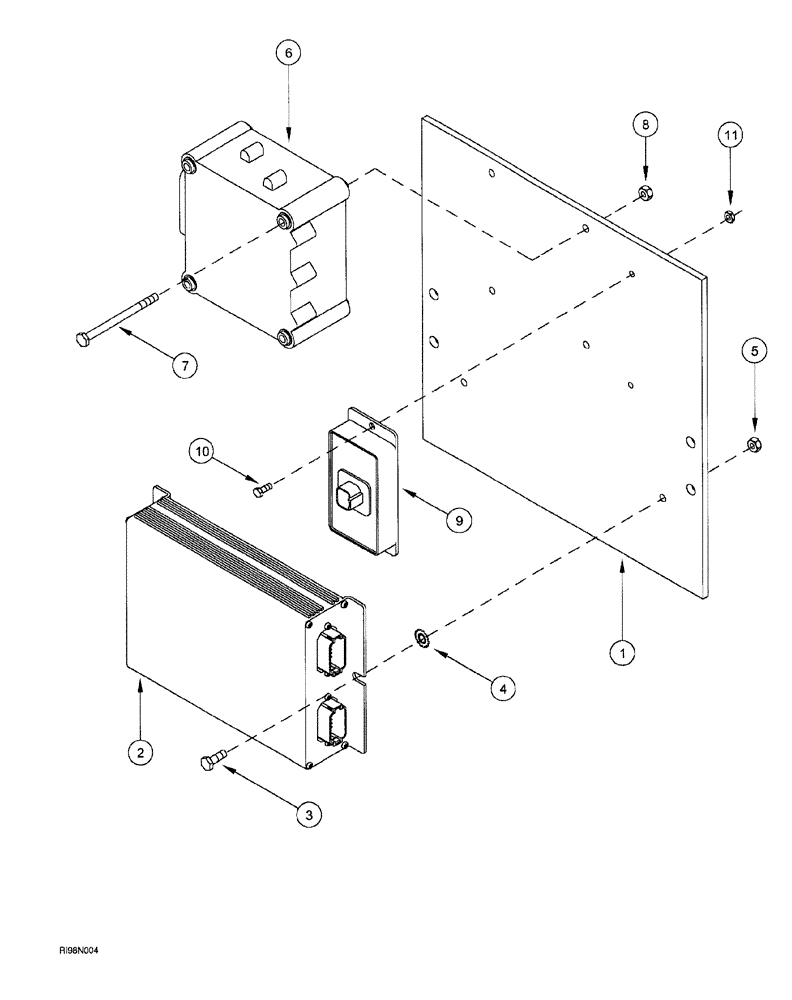

Запчасти Case IH AFS (04-34) - SEED METERING MODULES (1200 ASM PLANTER) (55) - ELECTRICAL SYSTEMS

1

323477A3

BRACKET

mounting, electronics

1шт.

2

330315A2

PRINTED CIRCUIT BOAR

monitor interface controller

1шт.

2

405514A1R

REMAN ELECT CONTROL

AFS ADVANCED FARMING SYSTEM (NORTH AMERICA), monitor interface controller (5/99-), Reman for New PN 330315A2

1шт.

2

405514A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

4

493-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

2шт.

5

425-104

NUT,1/4"-20, Cl 5

2шт.

6

293807A4

CONTROL BLOCK

MODULE bin level gateway

1шт.

7

413-456

BOLT,Hex, 1/4" - 20 x 3-1/2", Gr 5

hex, 1/4 NC x 3-1/2 inch

4шт.

8

425-104

NUT,1/4"-20, Cl 5

4шт.

9

284638A2

ELEC CONNECTOR,4 Pin

terminator, active

1шт.

10

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

2шт.

11

225-14110

NUT,#10-24

2шт.
