(04-28) - SEED METER ASSEMBLY (1200 ASM PLANTER)

Запчасти Case IH AFS (04-28) - SEED METER ASSEMBLY (1200 ASM PLANTER) (55) - ELECTRICAL SYSTEMS

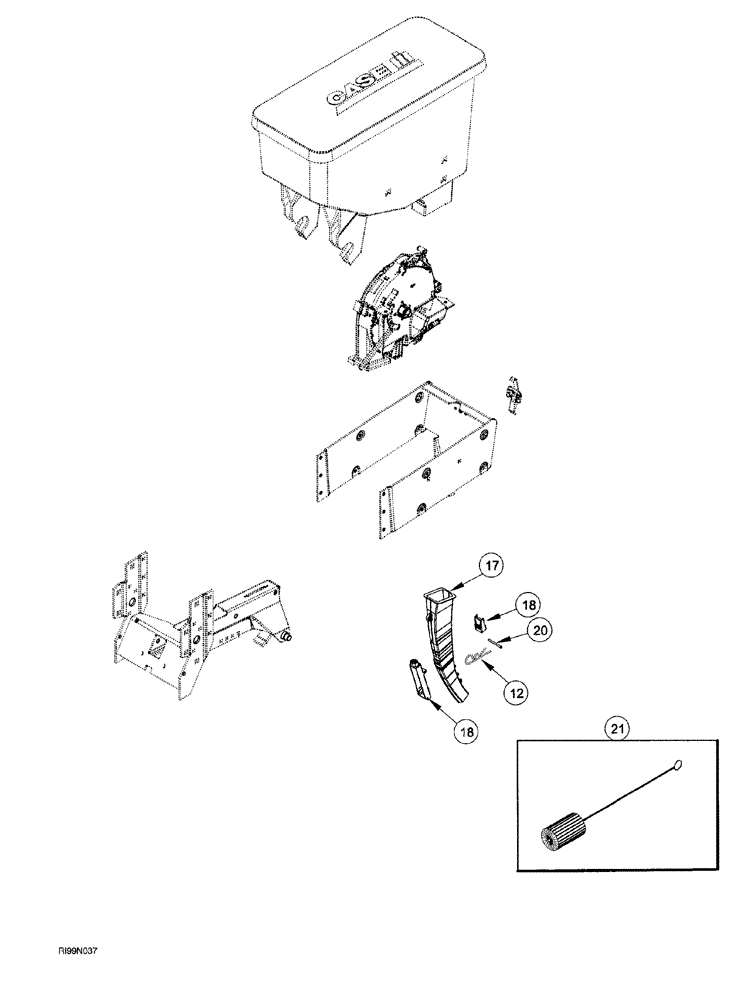

Схема запчастей Case IH AFS - (04-28) - SEED METER ASSEMBLY (1200 ASM PLANTER) (55) - ELECTRICAL SYSTEMS
17
18
21
18
20
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

12

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

1шт.

383337A1

TUBE

ASSEMBLY, ASM seed tube and strap, Includes Ref: 17, 18, 19

1шт.

17

382680A1

TUBE,400, 64.3 mm Length

seed, attachment

1шт.

18

311668A2

SENSOR

seed tube, advanced seed meter

1шт.

19

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie, 14 inch long

2шт.

20

147310C1

HEADED PIN,6.35mm OD x 69.85mm L

pointed, 1/4 x 2-3/4 inch

1шт.

21

346290A1

BRUSH

seed tube

1шт.
