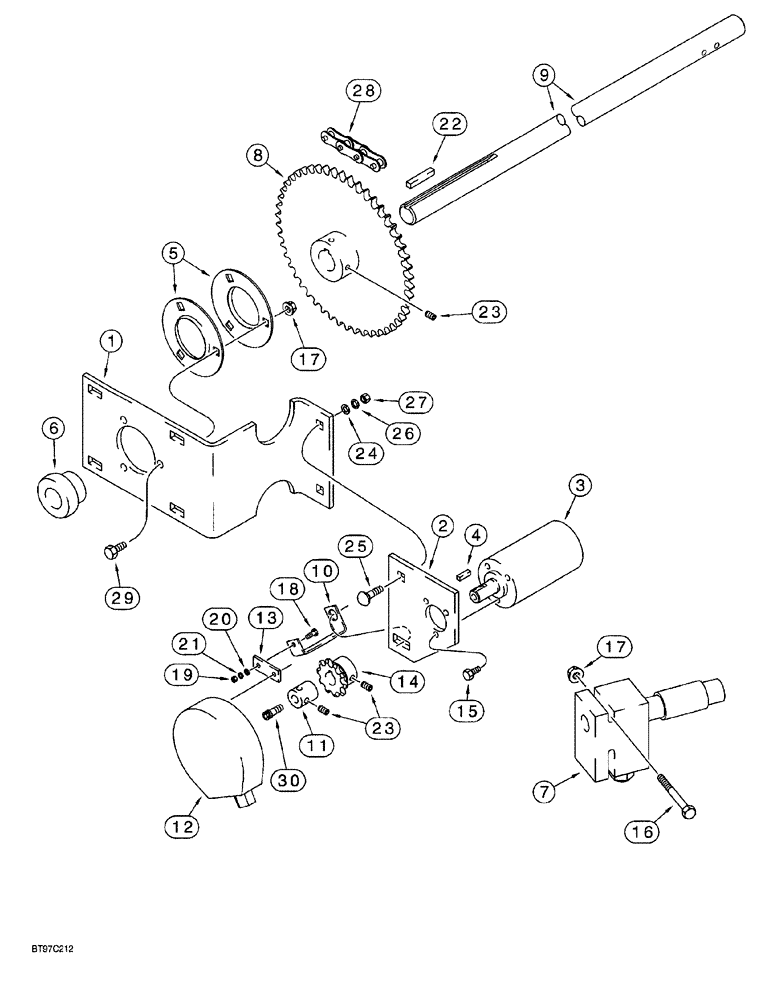

Запчасти Case IH AFS (04-06) - DIRECT HYDRAULIC DRIVE - PLANTER WITHOUT GEARBOX (MODEL YEAR 1997 AND 1998) (35) - HYDRAULIC SYSTEMS

1

189947A1

PLATE

shaft adjustment

1шт.

2

220071A1

PLATE

mounting, module motor

1шт.

3

REF

INSTRUCTION

MOTOR, see Figure 04-12

1шт.

4

475642R1

KEY,3/16" Sq x 11/16", Par

3/16 square x 11/16 inch long

1шт.

5

937517R1

FLANGE

bearing

2шт.

6

482302R92

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

ball with locking collar, drum drive

1шт.

7

REF

INSTRUCTION

VALVE proportional flow control, see Figure 04-25

1шт.

8

232895A1

SPROCKET ASSY.

driven, 50 tooth

1шт.

9

189952A1

SHAFT

drum drive, drum drive

1шт.

10

220964A1

BRACKET

tether

1шт.

11

247420A1

COUPLING

rate sensor

1шт.

12

231216A1

SENSOR

application rate

1шт.

13

231221A1

BAR

connector

1шт.

14

232893A1

SPROCKET

drive, 10 tooth

1шт.

15

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

hex, 1/4 NFx 3/4 inch

3шт.

16

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

hex, 1/4 NC x 3 inch

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

18

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

19

225-14108

NUT,#8-32

hex, No. 8 NC

2шт.

20

495-21019

WASHER,#8

2шт.

21

492-11008

LOCK WASHER,#8

2шт.

22

Y24430

KEY,1/4" Sq x 1 1/2", Par

square parallel, 1/4 x 1-1/2 inch

1шт.

23

483-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

hex socket headless, cup point, 1/4 NC x 1/4 inch

6шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

25

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

3/8 NC x 1-1/2 inch

2шт.

26

492-11038

LOCK WASHER,3/8"

2шт.

27

425-106

NUT,3/8"-16, Cl 5

2шт.

28

REF

INSTRUCTION

roller, hydraulic drive, see note

1шт.

29

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

carriage, 5/16 NC x 1-1/4 inch

3шт.

30

62-32512

HEX SOC SCREW,1/4"-28 x 3/4"

1шт.
