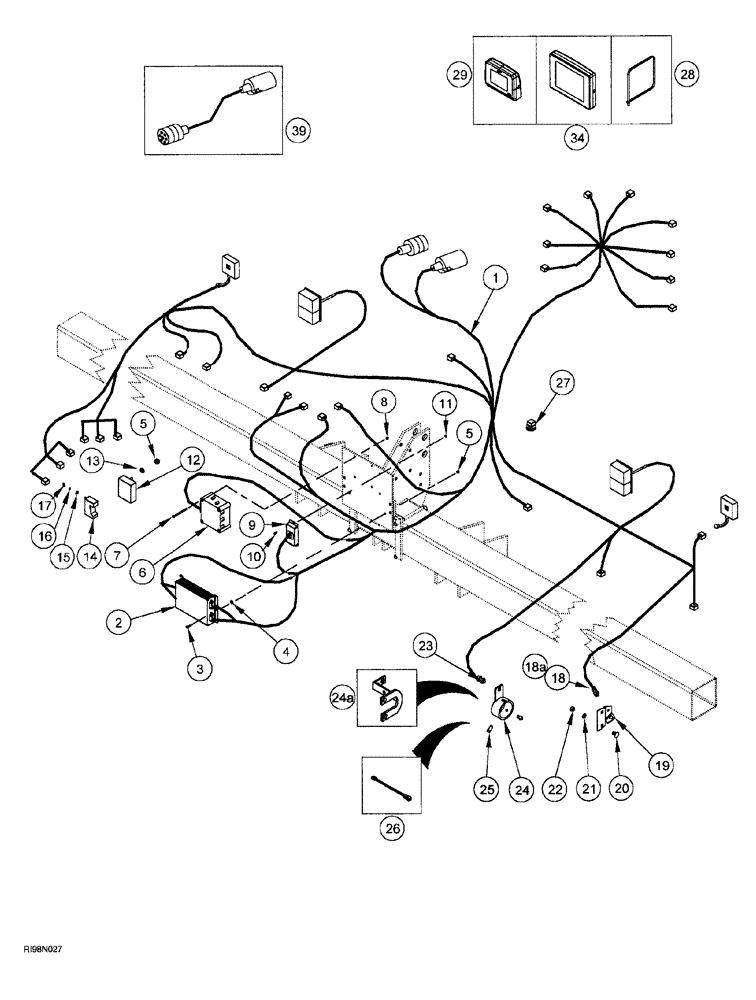

Запчасти Case IH AFS (04-26) - ELECTRICAL MONITORING / CONTROLLER SYSTEM (1200 ASM PLANTER) (55) - ELECTRICAL SYSTEMS

1

323803A2

HARNESS

main, advanced seed meter, all mounted rigid and stacker frames

1шт.

1

337534A2

HARNESS

main, advanced seed meter, 6 row trailing

1шт.

2

330315A2

PRINTED CIRCUIT BOAR

MODULE monitor interface controller

1шт.

2

405514A1R

REMAN ELECT CONTROL

AFS ADVANCED FARMING SYSTEM (NORTH AMERICA), MODULE monitor interface controller (5/99-), Reman for New PN 330315A2

1шт.

2

405514A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

4

493-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

2шт.

5

425-104

NUT,1/4"-20, Cl 5

3шт.

6

293807A4

CONTROL BLOCK

MODULE bin level gateway

1шт.

7

413-456

BOLT,Hex, 1/4" - 20 x 3-1/2", Gr 5

hex, 1/4 NC x 3-1/2 inch

4шт.

8

425-104

NUT,1/4"-20, Cl 5

4шт.

9

284638A2

ELEC CONNECTOR,4 Pin

terminator, active

1шт.

10

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

2шт.

11

225-14110

NUT,#10-24

2шт.

12

1336005C4

SENSOR

air pressure, hopper

1шт.

13

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

1шт.

14

1336023C2

SENSOR

hopper level

1шт.

15

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

16

492-11010

LOCK WASHER,#10

2шт.

17

129-900

WING NUT,Locking, #10-32

No. 10 NF

2шт.

18

177499A2

LIMIT SWITCH

plunger reed, normally closed

2шт.

18a

188603A1

JAM NUT

jam, M16, not shown

1шт.

19

323990A2

BRACKET

implement status switch

2шт.

20

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

carriage, 1/2 NC x 1 inch

4шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

22

425-108

NUT,1/2" - 13, Gr 5

4шт.

23

324049A1

SENSOR

speed hall

1шт.

24

329502A1

BRACKET

speed sensor, all mounted rigid and stacker frames

1шт.

24a

309065A1

BRACKET

speed sensor, 6 row trailing

1шт.

25

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

set, square head, cup point, 1/2 NC x 3/4 inch, mounted rigid and stacker machines

2шт.

26

323322A1

HARNESS

extension, speed sensor, mounted rigid machines

1шт.

27

293256A2

RELAY,12V

RELAY 12 volt, 40 amp.

1шт.

28

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP tie

20шт.

336659A2

PACKAGE, AFS Universal Display, if used, Includes Ref: 29-33

1шт.

29

293255A1

BOARD, PRINTED CIRCU

IT MONITOR standard AFS controller, if used

1шт.

30

NSS

NOT SOLD SEPARAT

MANUAL Quick Reference AFS Planter, not shown

1шт.

31

NSS

NOT SOLD SEPARAT

MANUAL Quick Reference ASM, not shown

1шт.

32

NSS

NOT SOLD SEPARAT

MANUAL Quick Reference Concord, not shown

1шт.

33

NSS

NOT SOLD SEPARAT

MANUAL Application Control Operations, not shown

1шт.

336660A2

PACKAGE AFS Universal Display Plus, if used, Includes Ref: 34-38

1шт.

34

295133A2

BOARD, PRINTED CIRCU

IT MONITOR AFS Universal Display, if used

1шт.

35

NSS

NOT SOLD SEPARAT

MANUAL Quick Reference AFS Planter, not shown

1шт.

36

NSS

NOT SOLD SEPARAT

MANUAL Quick Reference ASM, not shown

1шт.

37

NSS

NOT SOLD SEPARAT

MANUAL Quick Reference Concord, not shown

1шт.

38

NSS

NOT SOLD SEPARAT

MANUAL Application Control Operations, not shown

1шт.

39

352457A1

HARNESS

extension, used with 6800 cart

1шт.

40

355955A1

HARNESS

cooling fan, 6 row trailing with hydraulic pump kit, not shown

1шт.
