Запчасти Case IH AFS (04-22) - PLANTER IMPLEMENT HARNESS (955 PLANTERS PRIOR TO MODEL YEAR 1999) (55) - ELECTRICAL SYSTEMS

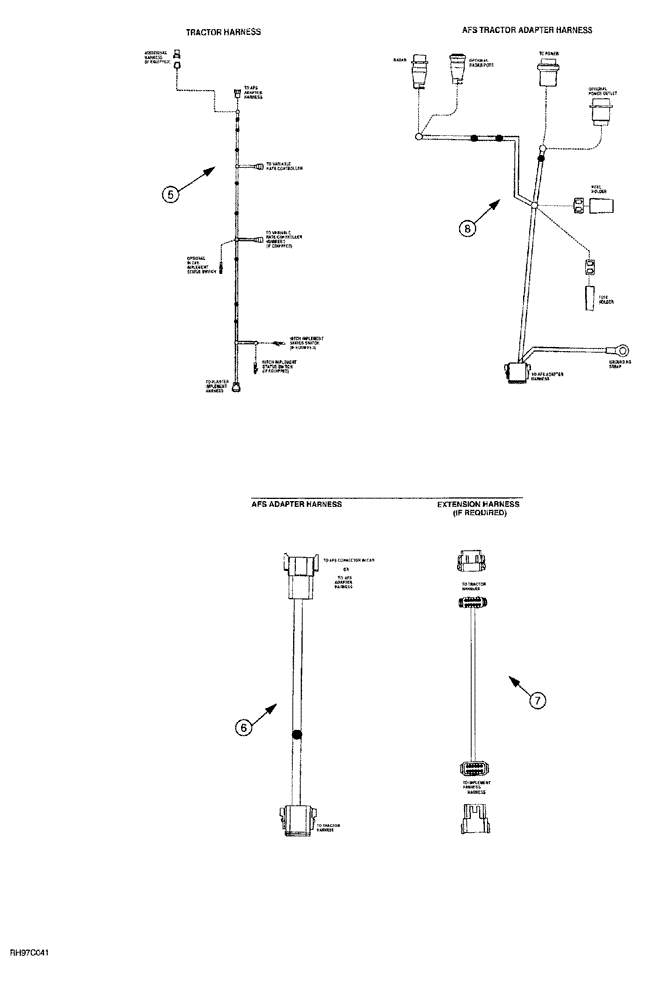

Схема запчастей Case IH AFS - (04-22) - PLANTER IMPLEMENT HARNESS (955 PLANTERS PRIOR TO MODEL YEAR 1999) (55) - ELECTRICAL SYSTEMS
7
8
6
5

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

single module, for trailing rigid single seed module planter, see Figure 04-14 Ref. 10

1шт.

1

REF

INSTRUCTION

single module, for mounted planter, see Figure 04-14 Ref. 10

1шт.

2

REF

INSTRUCTION

trailing vertical fold planter, for trailing vertical fold, single or dual seed module planter, see Figure 04-16 Ref. 6

1шт.

2

REF

INSTRUCTION

mounted dual module planter see Figure 4-16 Ref. 6

1шт.

5

247363A1

HARNESS

variable rate control, attaches AFS adapter harness to variable rate controller

1шт.

6

247364A1

HARNESS

AFS adapter, attaches AFS adapter harness to tractor harness

1шт.

7

240589A1

HARNESS

variable rate controller implement extension, attaches tractor to implement harness, long enough for 6100 cart

1шт.

8

247365A1

HARNESS

non AFS tractor adapter, for connectors see Figure 05-12

1шт.

9

254466A1

HARNESS

Y extension, to connect two single module implement harnesses together to use as a double module unit, not shown

1шт.

10

REF

INSTRUCTION

manual status switch, not shown mounted in tractor in lieu of automatic sensor switch, see Figure 04-20 Ref. 15

1шт.

Выбрано товаров: 10
