Запчасти Case IH AFS (03-18) - RECEIVER MOUNTING BRACKETS (1600 SERIES AND 2100, 2300 SERIES COMBINES AND TRACTORS AFTER YEAR 1998) (55) - ELECTRICAL SYSTEMS

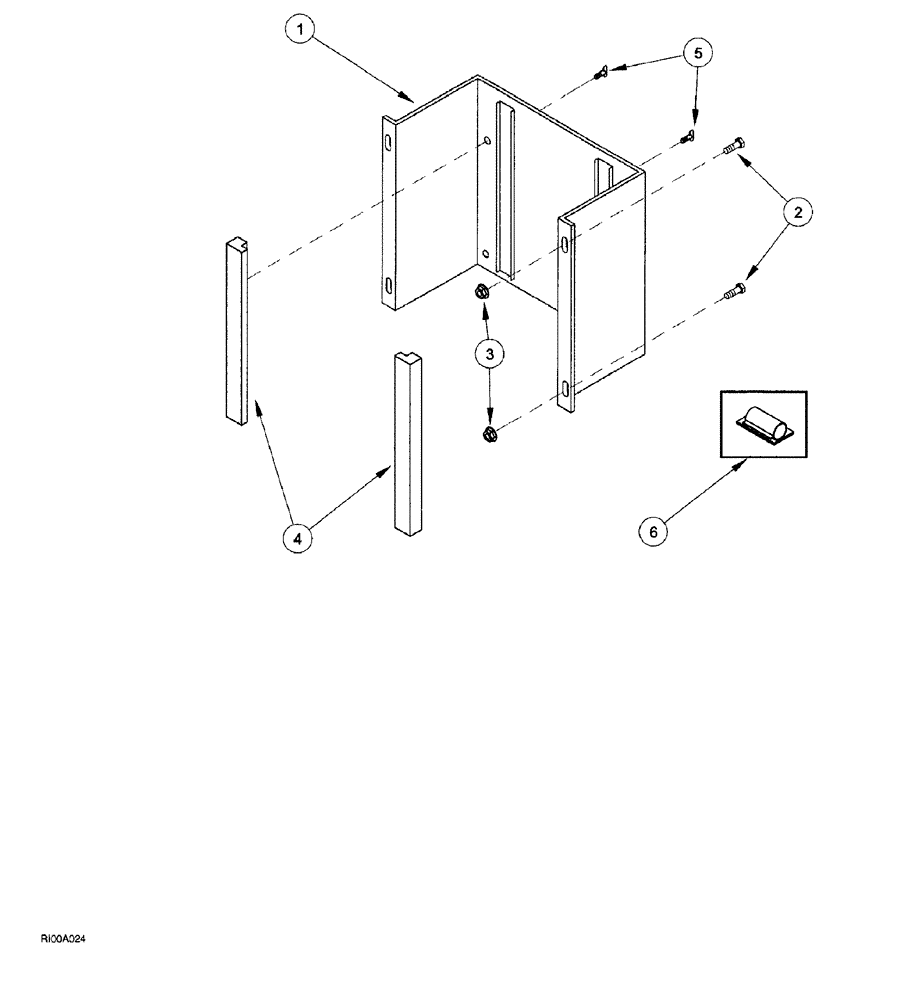

Схема запчастей Case IH AFS - (03-18) - RECEIVER MOUNTING BRACKETS (1600 SERIES AND 2100, 2300 SERIES COMBINES AND TRACTORS AFTER YEAR 1998) (55) - ELECTRICAL SYSTEMS
5
6
4
2
1
3

Артикул

Название

Примечание

Количество

1

321799A1

SUPPORT

GPS receiver, for 2100 and 2300 Series combines

1шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

For 1600 Series combines and tractors

4шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

For 1600 Series combines and tractors

4шт.

4

313151A1

CLAMP

BLOCK GPS mounting

2шт.

5

183-112

THUMB SCREW,1/4"-20 x 1"

thumb, 1/4 x 1

4шт.

6

245854A1

CLIP

adhesive

4шт.

Выбрано товаров: 6
