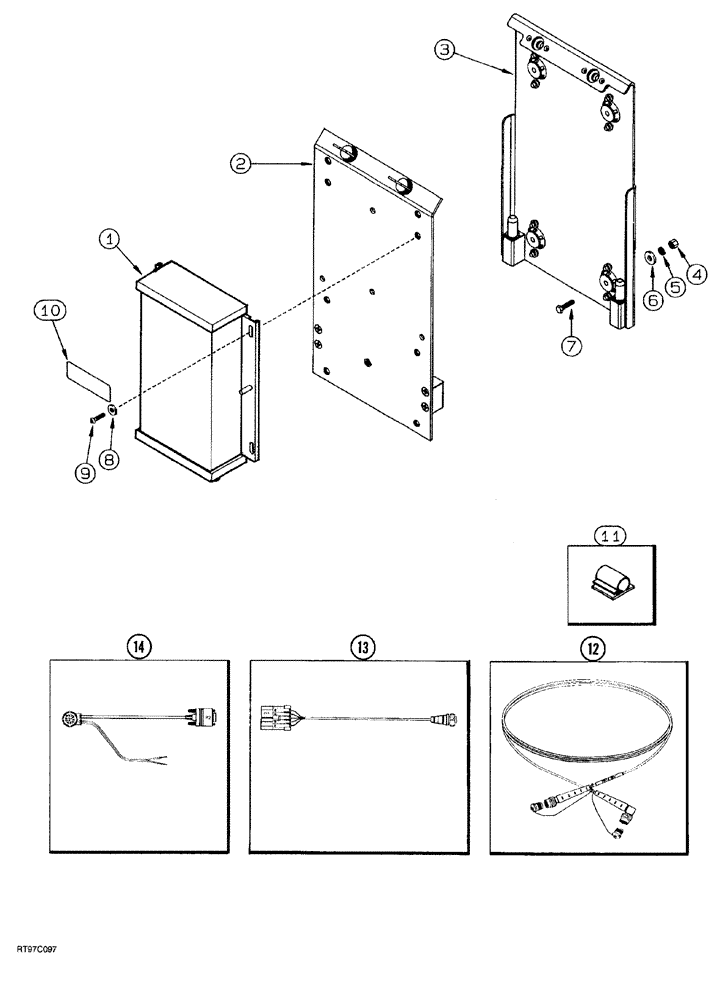

Запчасти Case IH AFS (03-14) - RECEIVER UNIT (1644, 1666, 1688, 2100 AND 2300 SERIES COMBINES) (55) - ELECTRICAL SYSTEMS

1

279294A1

CASE

RECEIVER AFS beacon, new

1шт.

1

293594A4

BOX

RECEIVER AFS SB2400 Universal, Includes: Ref. 10

1шт.

2

279295A2

SUPPORT

receiver front

1шт.

3

279297A2

SUPPORT

receiver rear

1шт.

4

225-14110

NUT,#10-24

4шт.

5

492-11010

LOCK WASHER,#10

4шт.

6

495-81001

WASHER,5/16"

flat, 3/8 x 1-1/8 x 1/16 inch

4шт.

7

463-11024

SCREW,Hex Hd, #10-24 x 1 1/2"

machine, hex head, No. 10 NC x 1-1/2 inch

4шт.

8

495-31019

WASHER,0.19" ID x 0.38" OD x 0.05" Thk

flat, 3/16 x 3/8 x 3/64 inch

4шт.

9

443-1088

SCREW,Cross Flat Hd, #8-32 x 1/2"

machine, flat Phillips, No. 8 NC x 1/2 inch

4шт.

10

239258A1

DECAL

AFS

1шт.

11

245854A1

CLIP

adhesive

4шт.

12

277852A1

CABLE

AFS antenna

1шт.

13

277853A2

CABLE

power/data input, output

1шт.

14

277885A1

CABLE ASSY.

Power cable Pathfinder

1шт.

15

226455A1

TAPE

vapor wrap, not shown

1шт.

16

249547A1

CABLE

beacon receiver adapter, optional, not shown

1шт.
