(03-12) - ANTENNA UNIT (1644, 1666, 1688, 2100 AND 2300 SERIES COMBINES)

Запчасти Case IH AFS (03-12) - ANTENNA UNIT (1644, 1666, 1688, 2100 AND 2300 SERIES COMBINES) (55) - ELECTRICAL SYSTEMS

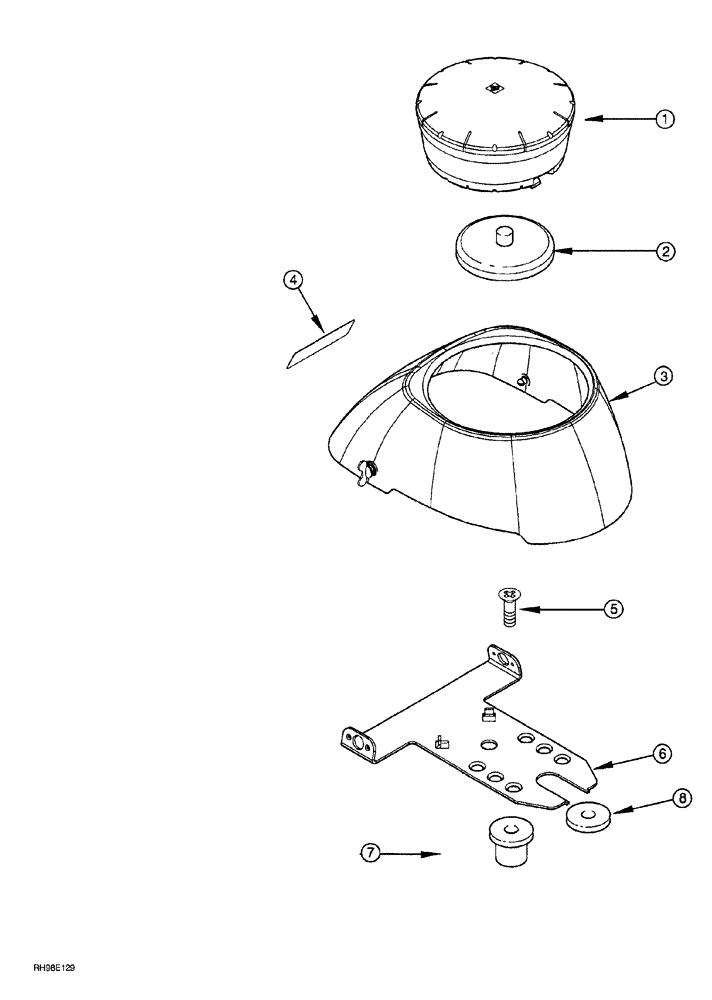

Схема запчастей Case IH AFS - (03-12) - ANTENNA UNIT (1644, 1666, 1688, 2100 AND 2300 SERIES COMBINES) (55) - ELECTRICAL SYSTEMS
5
3
8
6
7
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

279296A1

ANTENNA

AFS GB1000 beacon

1шт.

1

293595A1

ANTENNA

AFS SB2400 Universal, includes decal

1шт.

2

277851A1

SUPPORT

MOUNT magnetic

1шт.

3

279292A2

SHIELD

AFS antenna, assembly, includes Ref. 4

1шт.

4

239258A1

DECAL

AFS

1шт.

5

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

4шт.

6

279293A2

SUPPORT

AFS antenna

1шт.

7

D135342

ISOLATOR

MOUNT

4шт.

8

548262R1

GROMMET

Prior to Model year 2000

1шт.

8

378194A1

GROMMET

1 x 3/4, Model years 2000 and after

1шт.
