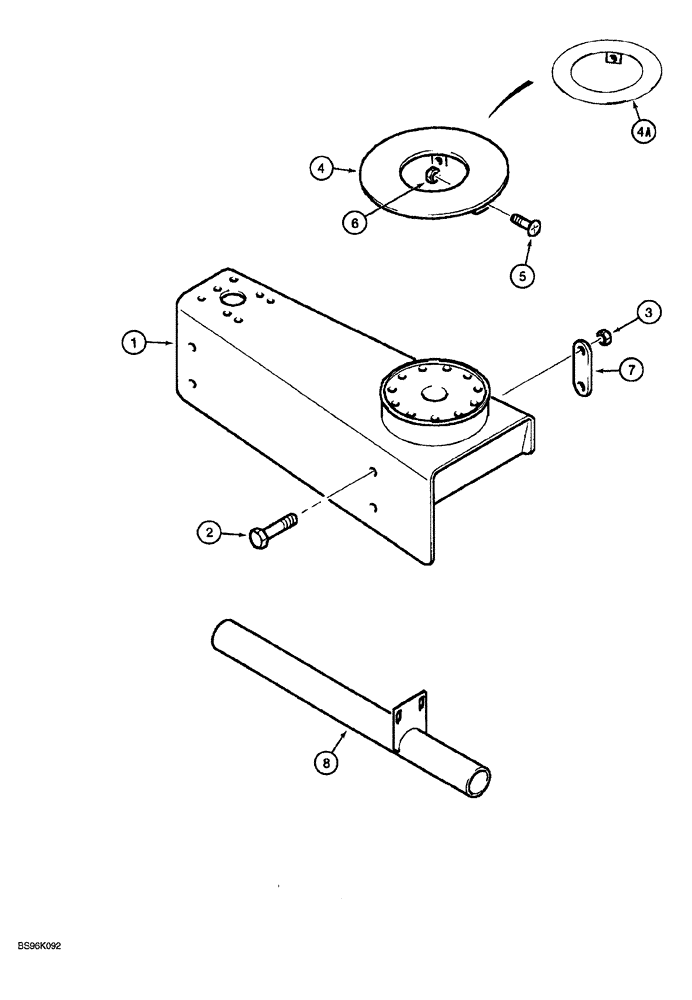

Запчасти Case IH AFS (03-10) - AFS SATELLITE SYSTEM - SPECIAL ANTENNA MOUNTING (IF USED 1644, 1666, 1688 AND 2100 SERIES COMBINES) (55) - ELECTRICAL SYSTEMS

1

226105A1

SUPPORT

MOUNT global positioning antenna, if used

1шт.

2

228534A1

BOLT,Hex, 5/16" - 18 x 2 1/4", Gr 5

hex, special, 5/16 inch NC

4шт.

3

229507A1

SPECIAL NUT

special, 5/16 inch NC

4шт.

4

226194A1

LARGE PLATE

PLATE, LARGE EXTENSION antenna ground plane, 10 inch diameter, if used, see note

1шт.

Two ground plane extensions are included with AFS factory installed models or in field kits. The smaller extension makes a ground plane diameter of 7 inches and the larger extension makes a ground plane diameter of 10 inches. Most geographic areas require the 7 inch ground plane. Some northern areas require the 10 inch ground plane and some southern areas do not require any extension. Check with your dealer or read your installation instructions for which extension to use in your area.

1шт.

4a

226193A1

LARGE PLATE

PLATE, LARGE EXTENSION antenna ground plane, 7 inch diameter, if used, see note

1шт.

Two ground plane extensions are included with AFS factory installed models or in field kits. The smaller extension makes a ground plane diameter of 7 inches and the larger extension makes a ground plane diameter of 10 inches. Most geographic areas require the 7 inch ground plane. Some northern areas require the 10 inch ground plane and some southern areas do not require any extension. Check with your dealer or read your installation instructions for which extension to use in your area.

1шт.

5

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

3шт.

6

231-4144

NUT,1/4"-20, GB

3шт.

7

227989A1

SUPPORT

bolt mount

2шт.

8

241105A2

TUBE

outer assembly, if used

1шт.
