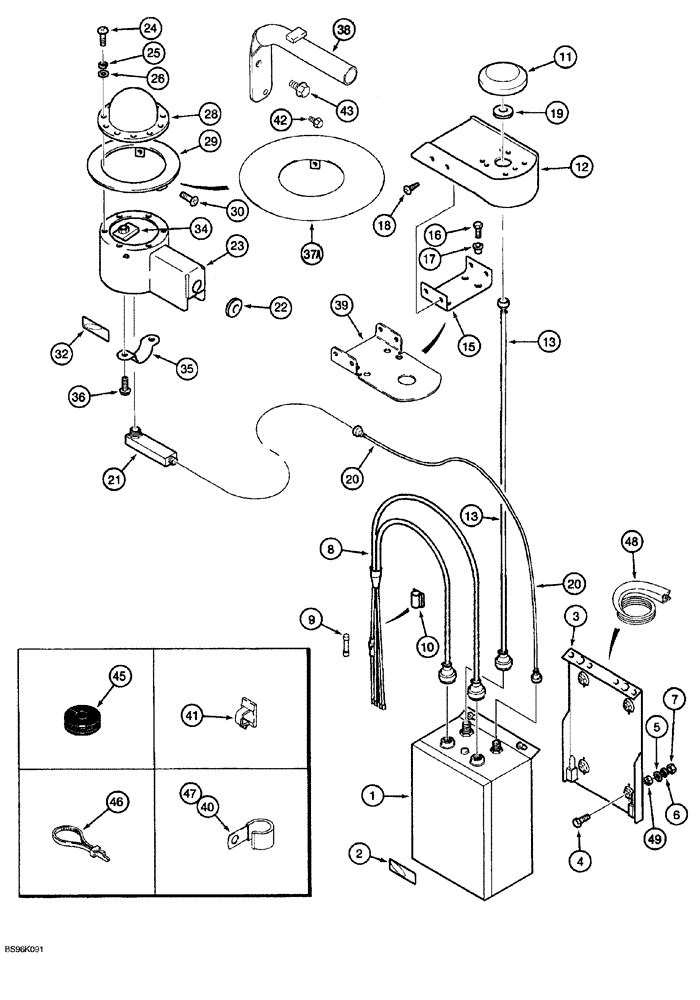

Запчасти Case IH AFS (03-06) - AFS SATELLITE SYSTEM (1644, 1666, 1688 AND 2100 SERIES COMBINES) (55) - ELECTRICAL SYSTEMS

1

226445A3

BOX

TerraStar receiver unit, Includes Ref: 2

1шт.

2

239258A1

DECAL

AFS

1шт.

3

279297A2

SUPPORT

receiver rear

1шт.

4

463-11024

SCREW,Hex Hd, #10-24 x 1 1/2"

machine, hex head, No. 10 NC x 1-1/2 inch

4шт.

5

495-81001

WASHER,5/16"

flat, 3/8 x 1-1/8 x 1/16 inch

4шт.

6

492-11010

LOCK WASHER,#10

4шт.

7

225-14110

NUT,#10-24

4шт.

8

226451A1

CABLE

power I/O, Includes Ref: 9

1шт.

9

223-36

FUSE,2 Amp, Type 3AG

SAG, 2 amp.

3шт.

10

245854A1

CLIP

adhesive

2шт.

245167A1

ANTENNA

ASSEMBLY global positioning system, Includes Ref: 11-14

1шт.

11

226447A1

ANTENNA

global positioning system

1шт.

12

244966A1

SUPPORT

antenna

1шт.

13

226450A2

CABLE

global positioning system

1шт.

14

226455A1

TAPE

vaporwrap, not shown

1шт.

15

244963A2

SUPPORT

base, global positioning system

1шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

17

D135342

ISOLATOR

MOUNT

4шт.

18

1321447C1

SELF-TAP SCREW,Cross Pan Hd, 1/4 -20 x 1/2" OAL

4шт.

19

548262R1

GROMMET

cable, prior to model year 2000

1шт.

19

378194A1

GROMMET

1 x 3/4, model year 2000 and after

1шт.

20

226449A2

CABLE

differential antenna

1шт.

21

226448A1

AMPLIFIER

low noise

1шт.

22

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

Rubber

1шт.

23

244776A1

SUPPORT

MOUNT global positioning antenna

1шт.

24

260-14412

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"

self-tapping, pan Phillips, No. 8-18 x 3/4 inch

6шт.

25

492-11008

LOCK WASHER,#8

6шт.

26

495-21019

WASHER,#8

6шт.

28

226446A1

ANTENNA

differential correction, includes hardware and sealant

1шт.

Two ground plane extensions are included with AFS factory installed models or in field kits. The smaller extension makes a ground plane diameter of 7 inches and the larger extension makes a ground plane diameter of 10 inches. Most geographic areas require the 7 inch ground plane. Some northern areas require the 10 inch ground plane and some southern areas do not require any extension. Check with your dealer or read your installation instructions for which extension to use in your area.

1шт.

30

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

3шт.

31

245854A1

CLIP

adhesive, not shown

4шт.

32

239258A1

DECAL

AFS

1шт.

33

226455A1

TAPE

vaporwrap, not shown

2шт.

34

488837C1

SPRING NUT

speed, 5/16 inch

2шт.

35

244768A1

SUPPORT

STRAP antenna mounting

1шт.

36

121-116

SERRATED BOLT,Hex, 5/16" - 18 x 1"

2шт.

37

226455A1

TAPE

vaporwrap, not shown

2шт.

37a

226194A1

LARGE PLATE

PLATE, LARGE EXTENSION antenna ground plane, 10 inch diameter, if used, see note

1шт.

Two ground plane extensions are included with AFS factory installed models or in field kits. The smaller extension makes a ground plane diameter of 7 inches and the larger extension makes a ground plane diameter of 10 inches. Most geographic areas require the 7 inch ground plane. Some northern areas require the 10 inch ground plane and some southern areas do not require any extension. Check with your dealer or read your installation instructions for which extension to use in your area.

1шт.

38

246153A1

TUBE

differential correction antenna

1шт.

Used on 1644, 1666, and 1688 combines.

1шт.

39

246018A1

LARGE PLATE

PLATE, LARGE GPS mount, lower

1шт.

Used on 1644, 1666, and 1688 combines.

1шт.

40

516-22158

CLAMP,J, 11/16" Insul, 5/16" Bolt

CLAMP J-type, 5/8 inch ID

4шт.

Used on 1644, 1666, and 1688 combines.

1шт.

41

169850C2

CABLE CLIP

Retaining, harness

2шт.

Used on 1644, 1666, and 1688 combines.

1шт.

42

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

Used on 1644, 1666, and 1688 combines.

1шт.

43

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

BOLT hex serrated flange, 1/2 NC x 1 inch

1шт.

Used on 1644, 1666, and 1688 combines.

1шт.

44

237479A1

CABLE

GPS extension, not shown

1шт.

Used on 1644, 1666, and 1688 combines.

1шт.

45

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

rubber, 1/2 inch ID, cab access hole

1шт.

Used on 1644, 1666, and 1688 combines.

1шт.

46

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

50шт.

Used on 1644, 1666, and 1688 combines.

1шт.

47

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

11шт.

Used on 1644, 1666, and 1688 combines.

1шт.

48

1327979C1

MOLDING

TRIM edge, 152 mm (6 inch) long, cut from 1330108CX bulk trim, receiver mounting plate, see below

1шт.

Used on 1644, 1666, and 1688 combines.

1шт.

49

234846A1

SPACER

GPS receiver mount

4шт.

Used on 1644, 1666, and 1688 combines.

1шт.

50

249547A1

CABLE

beacon receiver adapter, not shown

1шт.

Used on 1644, 1666, and 1688 combines.

1шт.

1330108CX

SEAL,304.8mm L

TRIM edge, bulk, 15240 mm (600 inch) long

1шт.
